Webserver

In addition to other GHL connectivity options GHL devices with WiFi or LAN are also accessible via a built-in local webserver.

The inclusion of a webserver provides users with local access to their device and offers an additional point of connectivity, safety and performance.

With GHL devices, you will always have a point of connection. Communication with compatible devices can be made quickly and easily without the involvement of remote servers.

ProfiLux 3.1

The ProfiLux 3 built-in webserver (only models with built-in LAN: ProfiLux 3, 3 eX, 3.1N / T and 3.1N / T eX) provides the following functions:

  • Starting actions (water changes, feeding pause, maintenance, storm)
  • Show current states and values
  • Show measured values graphically
  • Manual switching of sockets and lighting
  • Adjustment of sensor setpoints. For any further functions GHL Control Center is required.
  • Starting from ProfiLux firmware 5.16
  • English and German

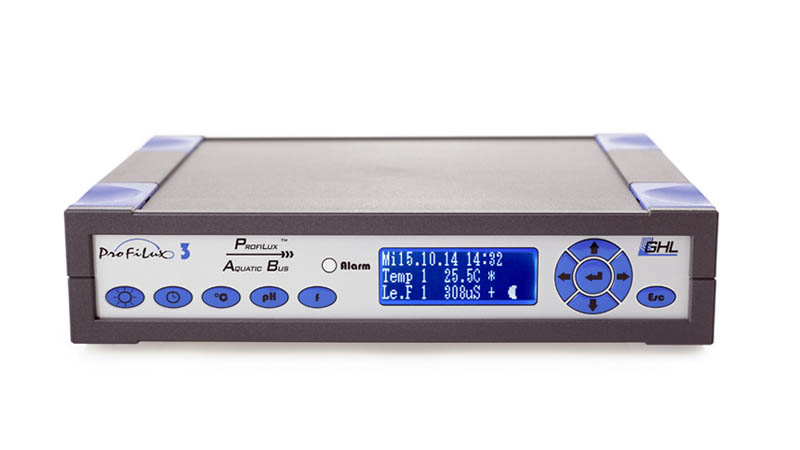

ProfiLux 3.1

Screenshots

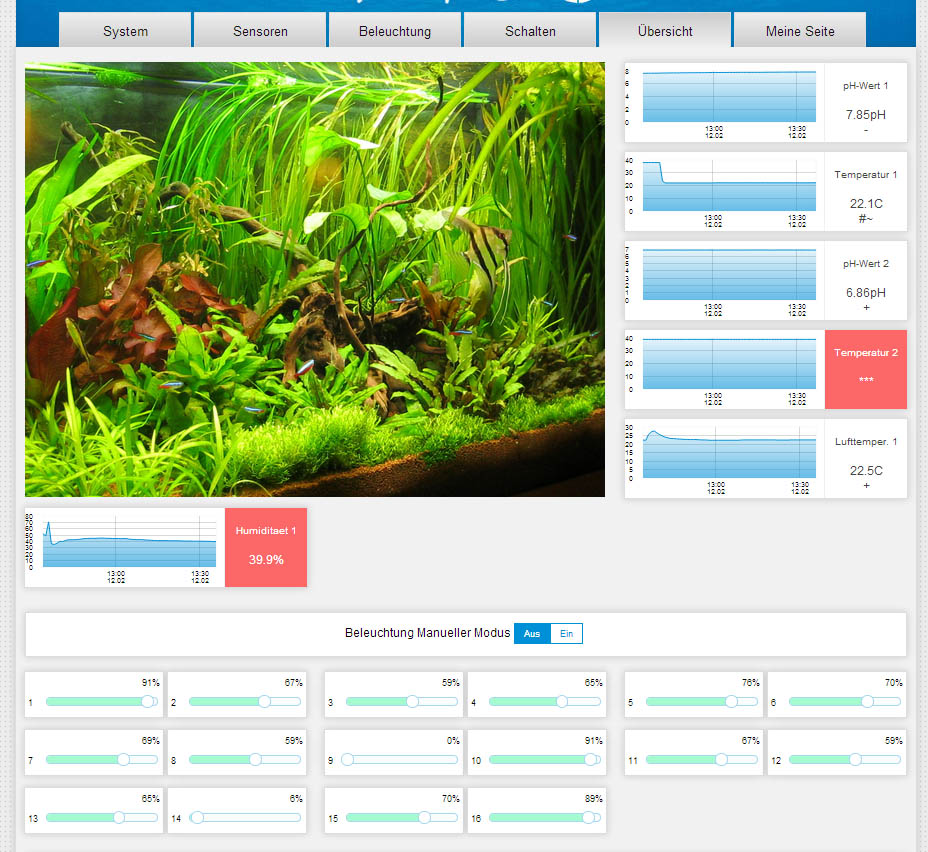

Webserver Overview

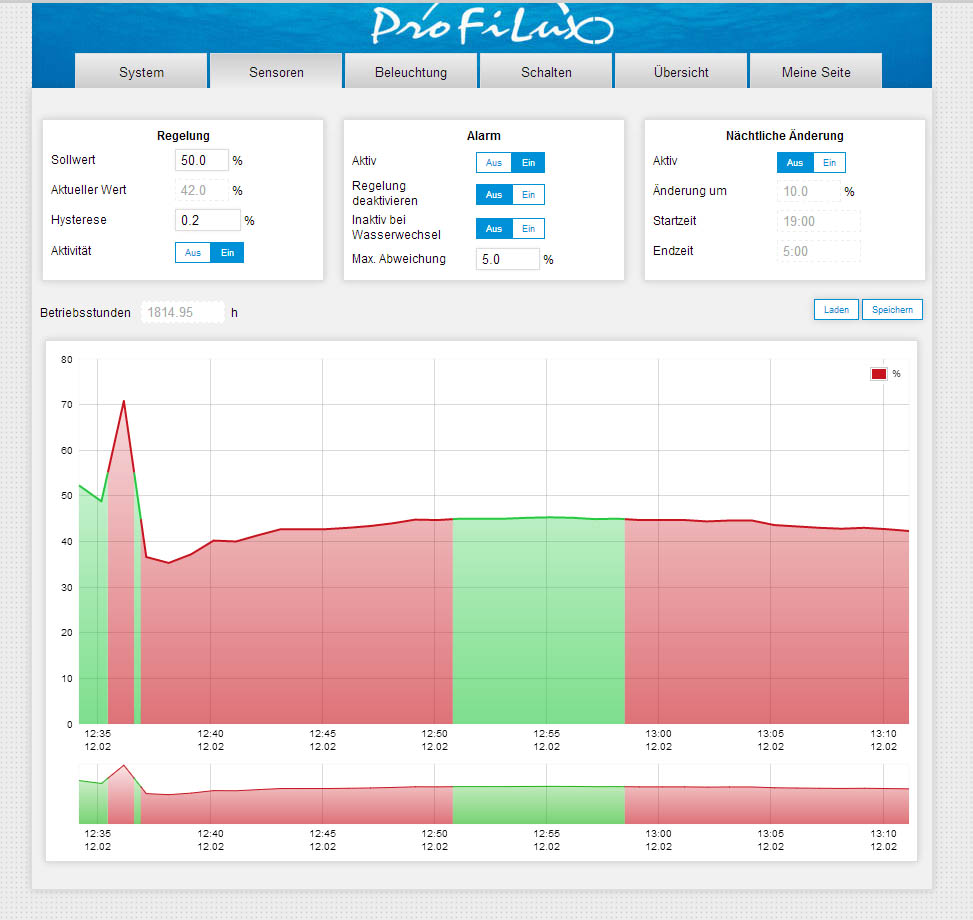

Webserver Sensoren

ProfiLux 4

The ProfiLux 4 built-in webserver provides the following functions:

  • Starting actions (water changes, feeding pause, maintenance, storm)
  • Show current states and values
  • Edit settings
  • Show measured values graphically
  • Manual switching of sockets and lighting
  • For any further functions GHL Control Center is required.
  • English and German

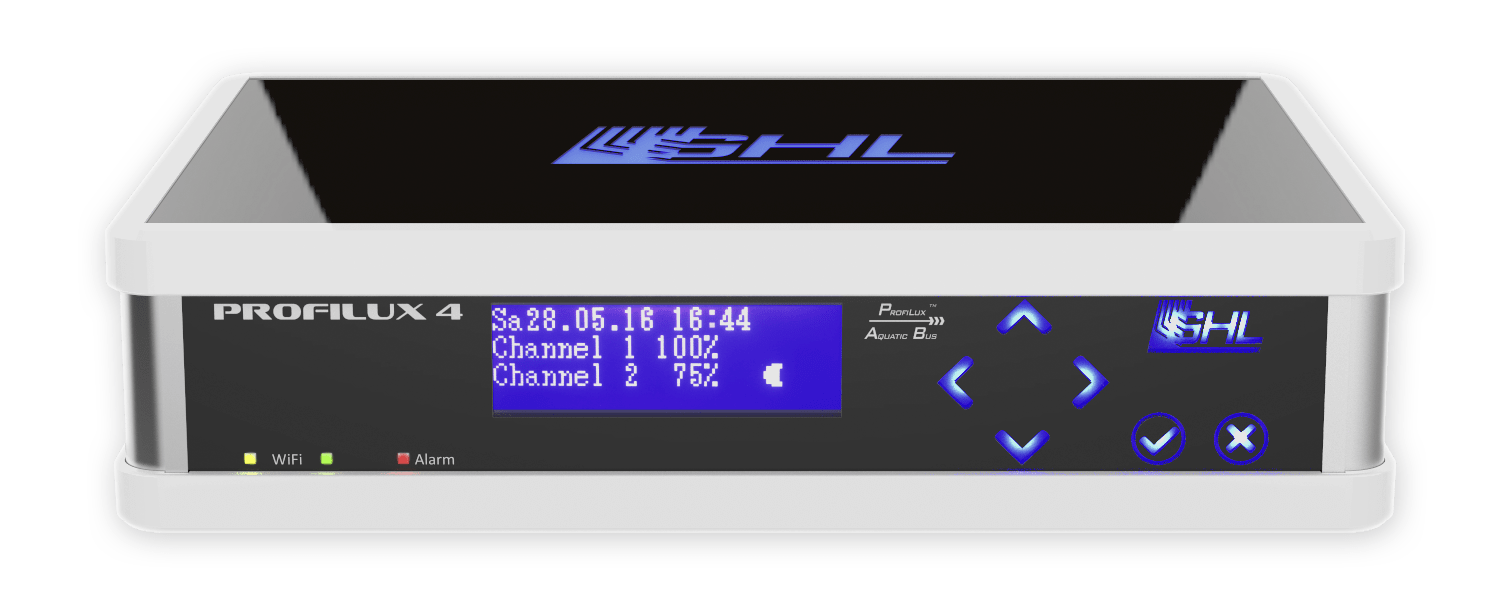

ProfiLux 4, black

Screenshots

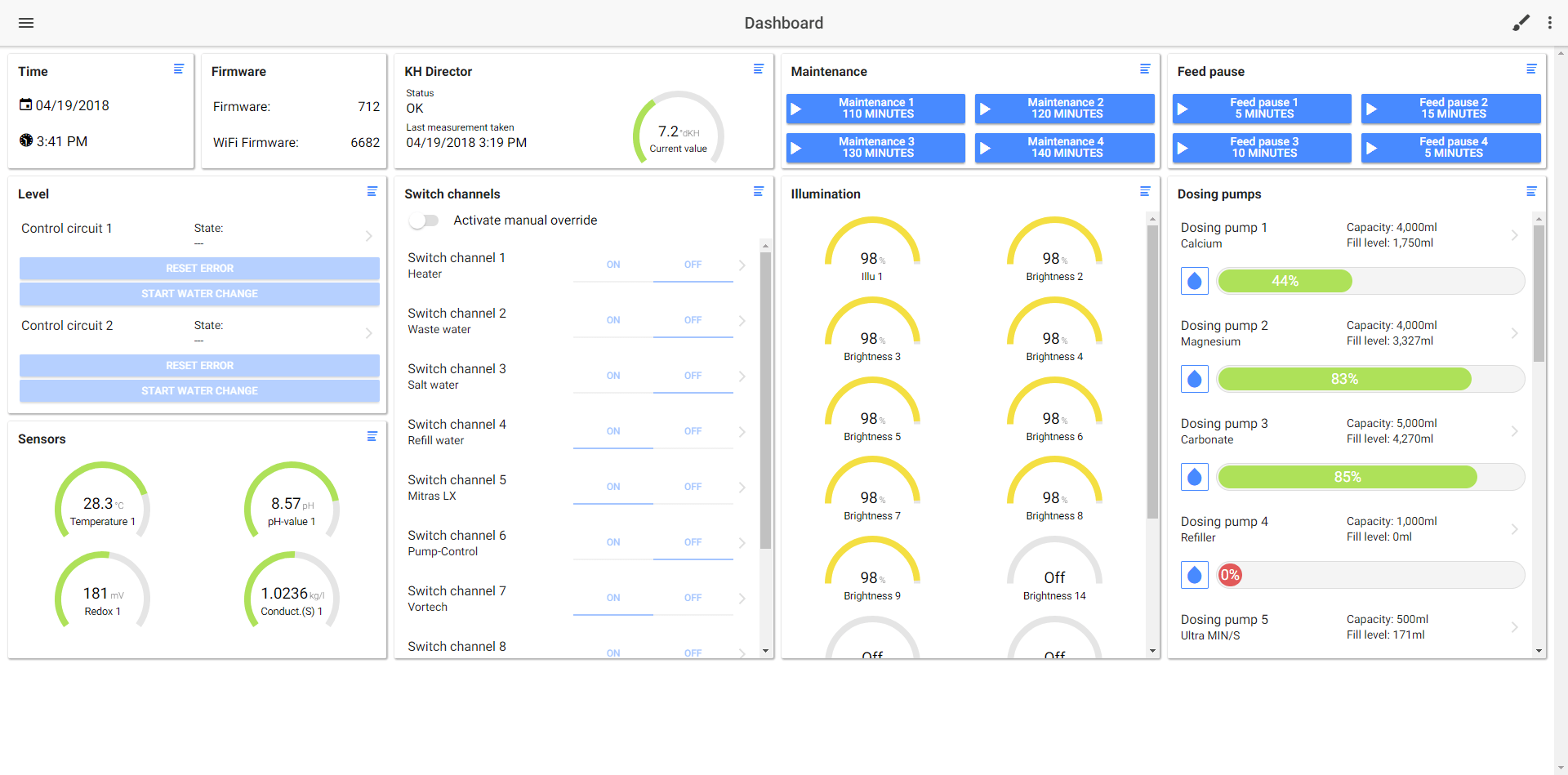

GHL Webserver P4 Dashboard

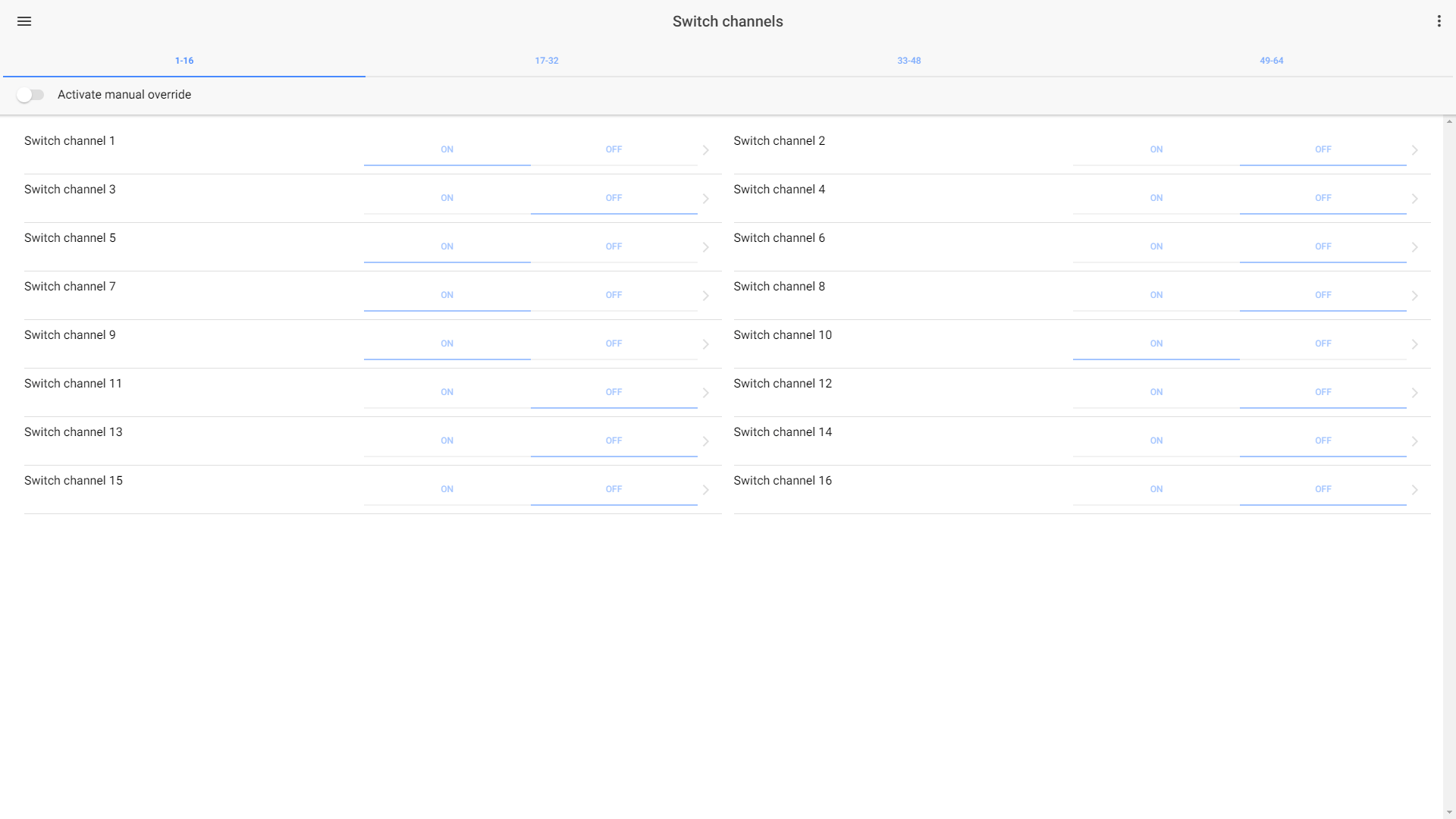

GHL Webserver P4, switch channels overview

Mitras LX7

The Mitras LX7 built-in webserver provides the following functions:

  • Starting actions (maintenance, storm)
  • Show current states and values
  • Edit settings
  • For any further functions GHL Control Center is required.
  • English and German

Mitras LX7 black & silver-white

Screenshots

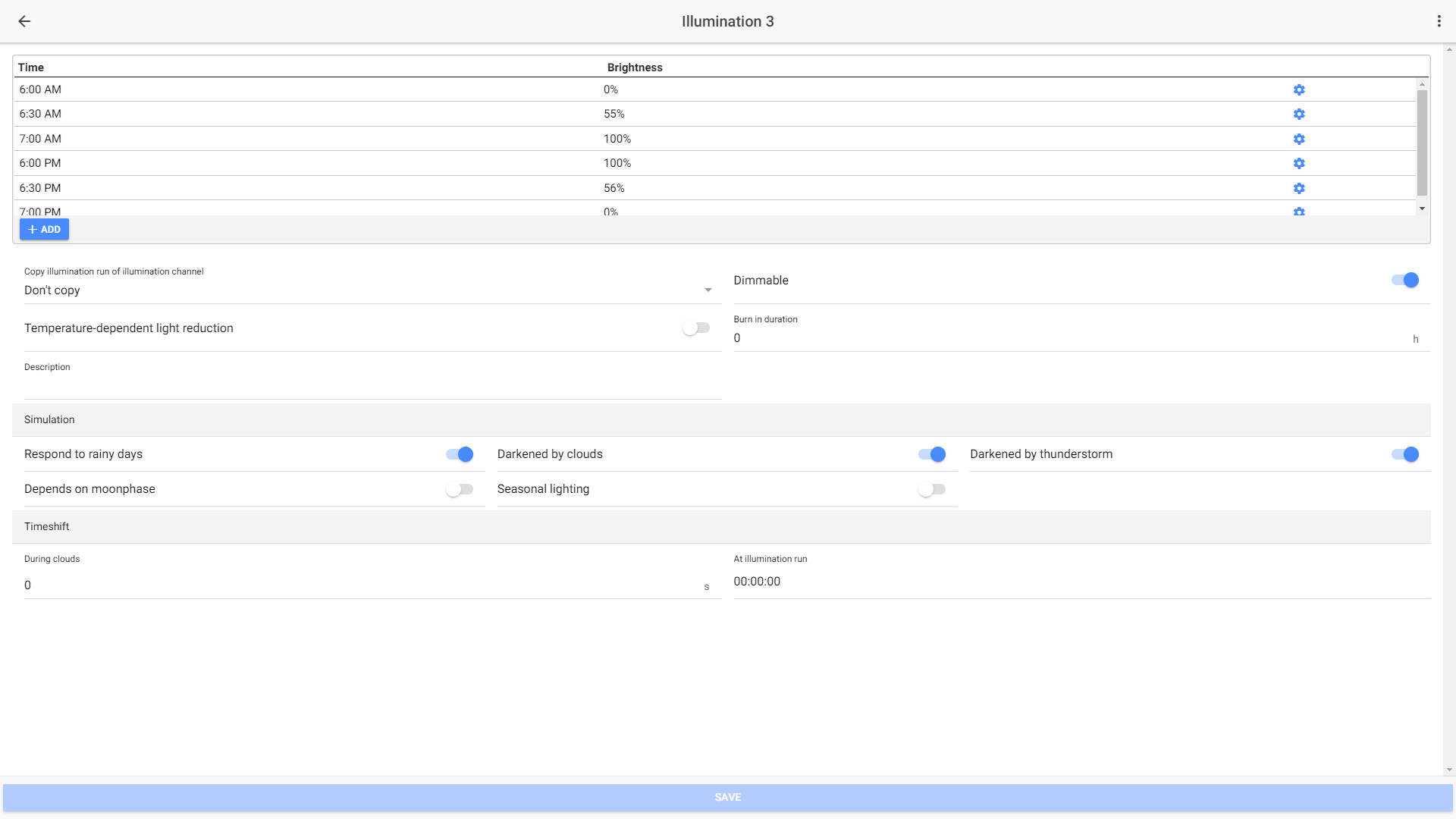

GHL Webserver Mitras LX7, Illumination

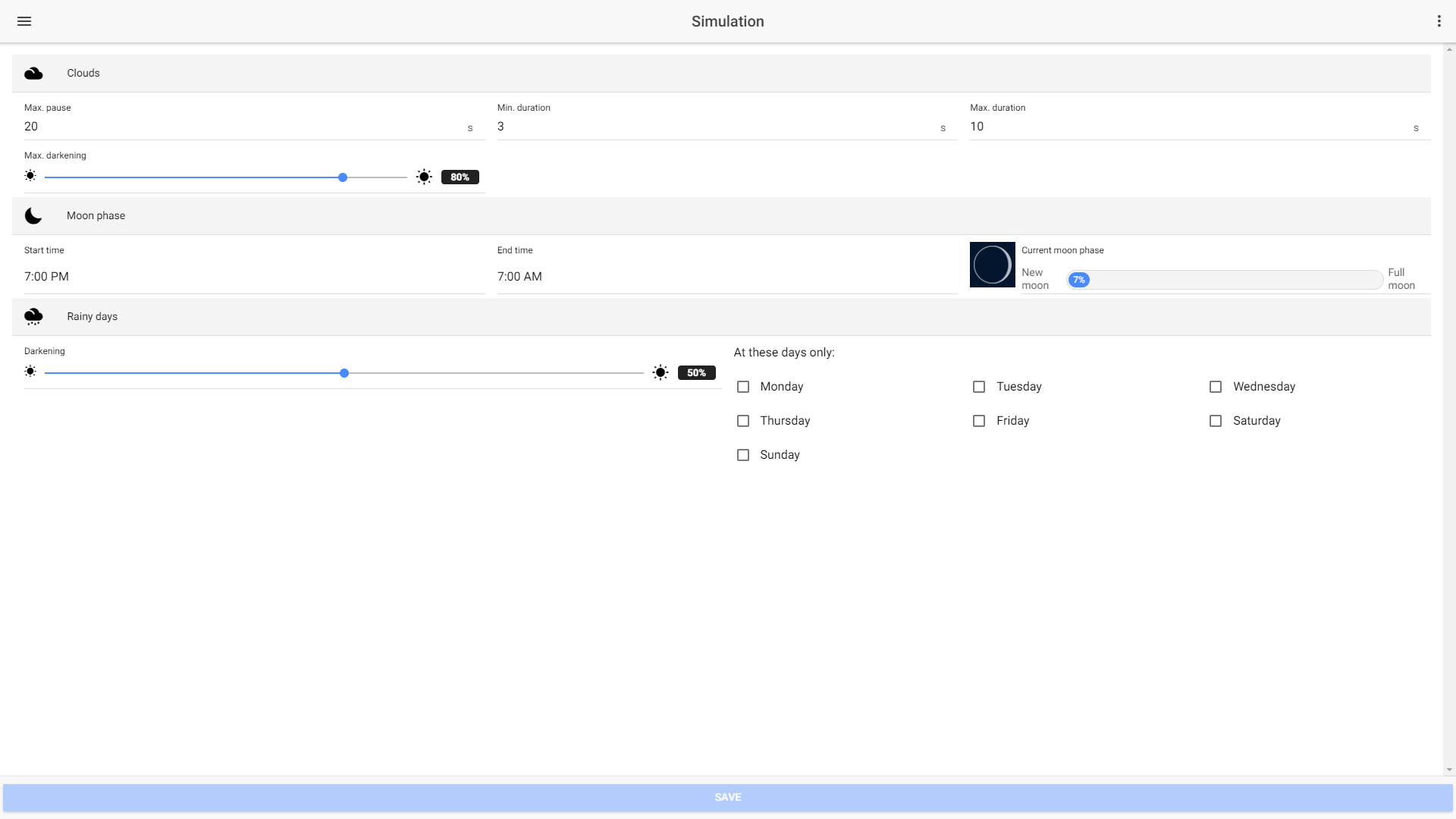

GHL Webserver Mitras LX7, Simulation
