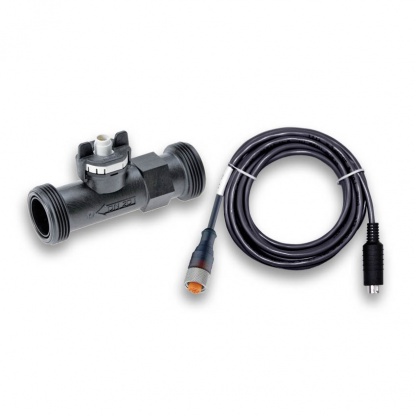

Flow Sensor 2000 l/h

$114.90

Flow sensor measurement range: 26gph – 528gph
Nominal width DN10, 2x G 3/4″ outside thread, without connection adapter
incl. 2m cable Mini-DIN M12

SKU: PL-0866 Category:

Description

Keep track of your pump and filter performance.

With our flow sensors, you can control the flow rate of your pump and filter.

If flow deviations are detected, ProfiLux can set off an alarm and notify you.

  • Measures the flow rate of a circulation pump or external filter.
  • Connects to the level input of ProfiLux.
  • Low maintenance and robust; measurement is made without dirt-sensitive moving parts.
  • Incl. PS / 2 M12 cable (2 m) for the connection to ProfiLux.
  • Flow Sensor 2000 l/h = 10mm (~3/8″ ID)
  • Flow measurement range: 26gph – 528gph

Please note that the delivery does not include connecting adapters for tubing or tubes.

Additional information

Weight 0.18 kg

About GHL Sensors

All GHL measurement electrodes are made of the highest laboratory grade. They are durable, low maintenance, and matched to the highest German quality standards. Most models feature extra-long connection cables (3 m), which are specially made for use in the aquarium hobby. All sensors are galvanically isolated and can therefore easily be used in parallel in any combination. Please note the below explanations of warranty and guarantee of sensors.

Calibration can be carried out by our menu-guided system in the ProfiLux Controller.

In the section, “sensor accessories” we also offer various sensor holders, calibration fluids, cable extensions and maintenance kits.

The following sensors are available:

  • pH, Redox, Conductivity, Oxygen Sensors
  • Niveau Sensors
  • Water Temperature, Air Temperature and Humidity Sensors
  • Flow Sensors
  • Leakage Sensors und Leakage Interface
  • Sensor Accessories

Warranty and Limited Guarantee for Sensors

Sensors are items that wear out during normal use. The life span of a sensor is dependent on the environment and operation conditions. Due to many possible different circumstances, it is not possible to make an exact prediction about the lifespan. For electrochemical sensors, a life span of 6 to 24 months is common. Electrical and mechanical sensors can operate up to several years with normal care.

Therefore the legal warranty is not valid for these kinds of parts. Instead, GHL offers the following limited warranty for sensors:

Electrical sensors and mechanical sensors (level-sensor, temperature-sensor, conductivity-sensor, humidity-sensor) will be replaced in the first 12 months after purchase.) *

Electrochemical sensors (pH-electrode, redox-electrode, oxygen-sensor) will be replaced in the first 6 months after purchase.) *

*Valid from date of the original invoice, copy of original invoice required. Appropriate and intended use, correct maintenance, and care are required. We offer no replacements for broken glass, damaged cables or connectors, or other mechanical damages.
