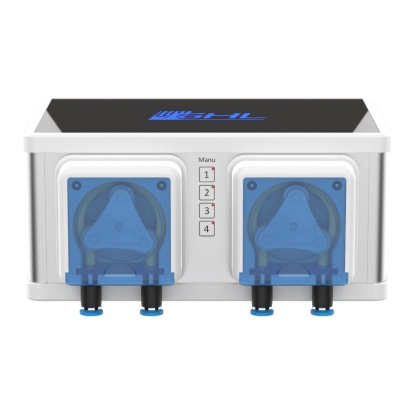

The GHL Doser 2.2 Maxi, with a flow rate of up to 320 ml/minute, is ideal for automatic water changes, level control, and dosing in larger quantities. Due to the precise 24 V stepper motors, micro-doses of 0.1 mL are also possible.
Robust mechanics and highly efficient stepper motors even allow continuous operation at a constant speed, e.g., for operating reactors.
Its 24 V stepper motors allow precise dosing. The connection can be made via Wi-Fi or USB.
Since Extension Dosers can be connected to the GHL Doser 2.2 Maxi SA, you can set up a dosing system that is expandable to a total of 16 pumps. The ProfiLux Aquatic Bus provides reliable and interference-free data transfer, even over long distances up to 100 m (300 ft.).
Technical specifications:
Color: Black or white Dimensions: 8.66″ x 5.91″ x 4″ (without pumps)
*** EASY TO SETUP *** Completing the initial setup of a GHL device takes no more than 5 minutes with our in-app wizard!
Additional information
Weight
2.87 kg
Product color
Black, Patriotic, White
About GHL Doser 2.2 Maxi
Thanks to the high-quality technology inside the compactandmodernGHLDoser2.2 Maxi, itprovides precise and straightforward dosing and includes many more features.With the freeGHLConnect Apporthecloud servicemyGHL, you can accessyourDoser from anywhere in the world tostartdispensing programs orcheck the levels of your metering liquids.
Its 24V stepper motors allow precise dosing even at the smallest flow rates (0.1 mL). Operate the device comfortably from your smartphone oryour PC. The connectionis possible viaWiFi andUSB.
TheLED-illuminatedGHLLogoin the housingserves as astatus indicator. It displays the condition of your aquarium by displaying various colors and tells you when something requires your attention.
TheGHLDoser2.2 Maxiisavailable as a Stand Alone Unit and an Extention Unit.
GHL Doser 2.2 Maxi Stand Alone:
The GHL Doser 2.2 Maxi Stand Alone has a controller and works independently.

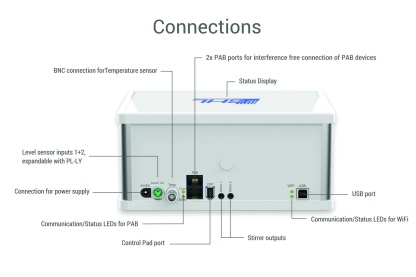

It includes two PAB ports for connecting additional GHL Doser 2.2 Maxi EXT or other PAB devices via ProfiLux Aquatic Bus.
PAB is an interference-free CAN-Bus-System that allows for highly secure data transfer between all PAB devices. The range can be up to 100 m (300 FT).
PAB cables are not included and must be purchased.
OneGHLDoser2.2 Maxi SA can control additional GHL EXT Dosers (GHL Doser 2.2 EXT or GHL Doser 2.2 Maxi EXT) and can be extended to a dosing system with a total of 16 pumps.
With a ProfiLux as a controller, you can control up to 32 pumps.
GHL Doser Maxi 2.2 EXT:
The GHL Doser 2.2 Maxi EXT needs to be controlled via a ProfiLux Controller or a GHL Doser 2.2 Maxi Stand Alone.
Features
Milliliter precision and automated dispensing of liquids, such as
Fertilizers
Trace Elements
Balling Salts
Lime Water
Liquid Feed
Integrated evaporated water refill (Auto Top–Off)
Water exchange
Expandable to 16 pumps respectively, metering channels
Precise pumps with heavy-duty stepper motors
The pumps are suited for continuous operation
Stainless steel motor shafts (also suitable for the dosage of Iodine)
Sturdy construction, housingis made of aluminumanddurable plastic
Chemical-resistant tubing
Manual operation of each pump is possible
The pumps are suited for continuous operation
Pumps can be retrofitted
Individual parts can be replaced (tubes, pump head, motor)
24V stepper motors allow microdoses of 0.1 mL
Up to 150 doses per day
Easily choose dosing times via GHL Connect App and software (GHL Control Center).
Automatically: Up to 150 individual doses per day are automatically distributed
Individually: Up to 8 doses per day, individually set
Each pump can be set separately
Conveying capacity and dosing: Min. 0.5 ml / minute, Max. Continuous 160 ml / minute, Max. Volumetric 320 ml / minute
precisely adjustable to 0.1 mL
Level indicator
WiFi and USB
Alarm function
Large LED status indicator
Status LED for pumps
Convenient to program via APP, cloud, web server, and free PC software
The LED-backlit GHL Logo in the enclosure lid is a status indicator. Various colors show you, at a glance, the condition of your system.
Each pump can be operated manually via the push buttons on the front panel. This allows you to quickly post-dose, deflate the tube vent, or suction liquids.
Ample accessories are available.
