GHL Doser 3, Black and White showing an image with the two

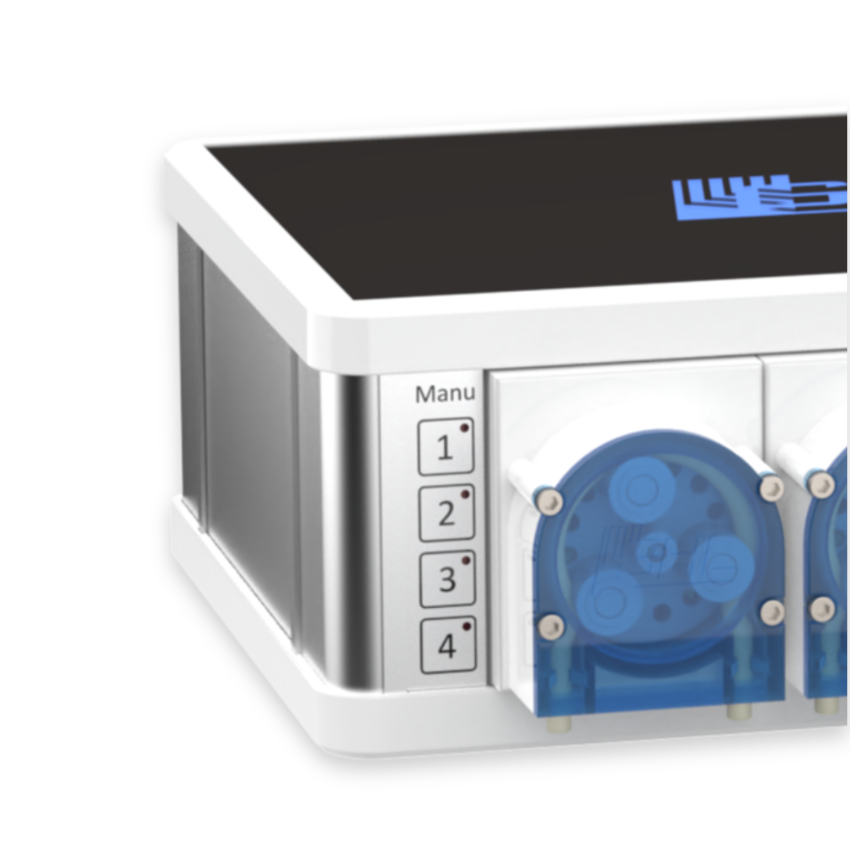

Easy manual dosing on GHL Doser 3
Detailed Doser 3 pump
Doser 2.2 EXT rear view
GHL Doser 3 Dosing System

GHL Doser 3 EXT

$514.90

Extension dosing pump unit, 4 peristaltic pumps with planetary gear and stepper motors, with country-specific power supply, 50 cm PAB cable

Wishlist
Category: SKU: PL-2354-VAR

Description

Not a stand-alone unit.

The GHL Doser 3 EXT must be controlled via a ProfiLux Controller (Model 4 or higher) or a GHL Doser 2.x / 3 (Standard/Maxi) Stand Alone.

Equipped with new precision-engineered 24V stepper motors featuring planetary gear technology, the Doser 3 EXT delivers exceptional accuracy, even for the smallest dosing volumes (0.1 mL).

Expandable to a dosing system:

  • GHL Doser Stand Alone + up to 3x EXT Doser – up to 16 pumps
  • ProfiLux Controller + up to 8x EXT Doser – up to 32 pumps

Technical specifications:

The flowrates and accurate dosing volumes are adjustable up to 0,1 mL, approximately 8 mL/minute – 80 mL/minute.

Additional information

Weight 1.98 kg
Dimensions N/A
Color

White, Black
Country Version

DE, Schuko, UK, CH, AUS, USA

Scope of delivery

These items are included:

  • Dosing pump unit EXT (black or white)
  • tubing adapters
  • power supply
  • 50 cm PAB cable

Product dimensions

L × W × H: 220 x 150 x 75 mm (without pumps)

Warranty

GHL provides a 24-month limited warranty against all processing and material defects. Warranty period begins at the date of purchase.
