Mitras LX 7X06 IL

$1249.90

High-power LED pendant light, 6 LED clusters, marine, aquaculture and freshwater versions.

SKU: N/A Category:

Description

Discover the Ultimate in Durability: The Mitras LX7 IL Series

If you demand uncompromising reliability in challenging conditions, look no further than the Mitras LX7 IL series. Designed with an IP67 protection class, it stands strong against high humidity, splash water, and even brief, accidental immersion.

Engineered for excellence, the Mitras LX7 IL uses a robust heat sink for passive cooling, eliminating the need for fans. This ensures seamless operation with minimal maintenance.

Its exceptional performance and advanced features make the Mitras LX7 IL the perfect choice for large aquariums, coral farming, aquaculture, and even the most discerning hobby aquarist. Elevate your aquatic setup with the power and dependability of the Mitras LX7 IL series.

Developed and manufactured in Germany, the luminaires are characterized by the latest in LED technology and is incredibly efficient and durable. Compared to conventional lighting technology, this luminaire can save more than 50% energy costs per year.

The matching light spectrum for every application

Mitras LX7 IL is available in different models with optimized light spectrums for any application.

h
  • For Freshwater – balanced full spectrum from royal blue to hyper red for perfect plant growth and brilliant fish colors
  • Diagram shows baseline spectrum with all LEDs at 100%
  • 1000 K – 18000 K adjustment range of color temperature
  • 6800 K center color temperature
  • 9 separately dimmable colors, LEDs within each cluster:
    2 x cold white, 2 x natural white, 2 x cool white, 1 x blue, 1 x royal blue, 1 x true green, 1 x yellow, 1 x red, 1 x hyper red

LX72xx IL Marine water

h
  • For Marine Water – a complete spectrum from UVA to hyper red produces amazing colors and growth
  • Diagram shows baseline spectrum with all LEDs at 100%
  • 1000 K – 24000 K adjustment range of color temperature
  • 10000 K center color temperature
  • 9 separately dimmable colors, LEDs within each cluster:
    2 x blue, 2 x cool white, 2 x royal blue, 1 x true green, 1 x cold white, 1 x blue-white, 1 x hyper red, 1 x hyper violet, 1 x UVA

LX75xx IL Coral Pop

h
  • For Marine Water – with lots of blue and UVA over a wide wavelength range optimized for stunning fluorescence and perfect growth of your corals

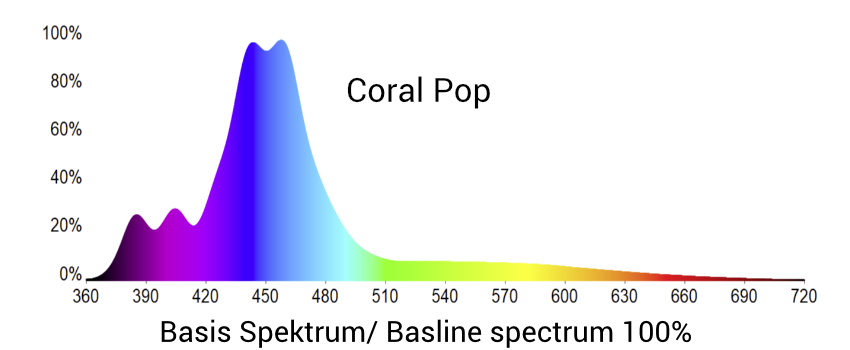

  • Diagram shows baseline spectrum with all LEDs at 100%
  • 1000 K – 30000 K adjustment range of color temperature
  • 14000 K center color temperature
  • 9 separately dimmable colors, LEDs within each cluster:
    2 x blue, 2 x royal blue, 2 x deep blue, 1x hyper violet, 1x deep violet, 1x UVA, 1 x cold white, 1 x cool white, 1 x daylight white

LX74xx IL Aquaculture

h
  • For Aquaculture – special spectrum for breeding
  • Diagram shows baseline spectrum with all LEDs at 100%
  • 1000 K – 30000 K adjustment range of color temperature
  • 11000 K center color temperature
  • 9 separately dimmable colors, LEDs within each cluster:
    2 x blue, 2 x natural white, 2 x cool white, 1 x red, 1 x true green, 1 x yellow, 1x hyper red, 1x royal blue, 1 x UVA
Lamp Operation ModeMax. Power ConsumptionRecommended Water Volume
High Efficiency Mode at 100%165 Wmax. 310 Liter/ 68 Gallons
High Output Mode at 100%250 Wmax. 440 Liter/ 97 Gallons
LuminairePower Supply
Dimensions (L x W x H)420 mm x 230 mm x 60 mm 16.5" x 9.1" x 2.36"245 mm x 68 mm x 40 mm / 9.6" x 2.7" x 1.6"
Weight5.1 kg / 11.2 lb1.5 kg / 3.3 lb
Cable lengthca. 3 m / 118.11" to power supplyabout 2 m / 78.74" to wall outlet

Additional information

Weight N/A
Mitras LX7 IL Type

LX 7006 IL Freshwater version, LX 7206 IL Marine water version, LX 7506 IL Coral Pop version, LX 7406 IL Aquaculture version

Innovative LED Clusters

Mitras LX7 Cluster

Our Reflectors vs Most Current LED Lenses

When it comes to maintaining light intensity for deep tanks, most current LED Lenses fall short. For tall and short tanks, these type of lens may even cause a “Disco Effect” due to the way multiple LED light colors are blended by the lenses. Our metal coated high performance LED reflector mimics the reflective performance of parabolic Metal Halide reflectors reflecting 99% of light. This type of reflector design maximizes light efficiency, increases light spread, optimally blends LED colors, and minimizes light loss the deeper light penetrates.

Future-proof: Interchangeable LED Clusters

All Mitras Luminaires are designed with upgradeability in mind. Each type of Mitras can be equipped with any matching LED-cluster type (mixing LX 6 and LX 7 clusters is not possible).
This type of technology gives you the flexibility to swap LED clusters and benefit from the latest technological developments.

For example, an LX 7000 can be converted to an LX 7200 with a simple cluster swap.

All Mitras LX models are equipped with the necessary hardware to support different LED-cluster-types; a firmware update may be required. With GHL Control Center, new cluster configurations can be easily activated.

No Disturbing “Disco Effect”

Unlike many other LED fixtures, Mitras LX lamps do not create an unsightly and disturbing “disco effect”. This effect is often noted as seeing obvious color spots on the substrate which tend to move side-to-side during water surface agitation. Our metal coated high performance LED reflector mimics the reflective performance of parabolic Metal Halide reflectors by perfectly blending all LED channels. In a single Mitras LX cluster, all 12 LEDs are housed on an area of just 25 mm x 25 mm – this narrow arrangement and special reflector design helps achieve perfect light mixing.

Support

Do you have questions or need technical support?

We’re here to help. First begin by following a few tips:

You have questions about the operation or for system setup?

  • A good start is visiting our Knowledge Base and our FAQs.
  • Download our manuals and tutorials. In most cases, the answers to your questions are answered in there. You´ll find them listed in our download center.
  • Check out our extensive videos.

Still have questions?

  • Take advantage of our extensive GHL support forum. Here, you will find topics and questions that have already been answered by our support team and/or customers. Tips and suggestions can also be found here. If this does not help, then please ask your question there. You will have direct contact with the GHL team and to many users, who can quickly help you.

Do you have a complaint or a defective product?

  • Your first contact should always be the dealer from whom you purchased the products.
  • In case you bought directly from GHL please contact us directly via our ticket system.

Not found what your are looking for?

Warranty

GHL provides a 24-month limited warranty against all processing and material defects. Warranty period begins at the date of purchase.
