Extreme light output and suitable for harsh conditions: Waterproof ( according to IP67), solely passively cooled and 250W. The Mitras® LX7 IL series is an ultra-bright LED full spectrum light and brings natural brilliant colors (CRI >95), uniform illumination and radiant brightness to your aquarium. The unparalleled high performance and photosynthetic efficiency are unmatched on the market.
Discover the Ultimate in Durability: The Mitras LX7 IL Series
If you demand uncompromising reliability in challenging conditions, look no further than the Mitras LX7 IL series. Designed with an IP67 protection class, it stands strong against high humidity, splash water, and even brief, accidental immersion.
Engineered for excellence, the Mitras LX7 IL uses a robust heat sink for passive cooling, eliminating the need for fans. This ensures seamless operation with minimal maintenance.
Its exceptional performance and advanced features make the Mitras LX7 IL the perfect choice for large aquariums, coral farming, aquaculture, and even the most discerning hobby aquarist. Elevate your aquatic setup with the power and dependability of the Mitras LX7 IL series.
Developed and manufactured in Germany, the luminaires are characterized by the latest in LED technology and is incredibly efficient and durable. Compared to conventional lighting technology, this luminaire can save more than 50% energy costs per year.
Experience Your corals in fantastic colors
Mitras LX7 IL is One of a Kind - Here´s Why
Outstanding Light Performance
Our first-class product design, technical know-how, and extremely careful selection and assembly of the LEDs ensure outstanding illumination performance.
Mitras LX7 provides the ideal light spectra for marine and freshwater aquariums. Our full-spectrum luminaire uniquely mixes light to provide plants and corals with high photosynthetic efficiency which promote the lush growth of plants and corals.
Graphic above shows typical PAR measurements for LX7206:
- Area: 135 x 93 cm (53.1″ x 36.6″)
- Distance: 30 cm (12″)
Instead of using LED lenses that cause light loss, we use special, metal-coated high-performance reflectors made from the same materials used for space technology to maximize light efficiency, increase light spread, optimally blend LED colors, and minimize light loss. Our reflector design mimics the reflective performance of Metal Halide reflectors and reflect 99% of light. This allows for maximum light output and significantly increased light penetration, even in depth.

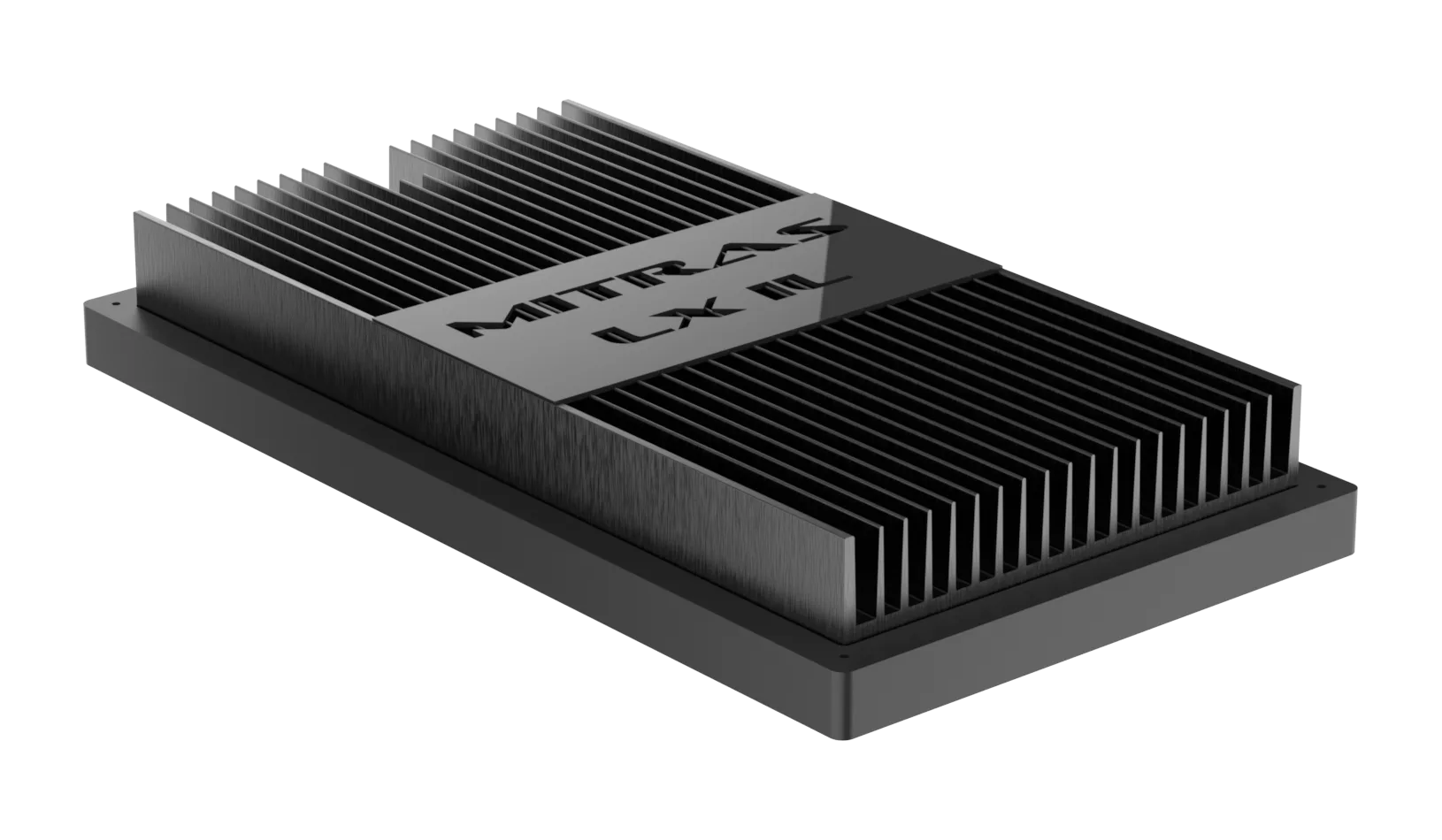

The very large and optimally designed aluminum heat sink with reliable overheating protection ensures maximum luminosity of the LEDs and a particularly long service life (>80,000 operating hours).
- Passive cooling through generously dimensioned solid aluminium heat sink with seawater-resistant anodized coating in accordance with DIN 81249-1.
- Microprocessor-controlled automatic brightness reduction if the luminaire temperature is too high: If the temperature in the luminaire continues to rise despite maximum cooling, e.g. due to an increased ambient temperature, the brightness is slowly and continuously reduced.
This ensures optimum operating conditions for the electronics and LEDs at all times.
Multi-Channel Illumination Control
With the integrated lighting control, you can conveniently adjust the light output as well as the light spectrum in a wide range exactly as needed and save it as an illumination project of your own.
Very fine Dimming by GHL Perfect Dimming Technology® with over 4000 dimming levels and a dimming ratio of 3000: 1 per light channel (color).
All 9 LED–channels are separately dimmable in up to 4000 steps. In addition to the variable light spectrum, a variety of functions can also be accomplished:
- Sunrise and sunset (“East to West”-Simulation) over a single or several luminaires
- Cloud simulation (also “gliding” over several lamps)
- Seasonal Lighting >Learn More
- Thunderstorm simulation
- Calendrical lunar-cycle simulation
- Rainy days
The professional and free PC operating software GHL Control Center (GCC) allows you to conveniently operate and configure your Mitras® LX7 with the PC.
With GCC, you can easily create your desired illumination program. Light color and illumination intensity can be programmed to vary over the course of the day.
You can either just take over one of the existing lighting projects for your luminaire, or create your own project from scratch.
User-Friendly Operation
The operation of the luminaire is simple and user-friendly. Operate the LX7 IL via GHL Connect (App, Webserver, PC, or cloud (myGHL).
Thanks to the integrated control and the built-in radio module, each luminaire can be used in different ways:
- As Standalone
- As Master: controls one or several other Mitras luminaires
- As Slave: is controlled by a master (other Mitras or ProfiLux)
To control Mitras through a ProfiLux controller, the ProfiLux Wireless Interface (PLM PWC Expansioncard) is required (not included with Mitras LX).
Connect the Mitras LX via the cloud (myGHL), your smartphone, or your computer – built-in WiFi and USB offers you all the connection options you need.
For communication betweeen multiple Mitras LX (e.g. in Master/Slave-mode), the Mitras LX includes a second RF module which works independently from WiFi. Potential home network problems will not affect the Mitras LX, neither will the internal Mitras LX traffic stress the network.
Mitras LX7 IL Features
- Fast 32 Bit ARM microcontroller with enough reserves for future software extensions.
- Efficient power supply with universal AC input (90 V – 264 V), protection class IP 67, with all relevant approvals (e.g. CE, TÜV, UR).
Unleash the true potential of your coral with Mitras LX
The matching light spectrum for every application
Mitras LX7 IL is available in different models with optimized light spectrums for any application.
- Mitras LX70xx IL Freshwater
- Mitras LX72xx IL Marine Water
- Mitras LX75xx IL Coral Pop
- Mitras LX74xx IL Aquaculture
Learn more about our Mitras LX7 IL models below:
Mitras LX7x06 has 6 clusters (Total of 72 LEDs)
LX70xx IL Freshwater
- For Freshwater – balanced full spectrum from royal blue to hyper red for perfect plant growth and brilliant fish colors

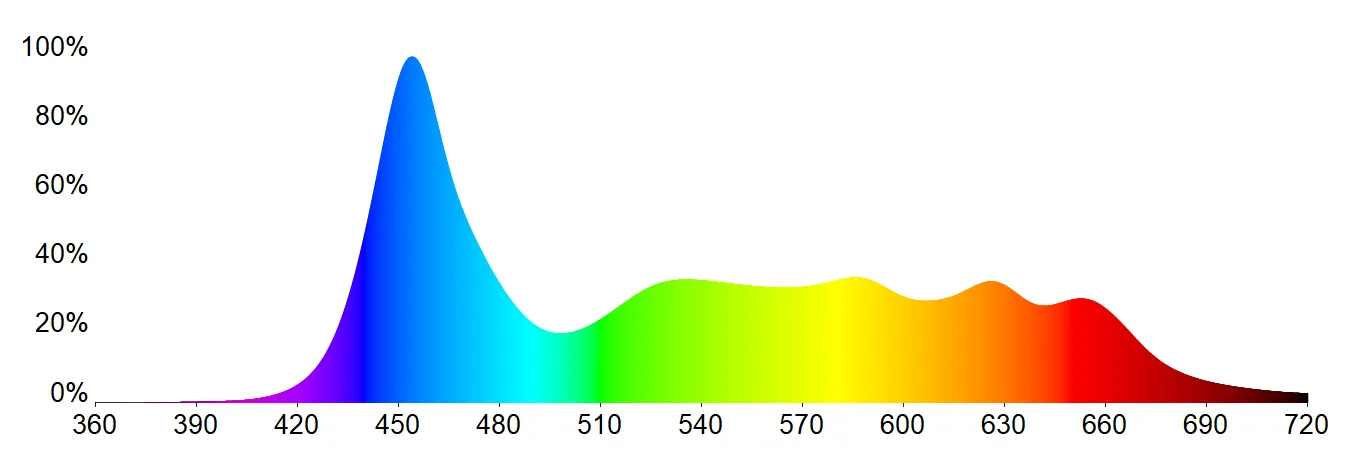

- Diagram shows baseline spectrum with all LEDs at 100%
- 1000 K – 18000 K adjustment range of color temperature
- 6800 K center color temperature
- 9 separately dimmable colors, LEDs within each cluster:
2 x cold white, 2 x natural white, 2 x cool white, 1 x blue, 1 x royal blue, 1 x true green, 1 x yellow, 1 x red, 1 x hyper red
LX72xx IL Marine water
- For Marine Water – a complete spectrum from UVA to hyper red produces amazing colors and growth

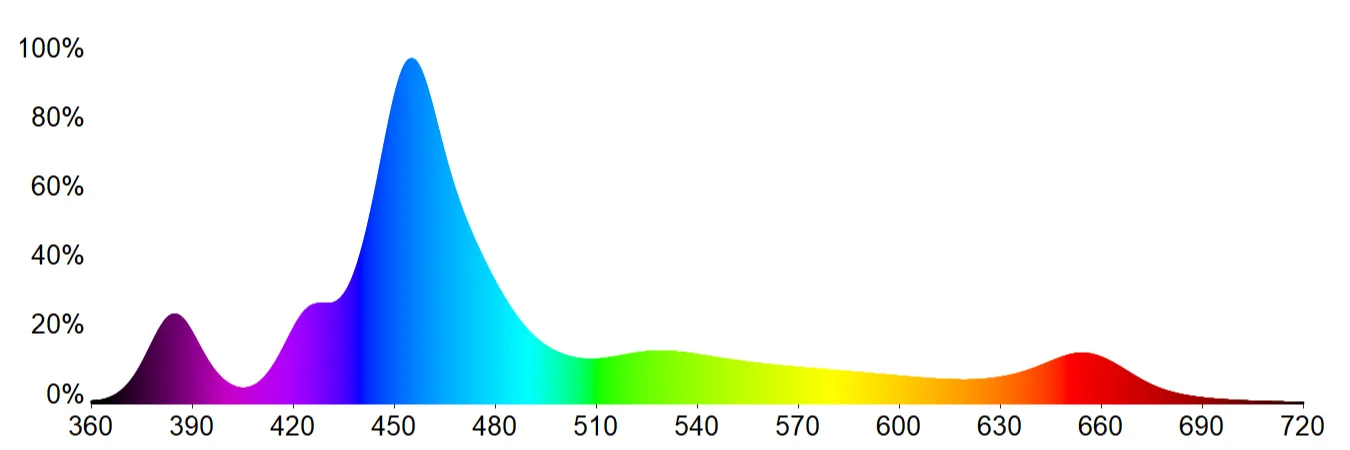

- Diagram shows baseline spectrum with all LEDs at 100%
- 1000 K – 24000 K adjustment range of color temperature
- 10000 K center color temperature
- 9 separately dimmable colors, LEDs within each cluster:
2 x blue, 2 x cool white, 2 x royal blue, 1 x true green, 1 x cold white, 1 x blue-white, 1 x hyper red, 1 x hyper violet, 1 x UVA
LX75xx IL Coral Pop
- For Marine Water – with lots of blue and UVA over a wide wavelength range optimized for stunning fluorescence and perfect growth of your corals

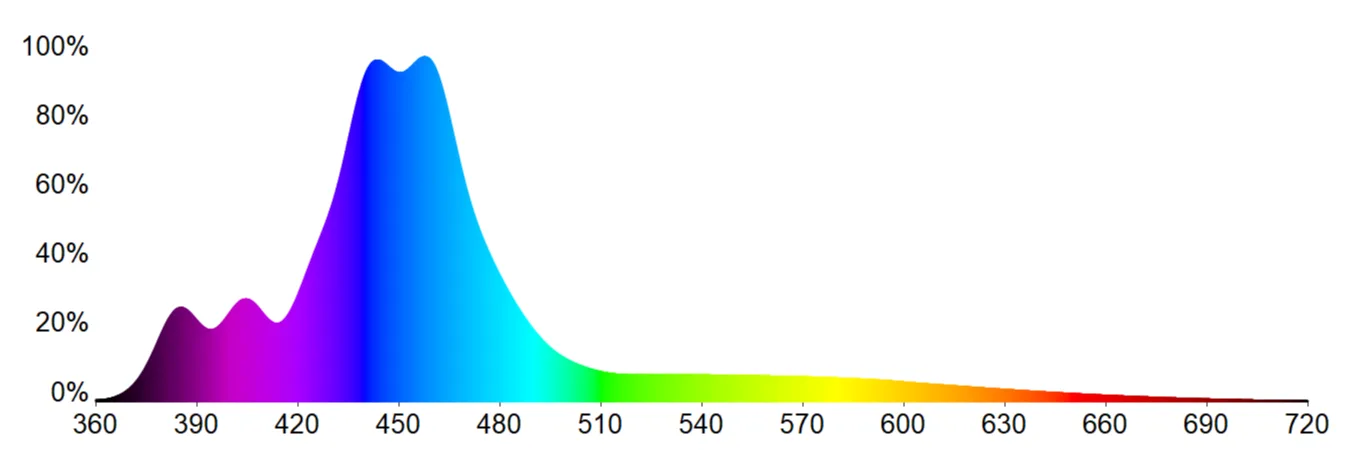

- Diagram shows baseline spectrum with all LEDs at 100%
- 1000 K – 30000 K adjustment range of color temperature
- 14000 K center color temperature
- 9 separately dimmable colors, LEDs within each cluster:
2 x blue, 2 x royal blue, 2 x deep blue, 1x hyper violet, 1x deep violet, 1x UVA, 1 x cold white, 1 x cool white, 1 x daylight white
LX74xx IL Aquaculture
- For Aquaculture – special spectrum for breeding

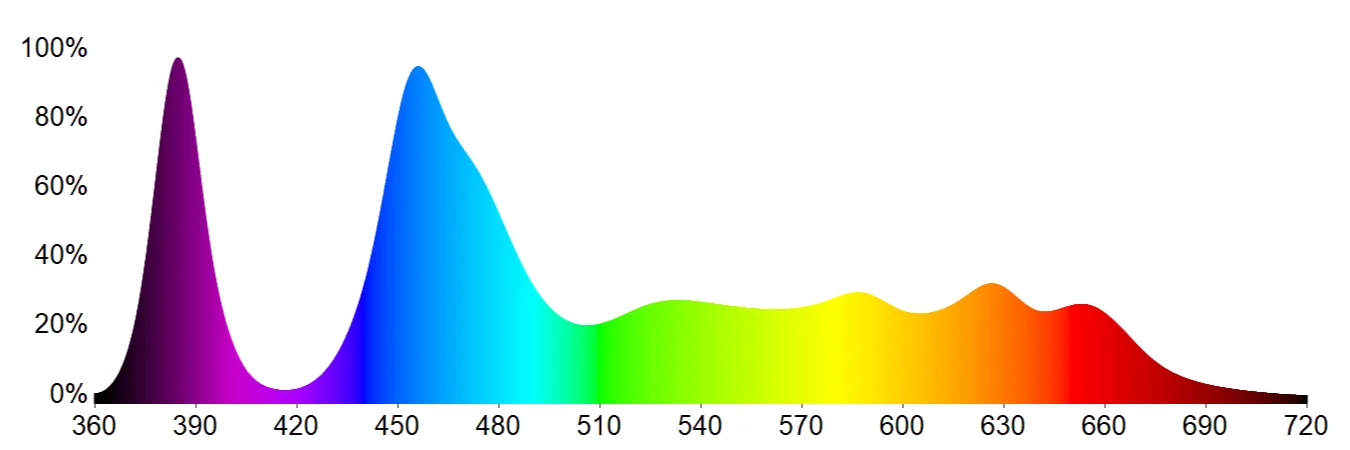

- Diagram shows baseline spectrum with all LEDs at 100%
- 1000 K – 30000 K adjustment range of color temperature
- 11000 K center color temperature
- 9 separately dimmable colors, LEDs within each cluster:
2 x blue, 2 x natural white, 2 x cool white, 1 x red, 1 x true green, 1 x yellow, 1x hyper red, 1x royal blue, 1 x UVA
Photosynthetic efficiency at its best – Mitras LX
Future-proof: Interchangeable LED Clusters
All Mitras luminaires are designed with upgradeability in mind. It is super easy to swap LED clusters and benefit from the latest technological developments. For example, an LX70xx can be converted to an LX72xx with a simple cluster swap.
No Disturbing “Disco Effect”
Unlike many other LED fixtures, Mitras LX lamps do not create an unsightly and disturbing “disco effect”. This effect is often noted as seeing obvious color spots on the substrate which tend to move side-to-side during water surface agitation. Our metal coated high performance LED reflector mimics the reflective performance of parabolic Metal Halide reflectors by perfectly blending all LED channels. In a single Mitras LX cluster, all 12 LEDs are housed on an area of just 25 mm x 25 mm – this narrow arrangement and special reflector design helps achieve perfect light mixing.
Technical Data
| Lamp Operation Mode | Max. Power Consumption | Recommended Water Volume |
| High Efficiency Mode at 100% | 165 W | max. 310 Liter/ 68 Gallons |
| High Output Mode at 100% | 250 W | max. 440 Liter/ 97 Gallons |
| Luminaire | Power Supply | |
| Dimensions (L x W x H) | 420 mm x 230 mm x 60 mm 16.5" x 9.1" x 2.36" | 245 mm x 68 mm x 40 mm / 9.6" x 2.7" x 1.6" |
| Weight | 5.1 kg / 11.2 lb | 1.5 kg / 3.3 lb |
| Cable length | ca. 3 m / 118.11" to power supply | about 2 m / 78.74" to wall outlet |
* Specifications relate to average parameters and may vary due to component tolerances and ambient conditions.
* Both the power supply and luminaire become warm during normal operation and must therefore be installed in an area that allows for sufficient heat dissipation.

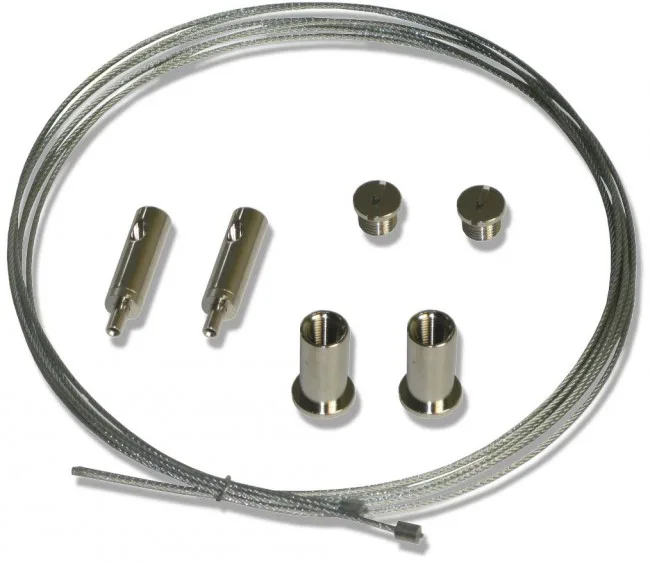

Mounting
Chose among several mounting options – Learn more.
Scope of Delivery
The following items are included:
- Efficient wide range power supply IP 67 with lockable safety plug
- Power Cord
- USB Cable
This video shows how to easily replace the LED clusters of the aquarium LED fixture Mitras LX7. Mitras LX7 offers the possibility to replace every single LED cluster, in case you want to change the model, e.g. from marine water to fresh water, or want to take advantage of the newest LED innovations GHL offers in new LED cluster models.
