Description

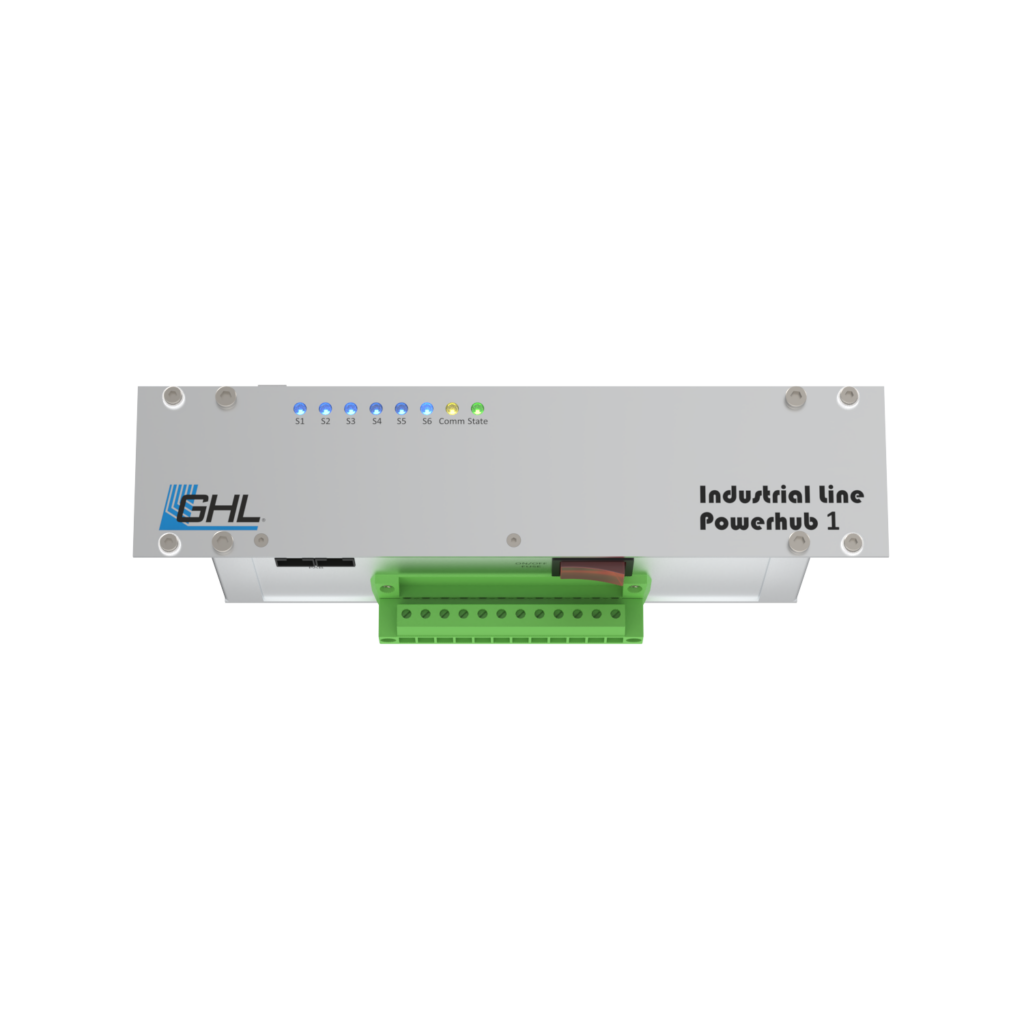

The Powerhub 1 IL brings ProfiLux-controlled power switching into your Industrial Line rack. Six relay outputs let you switch equipment such as pumps, heaters, UV sterilizers, or lighting on and off – fully automated through your ProfiLux controller, just like the well-known GHL Powerbar, but designed for professional rack-mounted installations.
All outputs are routed to a single removable Phoenix screw terminal connector, carrying L, N, PE, and the six switched lines. This makes wiring clean and service-friendly: disconnect the terminal block, and the entire unit can be removed or replaced without rewiring.
The integrated rocker switch includes a 15A fuse that protects the combined load of all outputs. Connection to the ProfiLux controller is made via PAB cable – no additional configuration beyond the standard Powerbar setup in GHL Connect.
An optional GHL Logo Frontpanel IL (5HU) can be connected to the unit’s RGB logo port for visual system status indication.
