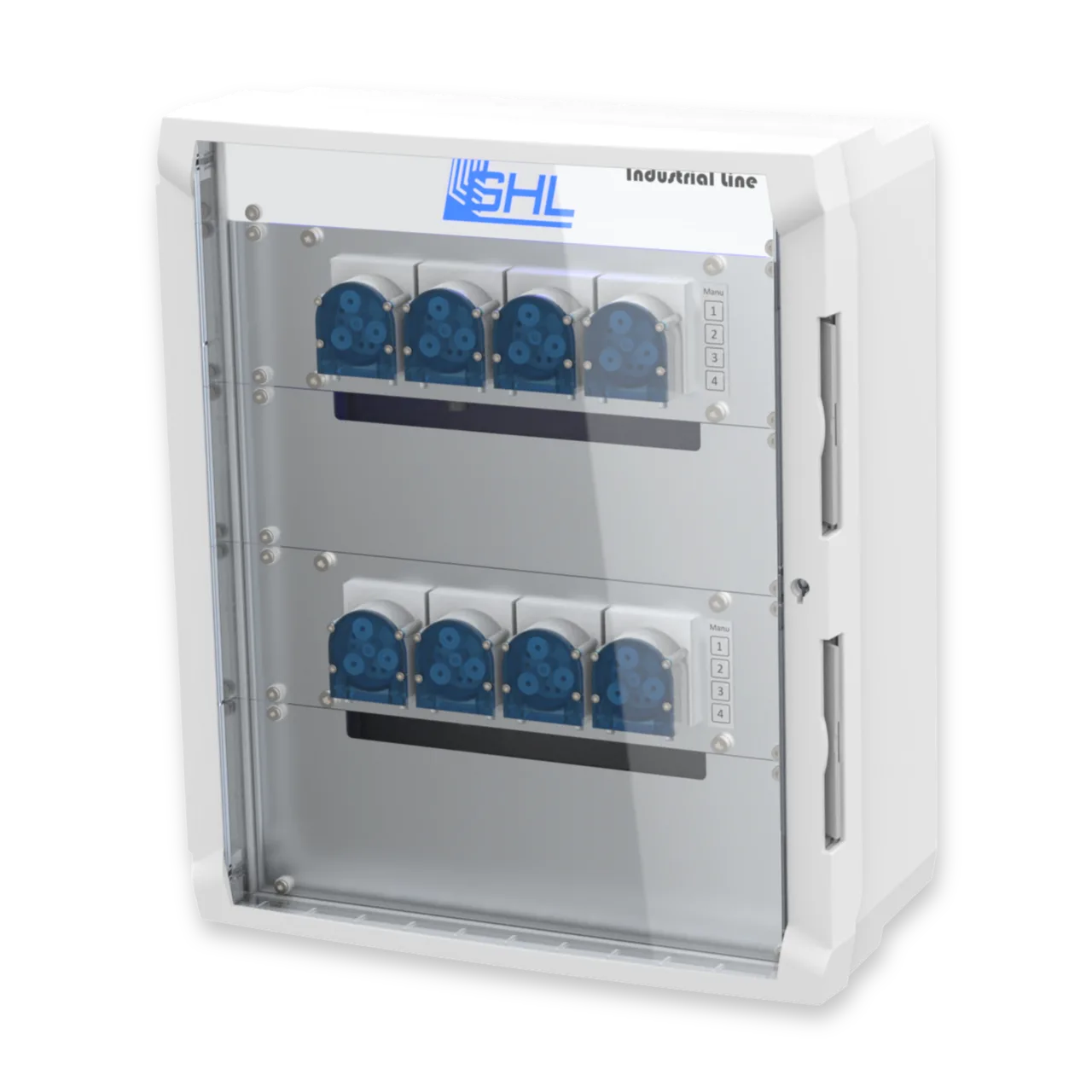

Doser 3 SA IL PnP System

Doser 3 SA IL PnP System

1.529,00 €

Includes 19% VAT
plus shipping
Delivery Time: Immediate delivery (abroad may vary)

Complete Industrial Line dosing system, fully pre-assembled and ready to use. Includes Doser 3 SA IL controller, Doser 3 EXT IL, enclosure, GHL logo frontpanel, blanking panels, and two power supplies. All units mounted and wired — simply connect the power and start dosing.

For the full product page, visit:

https://www.aquariumcomputer.com/products/industrial-line/

Manufacturer: GHL Advanced Technology GmbH & Co. KG
Marie-Curie-Straße 20
67661 Kaiserslautern
Germany
BaseEnclosure_IL_Front

Basic housing IL (39HU)

IP54-rated enclosure for up to 3 Industrial Line slide-in units. Hinged lid with transparent window and rubber seal, threaded profiles for device mounting, slideable bottom cover for cable and tube routing. Wall-mountable. 39HU usable interior space.

279,90 € Includes 19% VAT

GHL Logo Frontpanel IL (5HU)

Industrial Line slide-in frontpanel (5HU) with RGB-illuminated GHL logo. Displays system status through color and blink patterns. Connects to the RGB logo port available on most IL devices. No power supply required.

47,90 € Includes 19% VAT
Doser 3 SA IL_front

Doser 3 SA IL (8HU)

Doser 3 SA IL slide-in unit (8HU) – the GHL Doser 3 Stand Alone in an aluminum Industrial Line housing. 4 peristaltic pumps with PrecisionDrive technology (planetary gears), WiFi, LAN, USB, OTA firmware updates, PAB connectivity. Up to 250 micro doses per day, 0.1 mL resolution. Expandable with Doser EXT IL units. Power supply not included.

529,90 € Includes 19% VAT
2 Blindplatten_850x850

Blanking panel IL with or without opening × 2

Aluminum blanking panel for gaps between devices in Industrial Line housings. Available in 7 heights (4HU–10HU), each with or without opening for tube routing.

Doser 3 SA IL_front

Doser 3 EXT IL (8HU)

Doser 3 EXT IL slide-in unit (8HU) – the GHL Doser 3 Extension in an aluminum Industrial Line housing. 4 peristaltic pumps with PrecisionDrive technology (planetary gears), up to ~80 ml/min, 0.1 mL resolution, 250 micro doses per day. Connects via PAB to a Doser SA IL, Doser Maxi SA IL, or ProfiLux controller. Power supply not included.

479,90 € Includes 19% VAT

Power supply 24V/2.5A, incl. power cord × 2

Power supply (24V/2.5A) with protective earth connection for all GHL Doser 2.x, Doser 3, and Doser Maxi models — both Stand Alone and Extension variants. Required accessory for Industrial Line dosing units. Wide-range input (100–240V, 50/60 Hz) with country-specific IEC power cord. Protective earth connection for maximum EMI immunity and electrical safety.


PAB-Cable

2x RJ45


Pre-assembly Industrial Line (without KHD/IOND)

Professional pre-assembly service for Industrial Line systems without KH Director IL or ION Director IL. All slide-in units and blanking panels mounted, PAB wired, Logo Frontpanel and Control Pad connected (if ordered). Power supplies are not connected.

72,90 € Includes 19% VAT
Wishlist
Category:

Description

The Doser 3 SA IL PnP System is a fully pre-configured Industrial Line dosing solution for professional aquaculture, research, and advanced aquarium installations. Everything is pre-selected, matched, and pre-assembled — no sourcing decisions, no assembly required.

The system combines a Doser 3 SA IL and a Doser 3 EXT IL in a single IP54-rated Industrial Line enclosure, providing 8 independent peristaltic pump channels. Both units feature GHL’s PrecisionDrive technology — a custom-developed combination of 24V stepper motors and planetary gears, engineered and manufactured in-house. Each pump doses down to 0.1 mL resolution with up to 250 micro doses per day.

The Doser 3 SA provides integrated control with WiFi, LAN, and USB connectivity, OTA firmware updates, and 4 magnetic stirrer ports. It manages all 8 pumps and connects via PAB to the EXT unit. The system can be expanded further with additional Doser EXT IL units.

Two 24V/2.5A power supplies are included — one per unit. The GHL Logo Frontpanel IL and blanking panels complete the front of the enclosure. Pre-assembly is included: all units are mounted, PAB cabling is wired, and the logo frontpanel is connected. Power supplies are not connected during pre-assembly.

Additional information

Power supply 24V/2.5A, incl. power cord

Country Version

DE, Schuko, UK, CH, AUS, USA

PAB-Cable

Cable length

0,5 m
Warnings and safety information:

This product is intended exclusively for use in aquariums, terrariums, or similar applications. It must not be used for other purposes.
Not suitable for children or unattended operation. For indoor use only.

Always ensure proper installation and regular maintenance according to the included safety instructions. There is a risk of electric shock if the product is installed or used incorrectly.

Before installation, cleaning, or maintenance, always disconnect the product from the power supply.
For detailed safety, maintenance, and disposal information, please refer to the printed safety documentation provided by GHL Advanced Technology GmbH & Co. KG.
