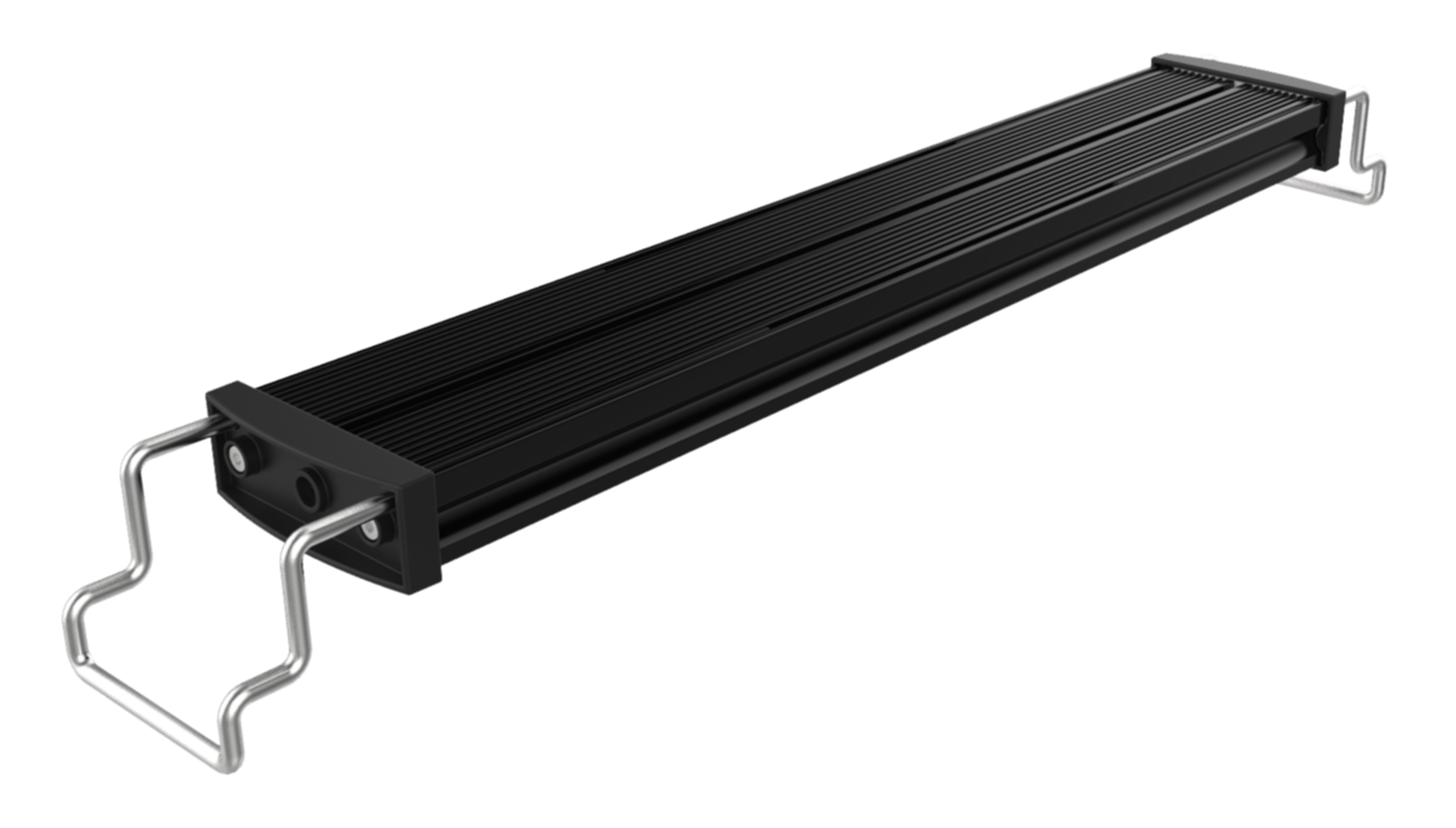

Mitras Slimline is one of the highest quality and most effective LED lights on the market. The Mitras Slimline is Made in Germany and offers:

  • Homogeneous, brilliant and very bright light through a balanced mix of selected mid-power LEDs in natural colors (model Skywhite CRI > 95, white LEDs > 150 lm/W)
  • Uniformly wide light distribution with a LED beam angle of 120°
  • Energy efficiency and long LED life thanks to sophisticated heat management (generously dimensioned heat sink and highly efficient heat conducting foil) – LED life at least 60,000 operating hours
  • If controlled by the ProfiLux Aquarium Controller: Professional light dimming (2 channels separately dimmable per Mitras Slimline, with add-on light Mitras Slimline RGB 5 to 7 channels separately dimmable)individual mix of the color spectrum and water-temperature-dependent light reduction (light is dimmed if water gets too warm).
  • Full undimmed light power when operated without ProfiLux (all LEDs light up to 100%)
  • Energy saving compared with traditional lighting approx. 50%
  • Operation with safe voltage (24V)



Nature-like light scenarios

Achieve realistic lighting in combination with a ProfiLux aquarium controller and the Mitras Slimline Splitter Dimmable:

  • sunrise and sunset
  • moon phases
  • dawn (add-on light Mitras Slimline RGB required)
  • clouds
  • thunderstorms
  • rainy days
  • tropical twilight
  • seasonal change
  • acclimatisation

Optimal for Every Aquarium

The Mitras Slimline is suitable for any marine or freshwater aquarium – if open or closed – and is available in 3 light temperatures and in 13 different lengths in 10 cm increments. Due to the high variety of offered lamp lengths you will find the tailor-made lighting exactly for your aquarium.

Get the best light distribution in your aquarium: With Mitras Slimline there is no need to compromise and you can forget about badly illuminated corners in the aquarium.

Adjust in conjunction with the ProfiLux aquarium controller the light spectrum and the light output in wide areas exactly as you like and give your plants, fish and coral the light they need to thrive.

More than enough light power:

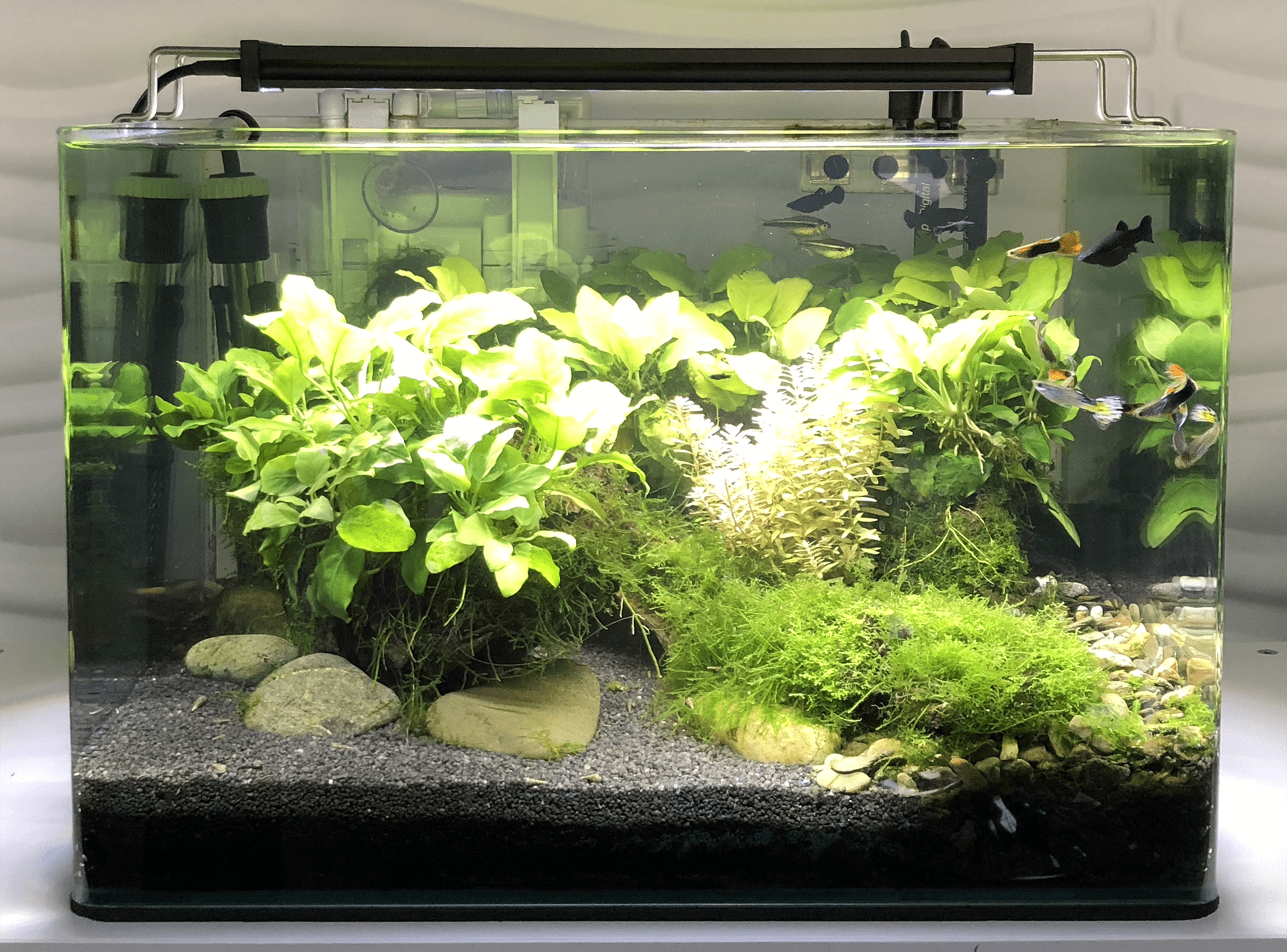

Mitras Slimline Skywhite 40 at 100% over a Dennerle® Nano Scaper’s Tank 55l

h

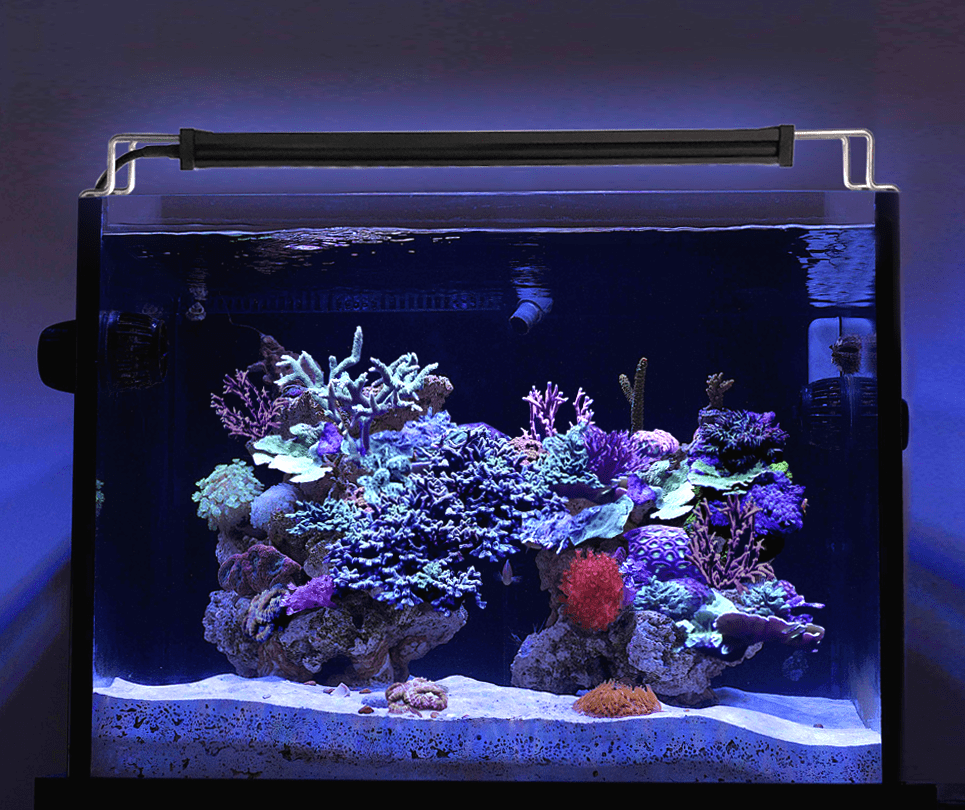

Also suitable for marine water tanks: Brilliant colors and great coral growth with Mitras Slimline Ocean Blue

h

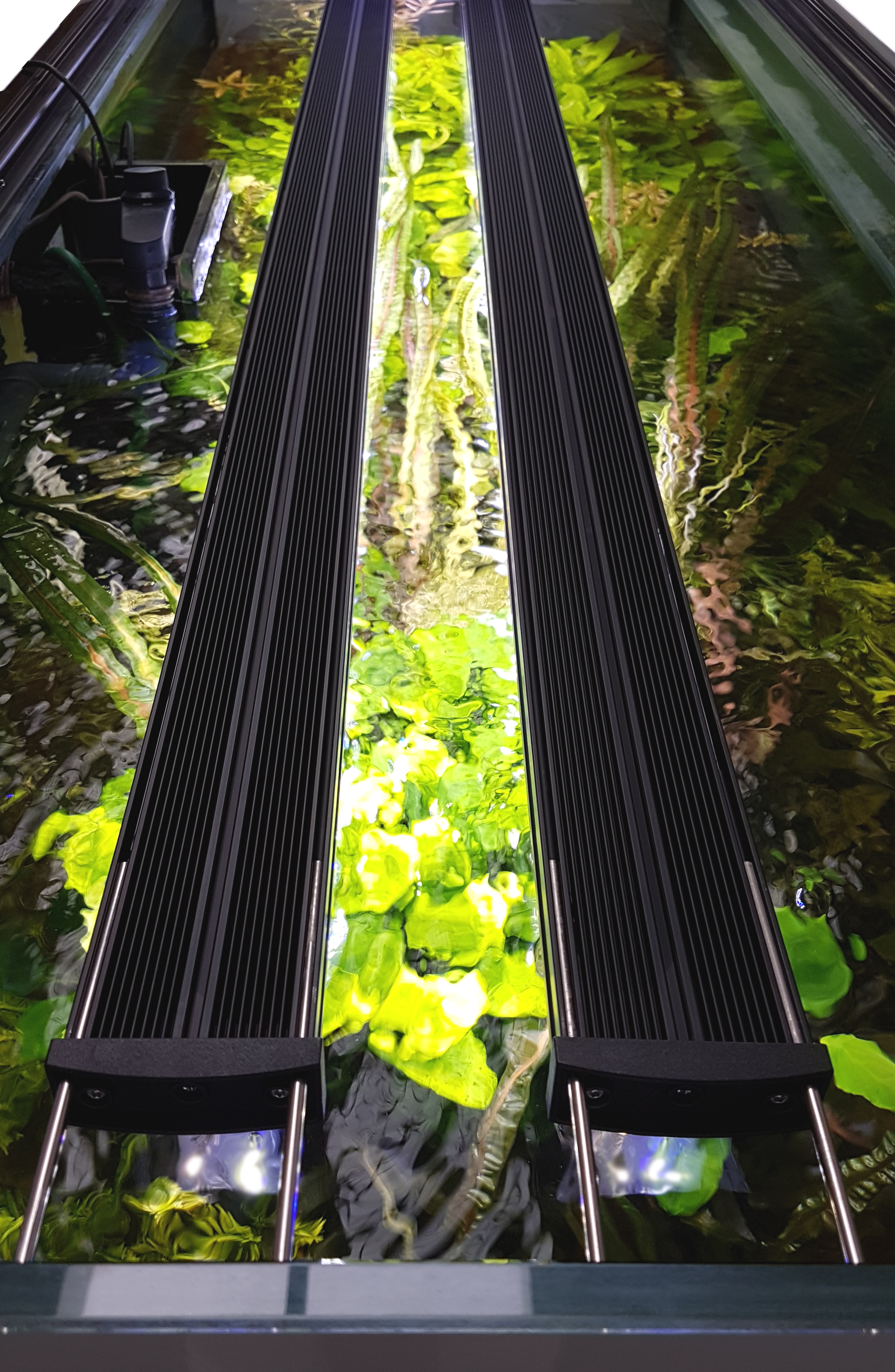

From nano tank to large tank: Mitras Slimline is always a great choice.

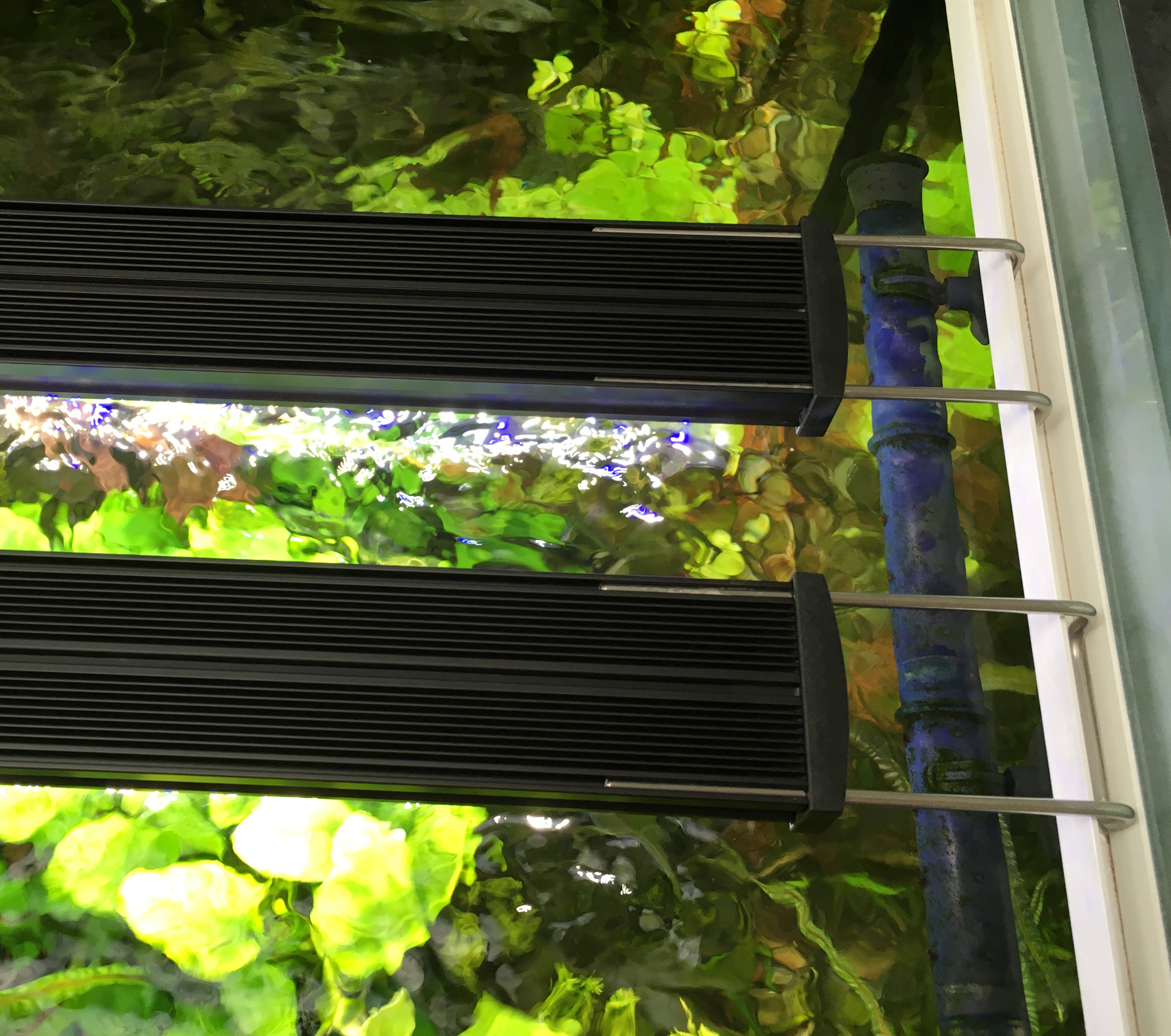

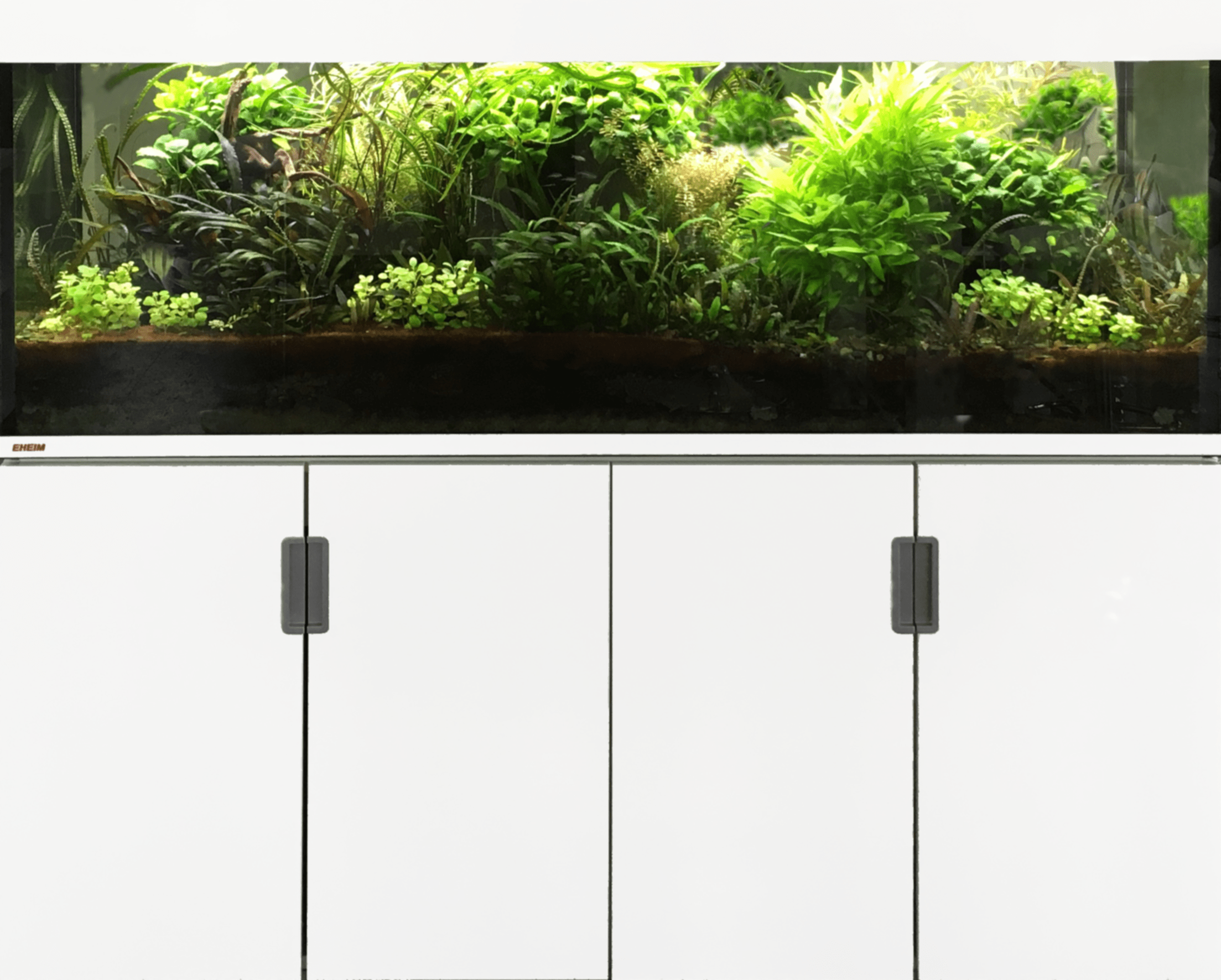

Here in the photo 2 Mitras Slimline Skywhite 150 are illuminating an Eheim® Incpiria (500l).

Diverse Dimming Functions with ProfiLux

Light scenarious

Experience realistic lighting scenarios such as sunrise, sunset, moonlight, cloud, seasonal lighting and thunderstorm simulations.

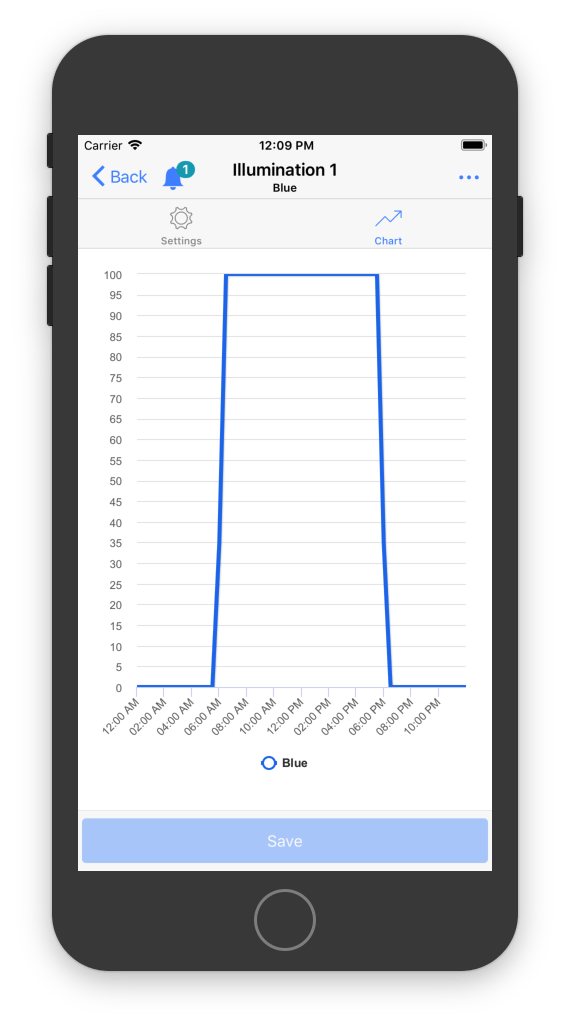

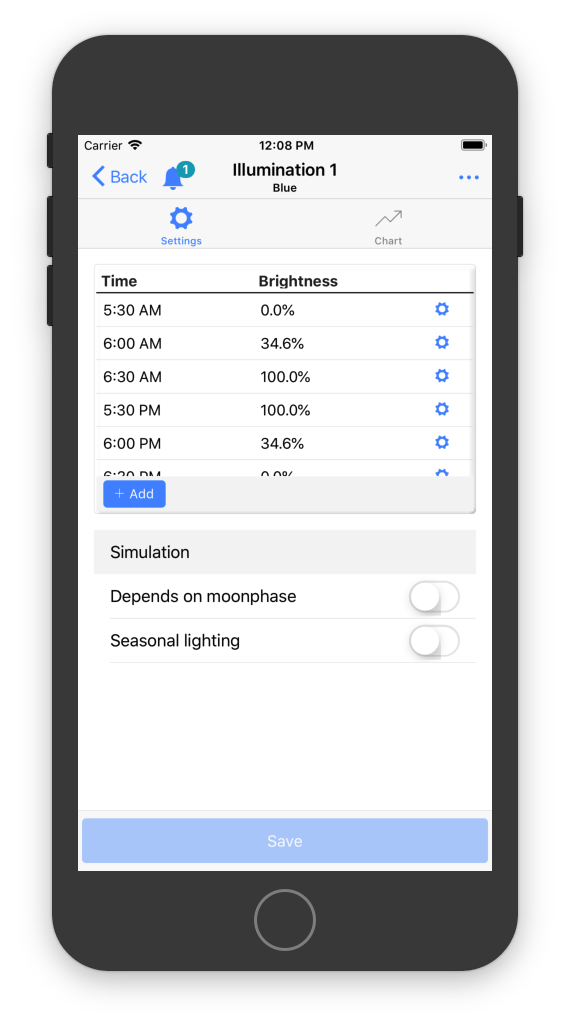

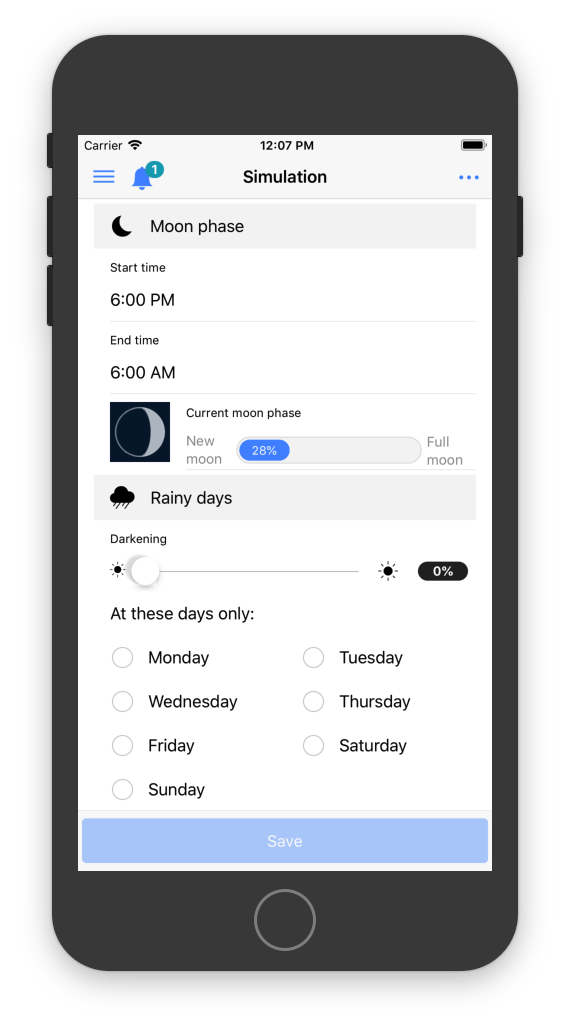

Convenient operation

with GHL Connect or PC-Software (ProfiLux required)

Ultra Bright

Extremely high luminous output at maximal energy efficiency. Selected mid-power LEDs (CREE®, OSRAM®) with at least 150 lumens/watt (white LEDs). The special arrangement of the LEDs over the entire Lightbar length provides a particularly homogenous illumination of the tank.

h
h
h

Unique Color Mix

h

Ideal light spectra for salt fresh water tanks. The unique light mixing ensures high photosynthetic efficiency for lush growth of plants.

Large Range of Models Flexible Usage

Mitras Slimline

13 different lengths in 10 cm-increments are available – also for Nano-Tanks – You’ll be able to find the ideal lightbar length for your tank. Illumination over the total tank length provides a maximum light quantity for the tank and avoids only little illuminated corners.
Several Mitras Slimline can be connected via a splitter to one power supply unit – this way you have less power supply units and less cables in your cabinet.

Variable Light Spectrum

GCC-Lightcomposer Mitras LX Customizable Color Mix with Clorophyll A & B Graphs

Adjust easily the desired light spectrum within a wide range with the Light Composer using the PC Software, GHL Control Center (GCC). Light color and intensity can be varied over the day.

Either you just take over one of the existing lighting projects for your luminaire, or submit your own project.

Brilliant and Natural Light

The high CRI of Mitras Slimline (model Skywhite > 95) ensures a brilliant and natural color reproduction.

Waterproof

According to IP 67 – can be used in closed aquariums

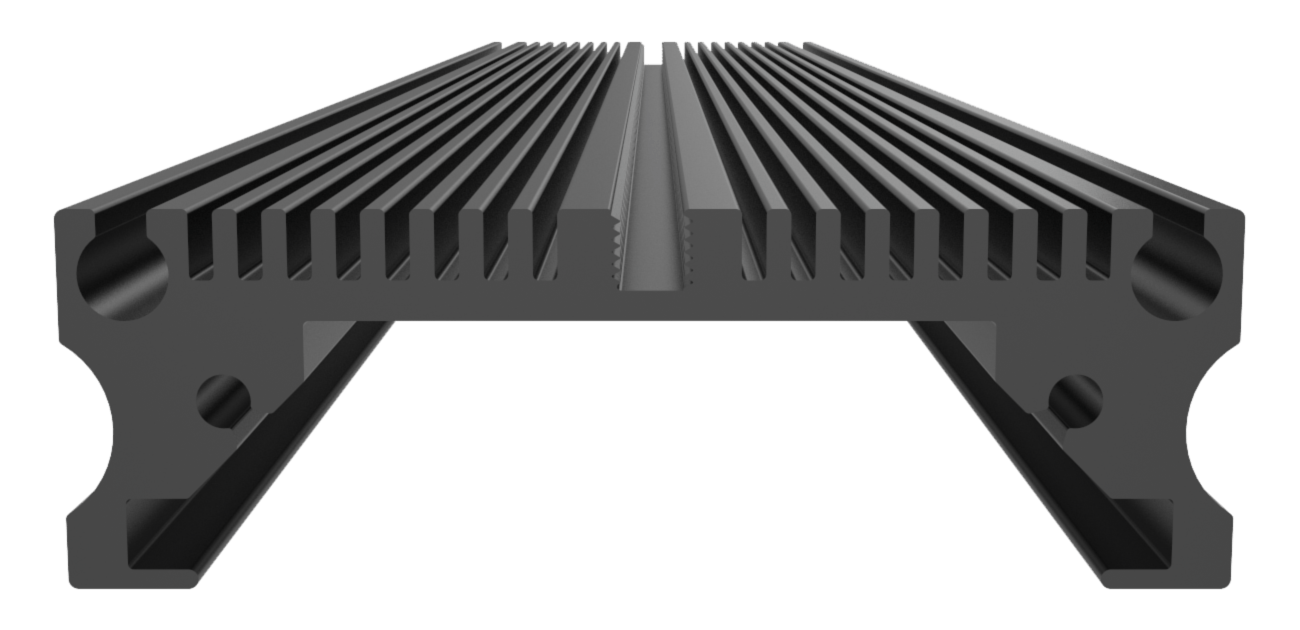

High Performance Heatsink

The life time and efficiency (light output per watt) are significantly determined by the cooling. Mitras Slimline therefore have a massive heat sink that ensures maximum cooling of the LEDs.
The screw channel at the top of the heat sink provides additional mounting options, such as the use of suspension sets.

Energy Label

Mounting in the tank

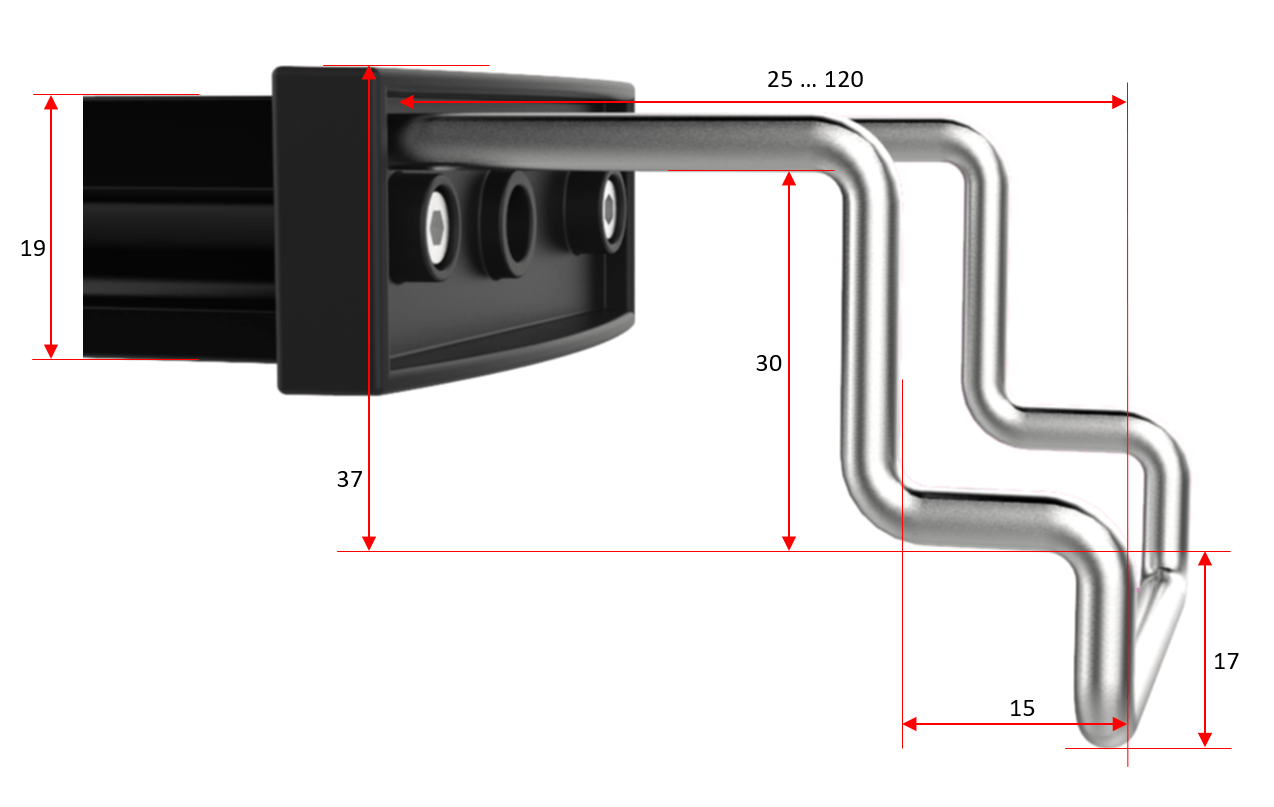

With the supplied stainless steel brackets, Mitras Slimline can be conveniently mounted above every tank.

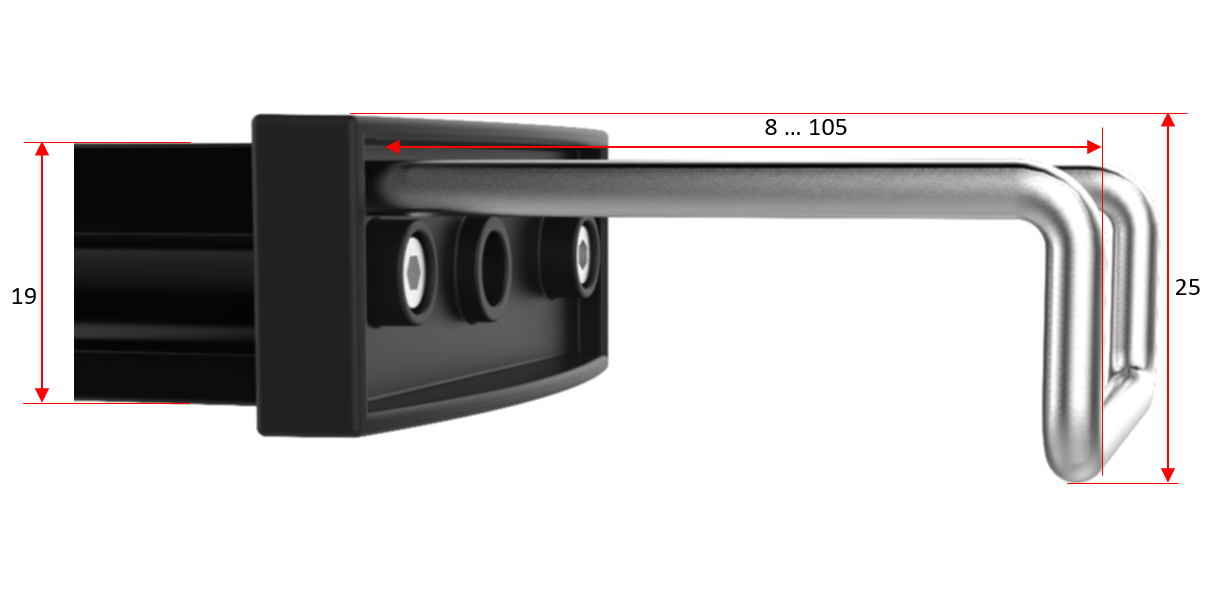

If there is not enough space in the tank, a flat bracket is also available.

Models

Available are the models Skywhite, Ocean Blue and Actinic Blue, as well as the add-on light Mitras Slimline RGB.

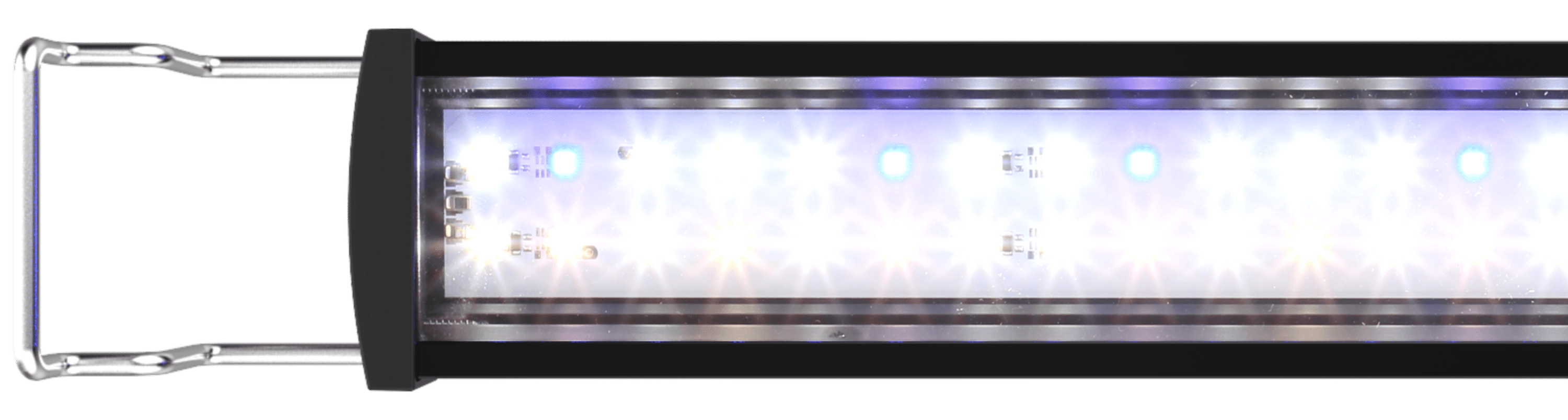

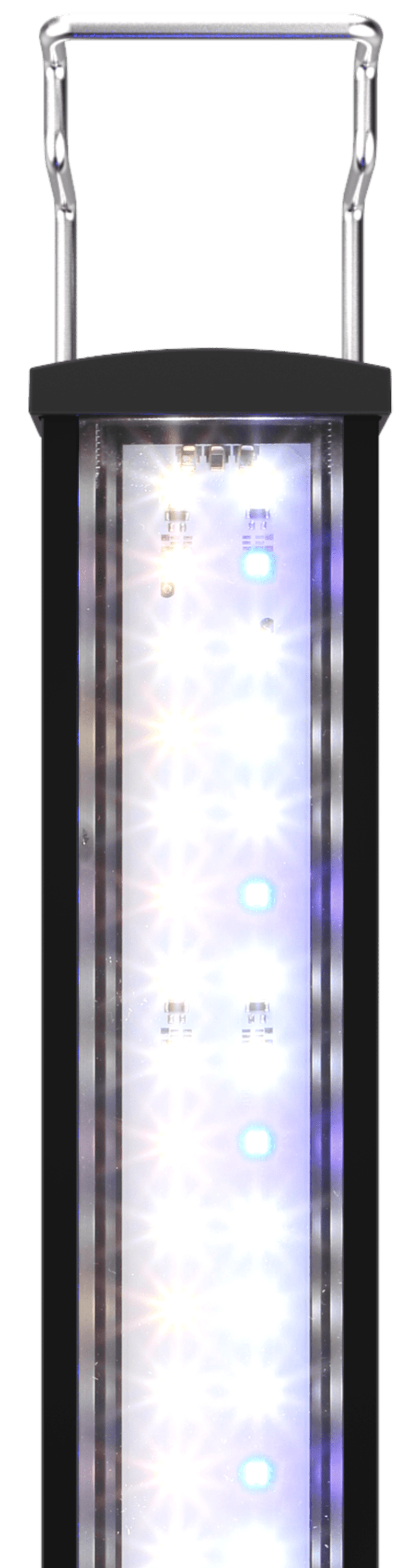

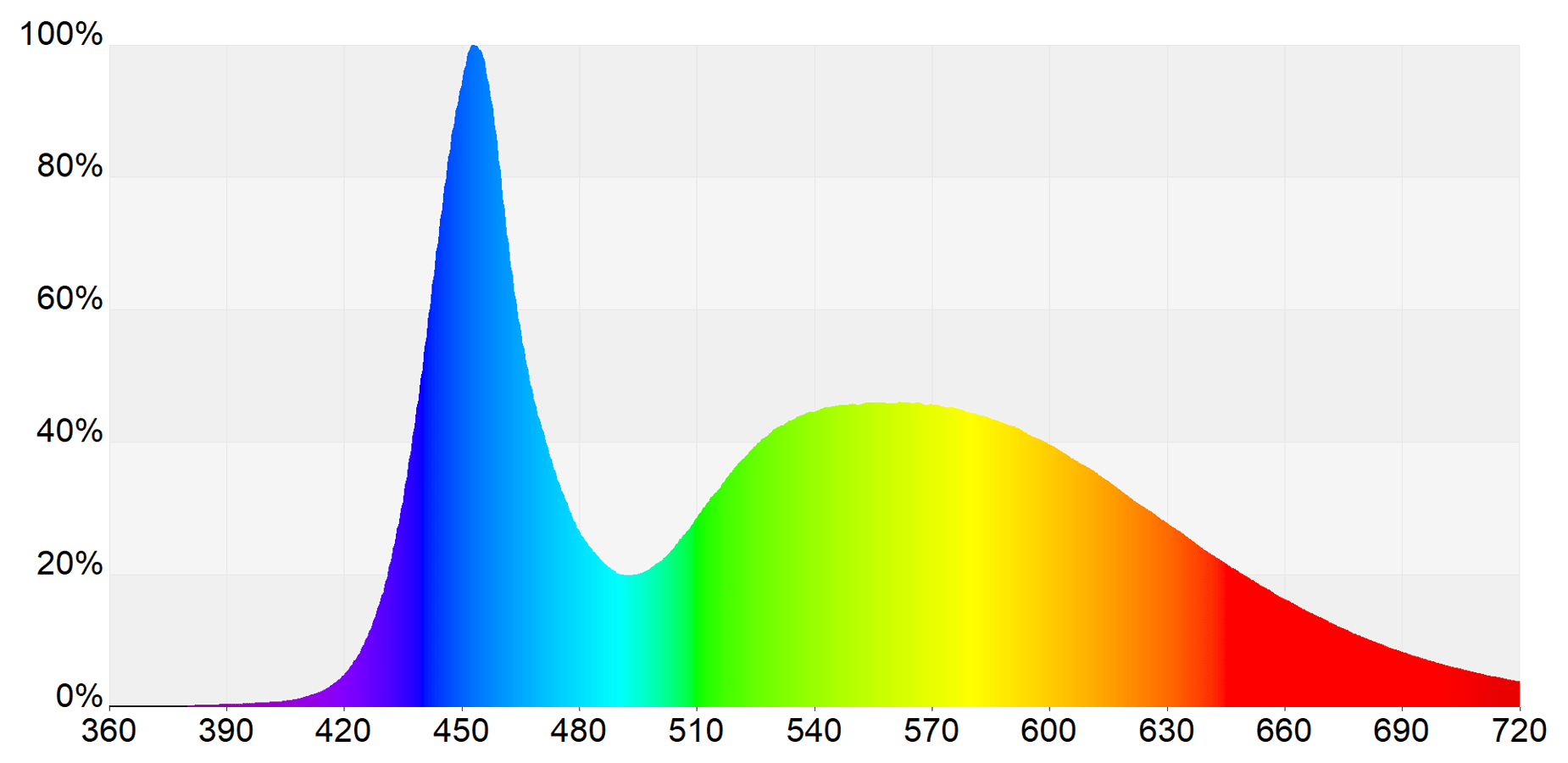

Mitras Slimline Skywhite
h
h

Recommended for

  • freshwater with lots of plants and fishes
  • marine water in combination with models Ocean Blue or Actinic Blue

Average color temperature: ca. 6500 K

2 color channels (dimmable with ProfiLux aquarium controller, continuously adjustable range ca. 4900 K – 8500 K)

LED setup:

Combination of 5 different LED light colors resp. color temperatures

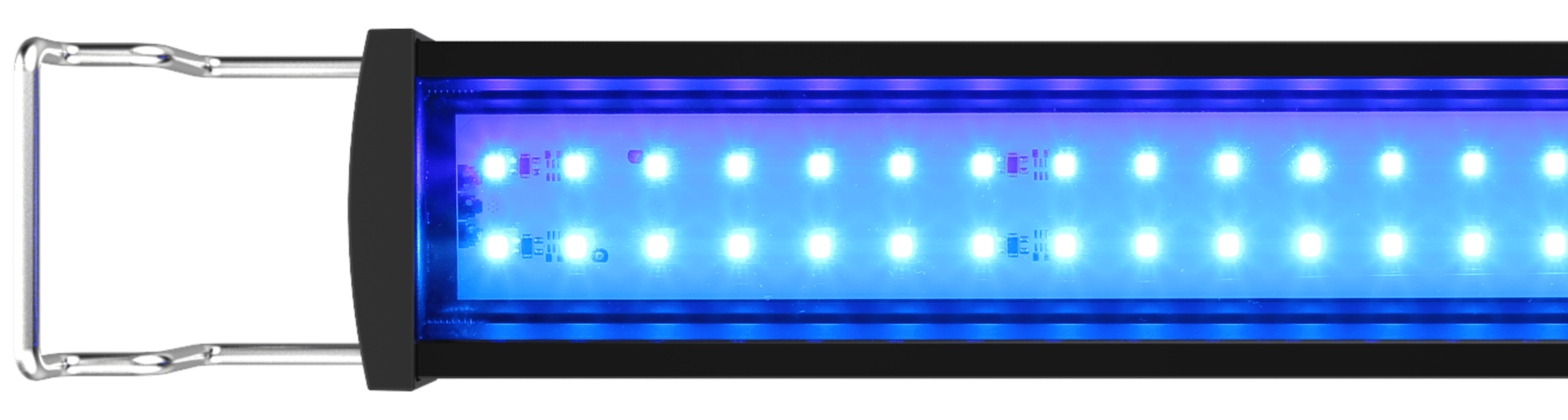

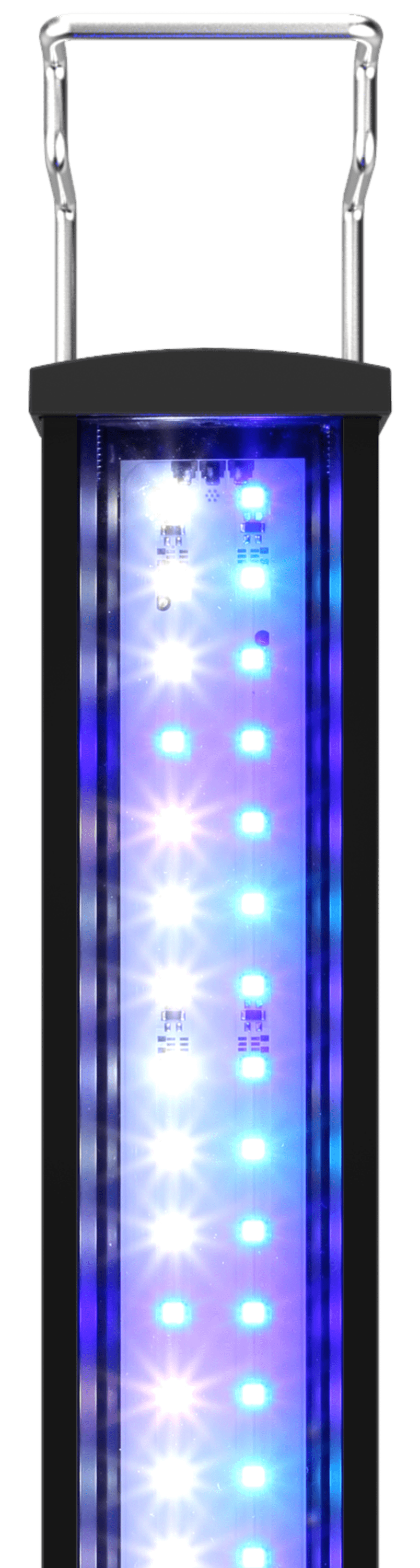

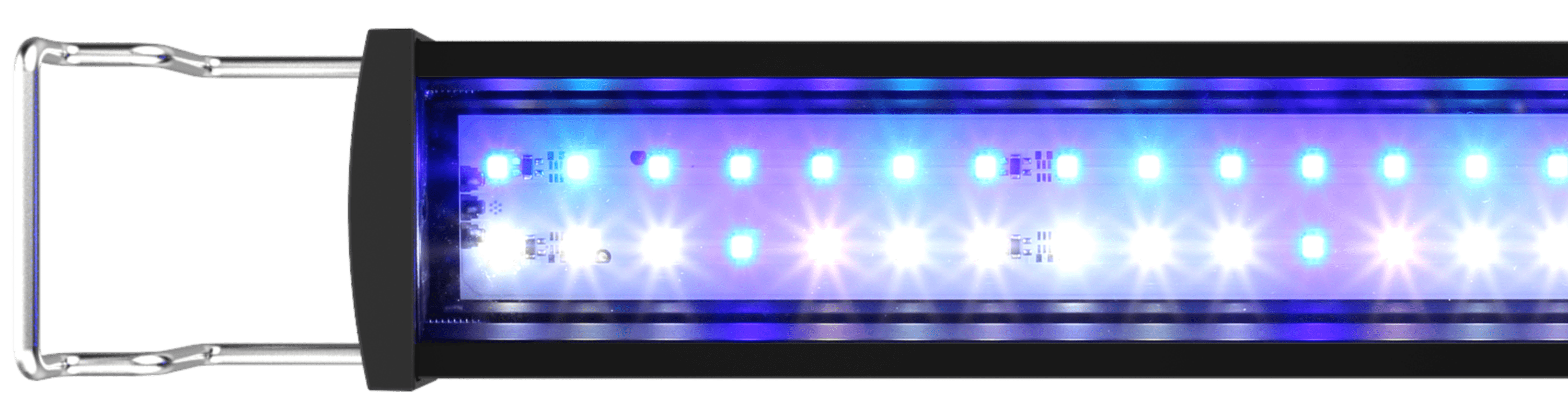

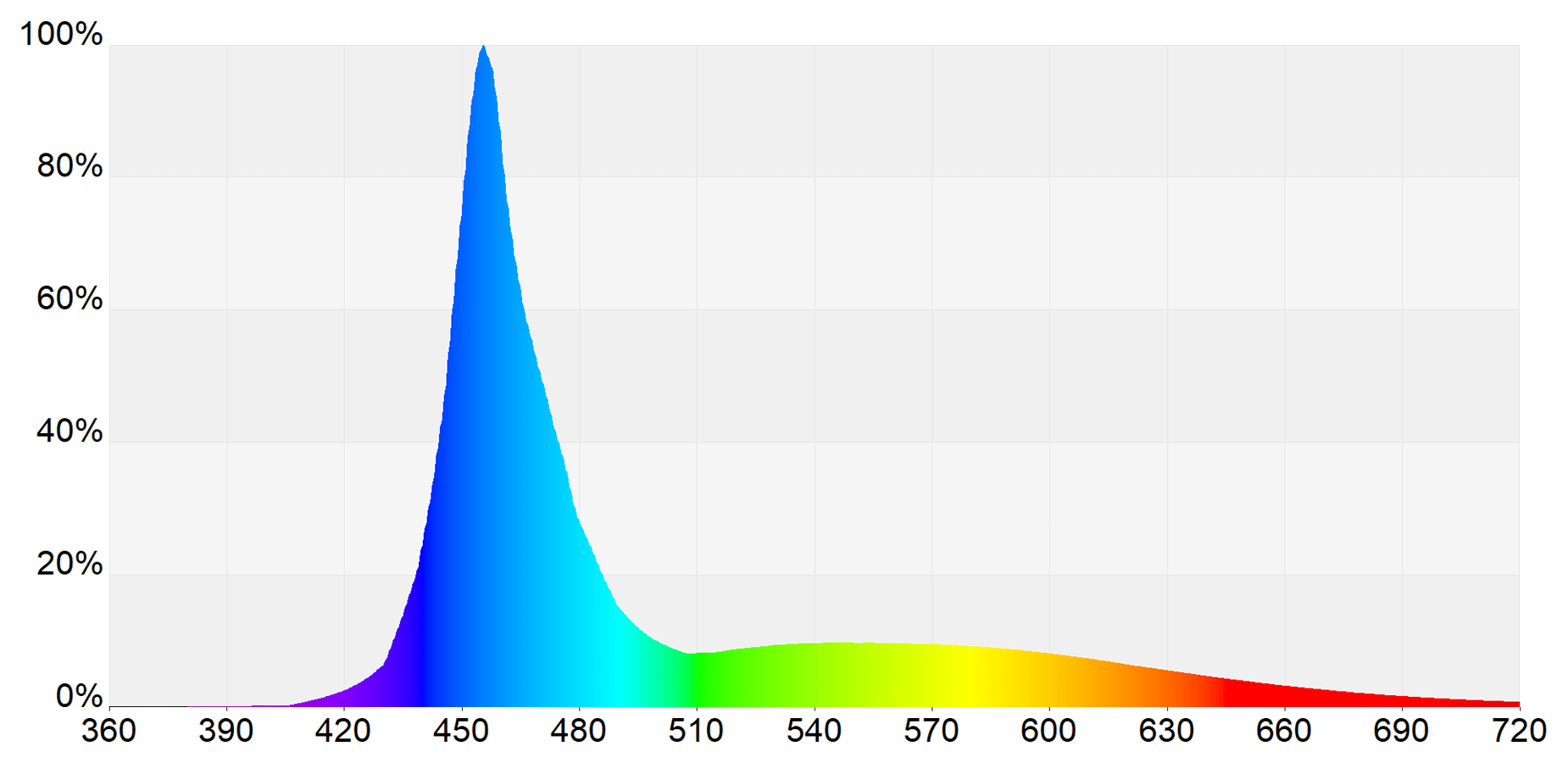

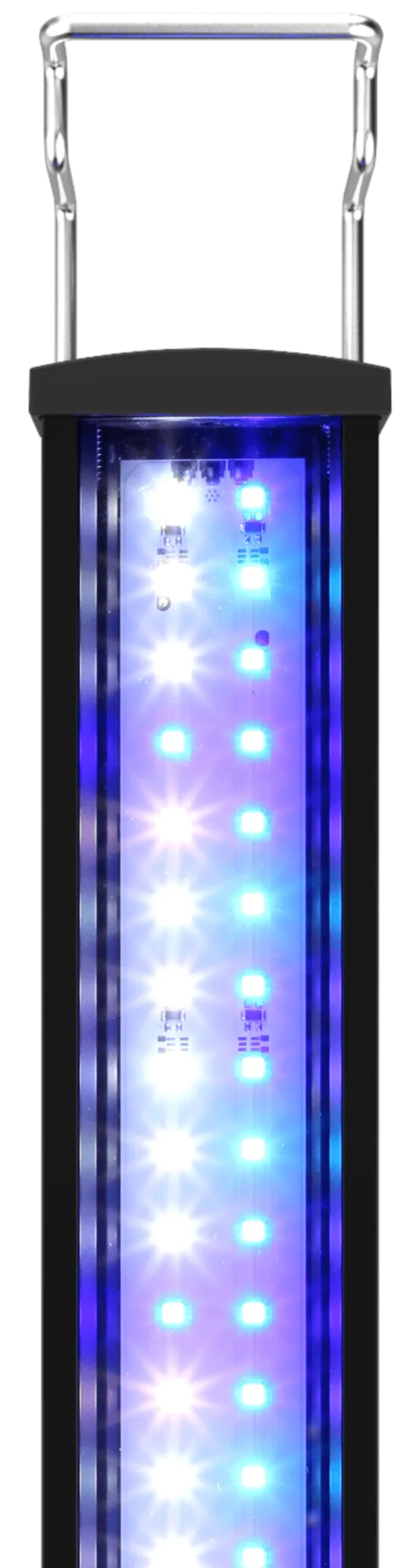

Mitras Slimline Ocean Blue
h
h

Recommended for

  • marine water
  • fresh water in combination with model Skywhite

Average color temperature: ca. 13100K

2 color channels (dimmable with ProfiLux aquarium controller, continuously adjustable range ca. 8700 K – 20300 K)

LED setup:

Combination of 6 different LED light colors resp. color temperatures

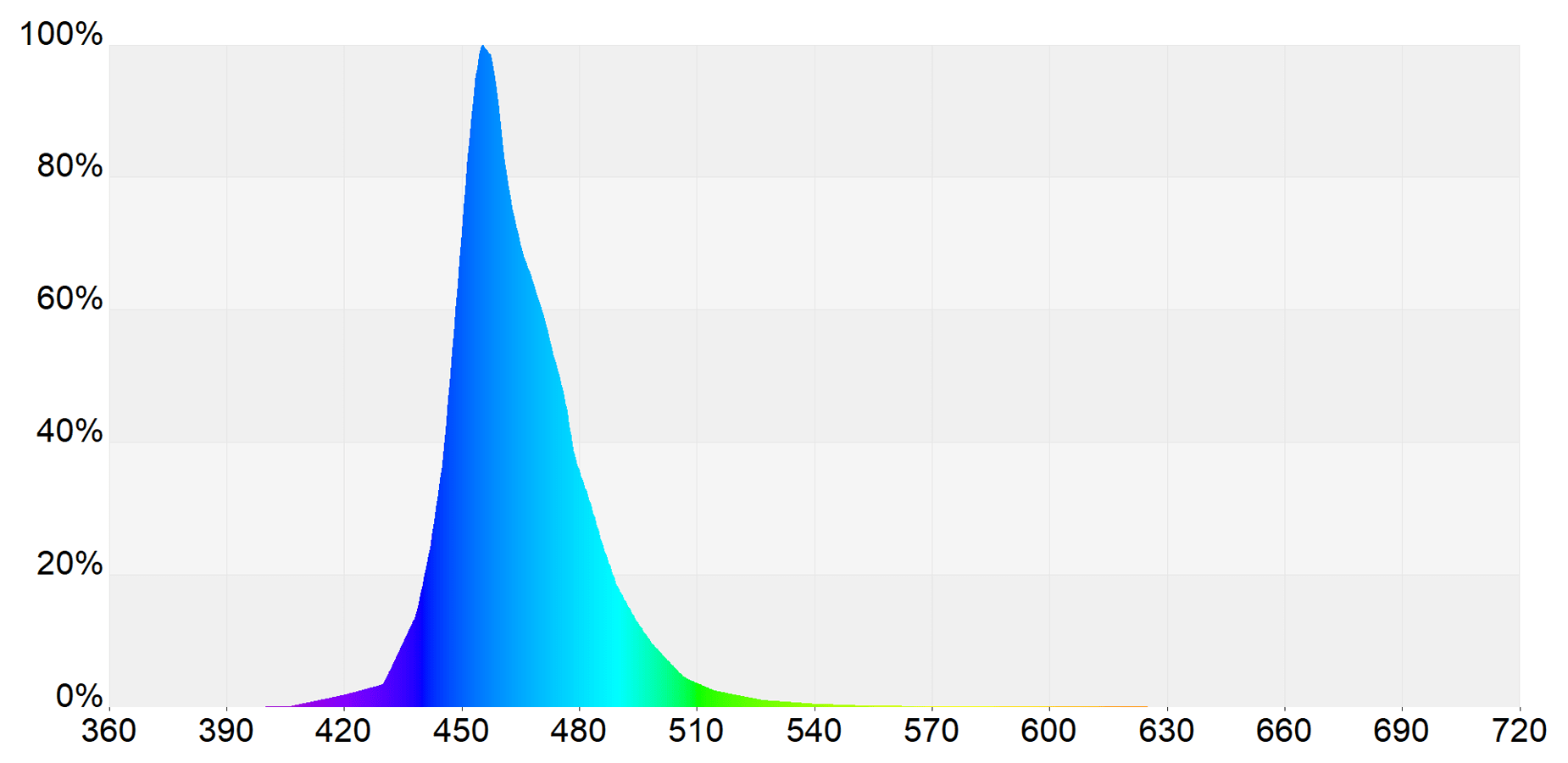

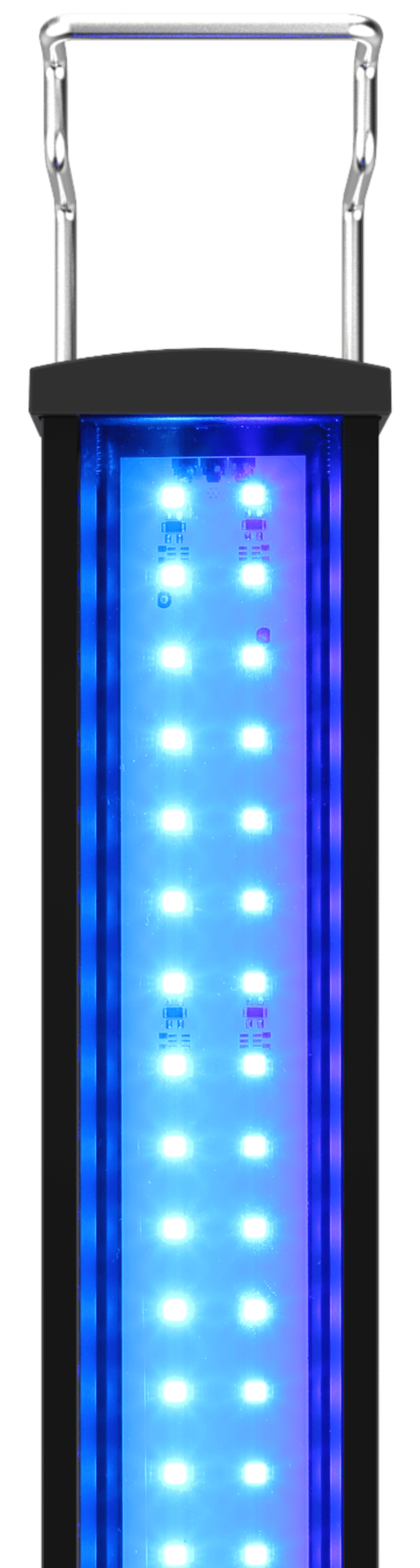

Mitras Slimline Actinic Blue
h
h

Recommended for

  • marine water

Average color temperature: ca. 20000 K

2 color channels (dimmable with ProfiLux aquarium controller, continuously adjustable range ca. 18400 K – 21600 K)

LED setup:

Combination of 2 different LED light colors resp. color temperatures

How Many Mitras Slimline do I need for my Aquarium?

Select Mitras Slimline depending on the aquarium volume.

Rule of thumb:

  • low light requirement: 0.3 watts per liter
  • very high light requirements: 0.9 watts per liter

Often, a recommendationlumens per liter” is given. In our opinion this makes only sense for Mitras Slimline Skywhite. For luminaires with high blue light component (Ocean Blue, Actinic Blue), the lumen specifications are rather misleading (see explanation above Lumen, LUX and PAR).

Available Mitras Slimline lengths

Model405060708090100110120130140150160
Recom. for tank length [cm]39-5049-6059-7069-8079-9089-10099-110109-120119-130129-140139-150149-160159-170
Light length without cable [cm]34.744.754.764.774.784.794.7104.7114.7124.7134.7144.7154.7
Max. power draw undimmed [W] *14.419.224.028.833.638.443.248.052.857.662.467.272.0

Cross-section of light: 62mm x 23mm

*) This is the net power draw of the light module. If you compare it with the power of LED lights from other vendors you should keep in mind that they often only mention the higher power draw of the complete system, including the loss of the power supply.
Also the efficiency (ratio between electrical power and light power) is very important when comparing. The Mitras Slimline light module has an efficiency of about 87%, where most LED lights of other vendors have only an efficiency of about 75%.

Power supplies

To save space and costs, several luminaires can be operated via a splitter on one power supply unit. Please note that the luminaires are therefore supplied without a power supply unit. Please order the appropriate power supply unit for your luminaires separately. See the Configurations section below.

The following power supplies are currently available:

Max. Output powerMax. drawn powerPlugInput voltage
20 W23 WEuro100 - 240 V / 50 - 60 Hz
80 W92 WCold device cable (Schuko, CH, UK)100 - 240 V / 50 - 60 Hz

Operation Modes

Mitras Slimline can be operated undimmed and dimmed.

If operated undimmed all LEDs will run at 100%. There is no controller needed. Activation and deactivation can be made through a simple timer.

Another option, however, is to dimm and operate the Mitras Slimline with a ProfiLux Controller (ProfiLux 3, 4, 4e, Mini, Light a Mitras Slimline Splitter Dimmable required). Both color channels can thus be dimmed independently. So all ProfiLux Controller simulation programs such as sunrise and sunset, cloud simulation, thunderstorms or calendrical moon phase simulation are possible.

Configurations

  • Undimmed, one or several Mitras Slimline on one power supply unit
    Using the Mitras Slimline Splitter, up to 3 Mitras Slimlines can be connected to a single power supply. The selected power supply must have at least the total power of all connected Mitras Slimlines.
  • Dimmed, one or more Mitras Slimlines connected to one power supply unit
    With the Mitras Slimline Splitter Dimmable) up to 2 Mitras Slimline can be connected to one power supply unit. The selected power supply unit must have at least the total power of all connected Mitras Slimlines.
    The dimmable splitter has a control input which is connected to the Mitras Lightbar output (or to the RS232 interface on ProfiLux 3) of a ProfiLux. Several Mitras Slimline Splitters Dimmable can be connected to each other if more than 2 Mitras Slimlines are to be controlled.

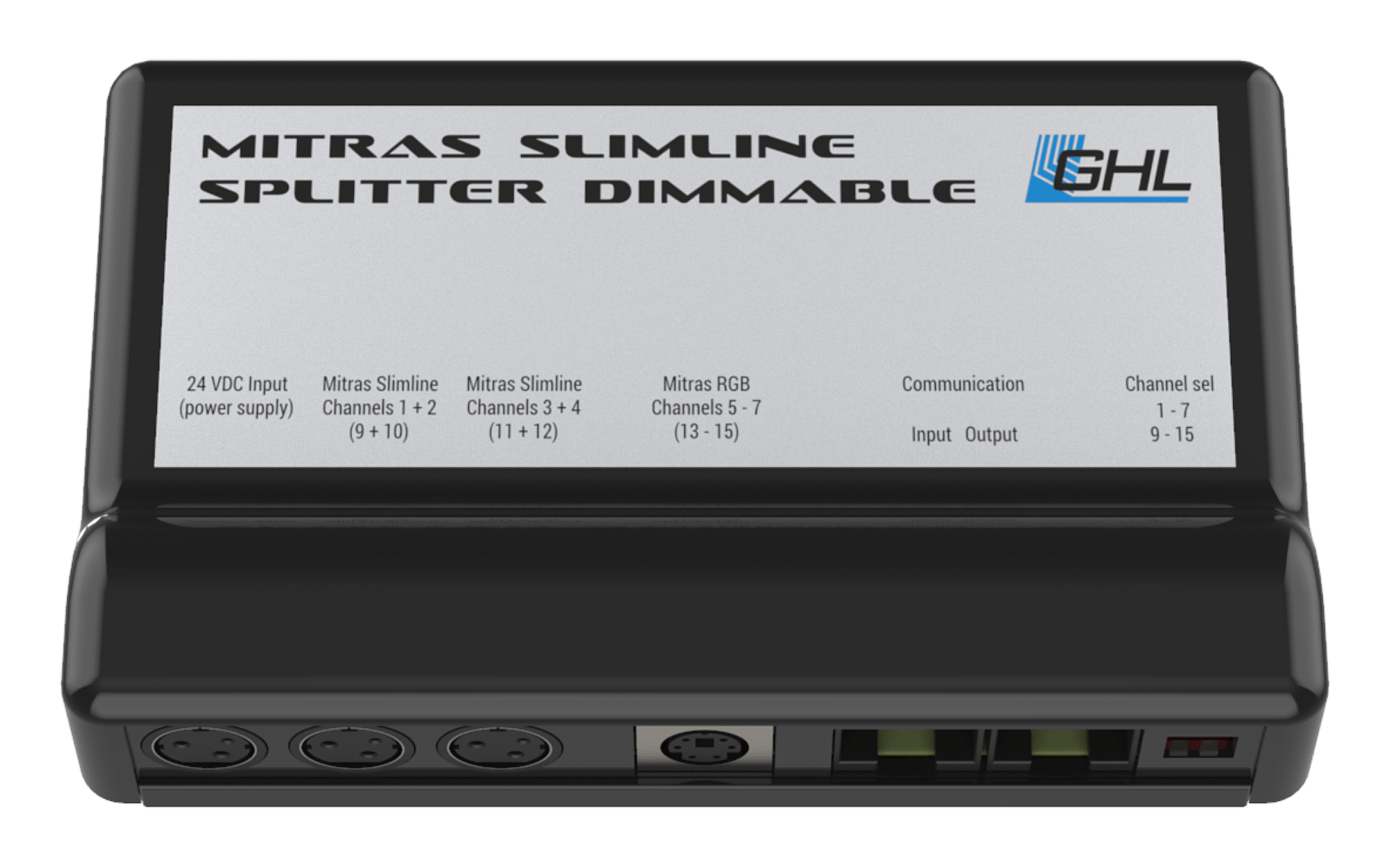

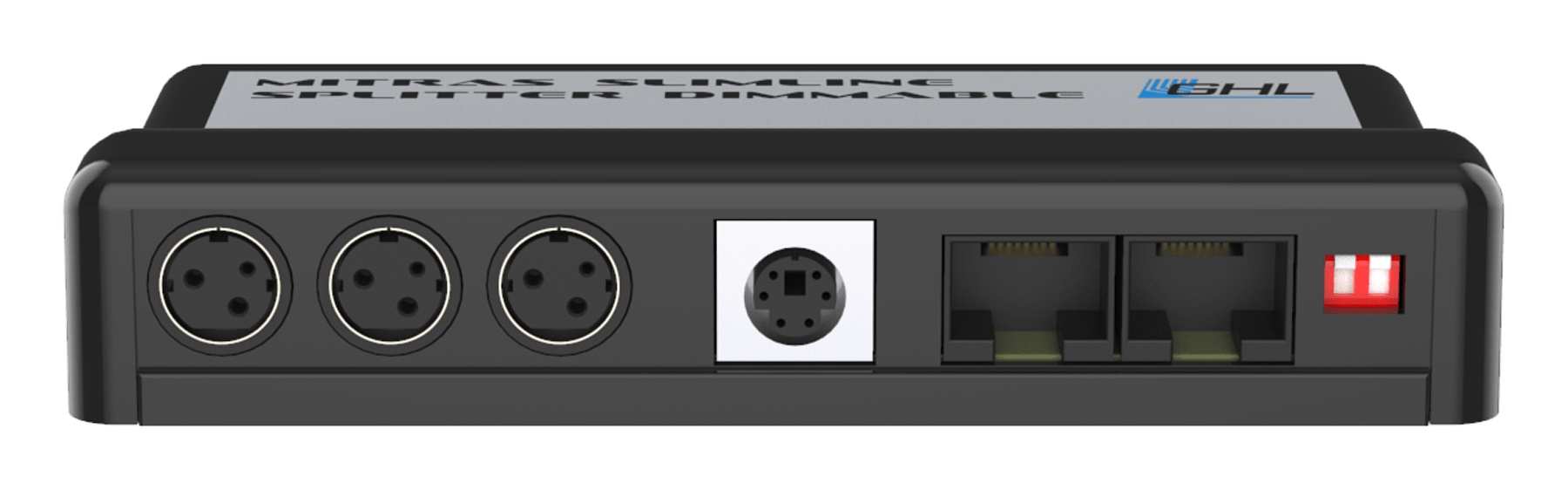

Mitras Slimline Splitter Dimmable

The Mitras Slimline Splitter Dimmable has two outputs for Mitras Slimline and one output for Mitras Slimline RGB.

Both LED-strings of each Mitras Slimline as well as all 3 channels (red, green, blue) of Mitras Slimline RGB can be dimmed independently, in total 7 channels are separately dimmable over one Mitras Slimline Splitter Dimmable.

There are 2 communication ports: The input port is is used to connect to the ProfiLux Mitras port, the output port can be used to daisy-chain several Mitras Slimline Splitter Dimmable. Since up to 8 devices can be daisy-chained a maximum of 16 Mitras Slimline and 8 Mitras RGB can be controlled from one ProfiLux.

A DIP-switch gives you the option to use channels 1 to 7 (default) or channels 9 to 15 of the ProfiLux to dim the connected lights. When 2 or more Mitras Slimline Splitter Dimmable are used and when they have different channel settings up to 14 LED-channels can be controlled independently.

Please note:

  • The total power of all connected lights must not exceed the maximum power of the used power supply, select the power supply accordingly. If needed use multiple Mitras Slimline Splitter Dimmable to distribute the load between several power supplies.
  • Minimum firmware requirements: ProfiLux 4 / 4e version 7.18, ProfiLux 3 version 6.41, ProfiLux Light / Mini version 1.09
  • Minimum software requirement: GHL Control Center 1.1.2.3
h
h

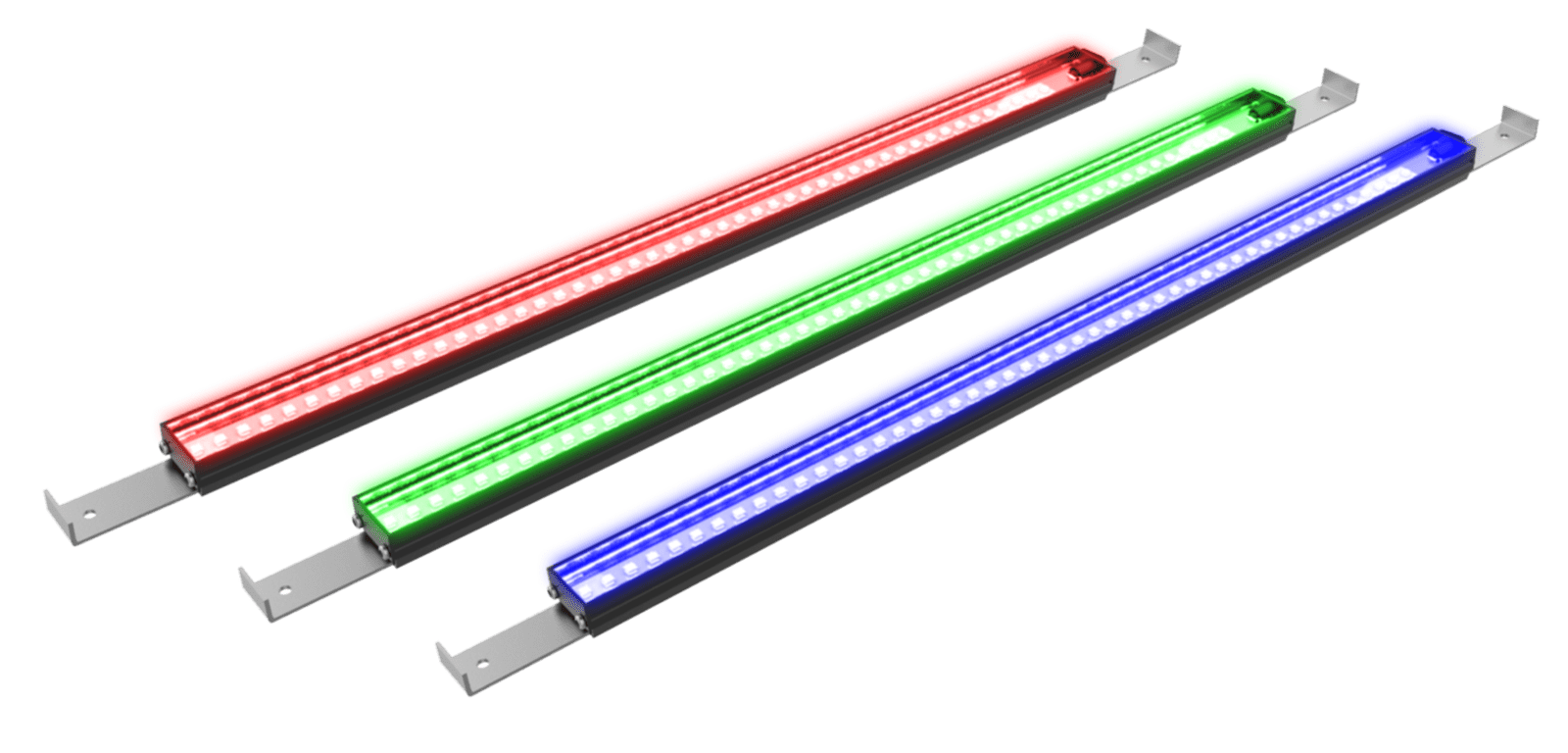

Mitras Slimline RGB

Mitras Slimline RGB can be used in addition to Mitras Slimline luminaires, other luminaires or on its own. It is connected to the Mitras Slimline Splitter Dimmable and has 3 separately dimmable LED color channels: Red, green and blue. No additional power supply unit is required, power is supplied by the existing power supply unit on the Mitras Slimline Splitter Dimmable.

  • any color combination is possible thanks to continuous and separate dimming of all 3 LED color channels, in addition to the 2 or 4 separately dimmable color channels of Mitras Slimline (if present, a total of 5 or 7 independent channels)
  • fine adjustment of light spectrum and light temperature (from cold-white to warm-white)
  • natural simulations and effects such as dawn and moonlight
  • available in 13 lengths, with adjustable brackets
  • waterproof according to IP67
h

Available Mitras Slimline RGB lengths

Model405060708090100110120130140150160
Recom. for tank length [cm]39-5049-6059-7069-8079-9089-10099-110109-120119-130129-140139-150149-160159-170
Light length without cable [cm]33.243.253.263.273.283.293.2103.2113.2123.2133.2143.2153.2
Max. power draw undimmed [W] *4.35.87.28.610.111.513.014.415.817.318.720.221.6

Cross-section of light: 25mm x 16mm (1.0″ x 0.6″)

*) This is the net power draw of the light module. If you compare it with the power of LED lights from other vendors you should keep in mind that they often only mention the higher power draw of the complete system, including the loss of the power supply.
