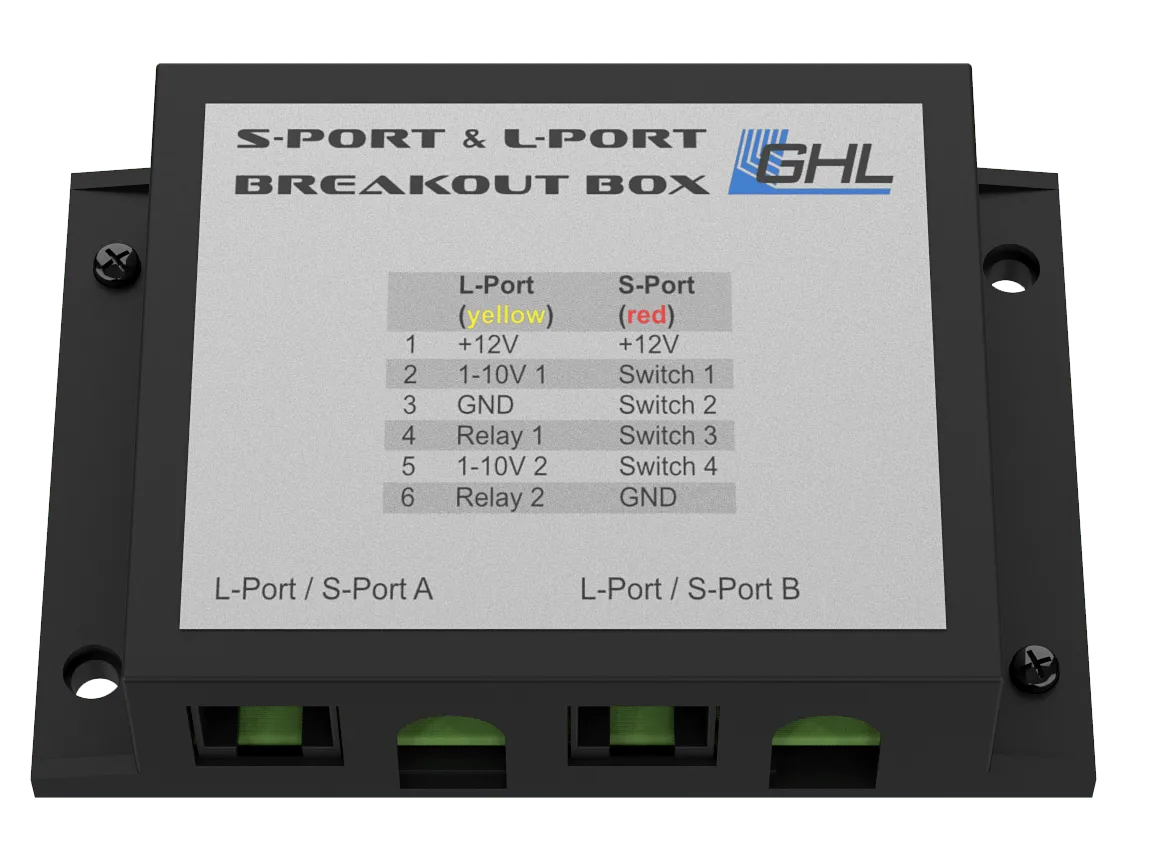

The S-L-Port BoB makes it easy and convenient to connect signal lines to third-party devices with the S-Ports or L-Ports of the ProfiLux or the Expansion Box.
L-ports (1-10V interfaces) can be used to connect controllable pumps or dimmable electronic ballasts, an application example for S-ports would be the control of relays.
Features:

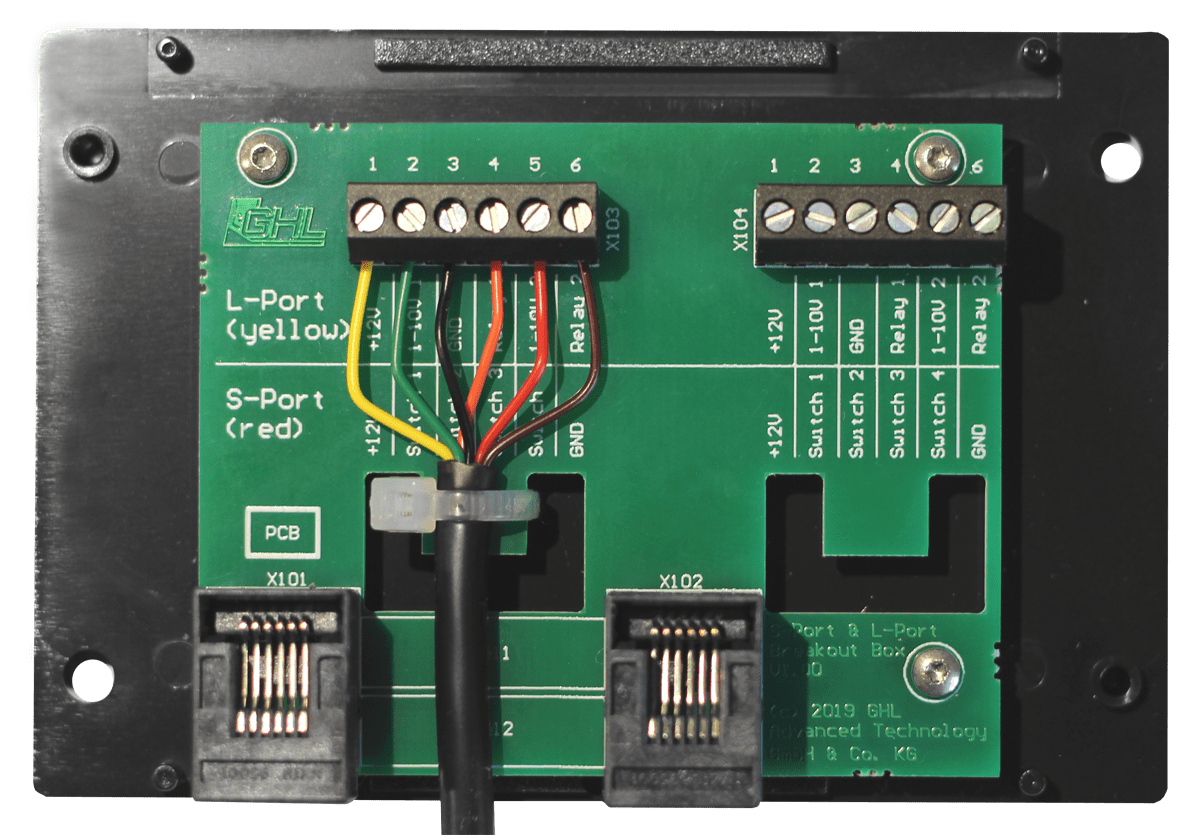

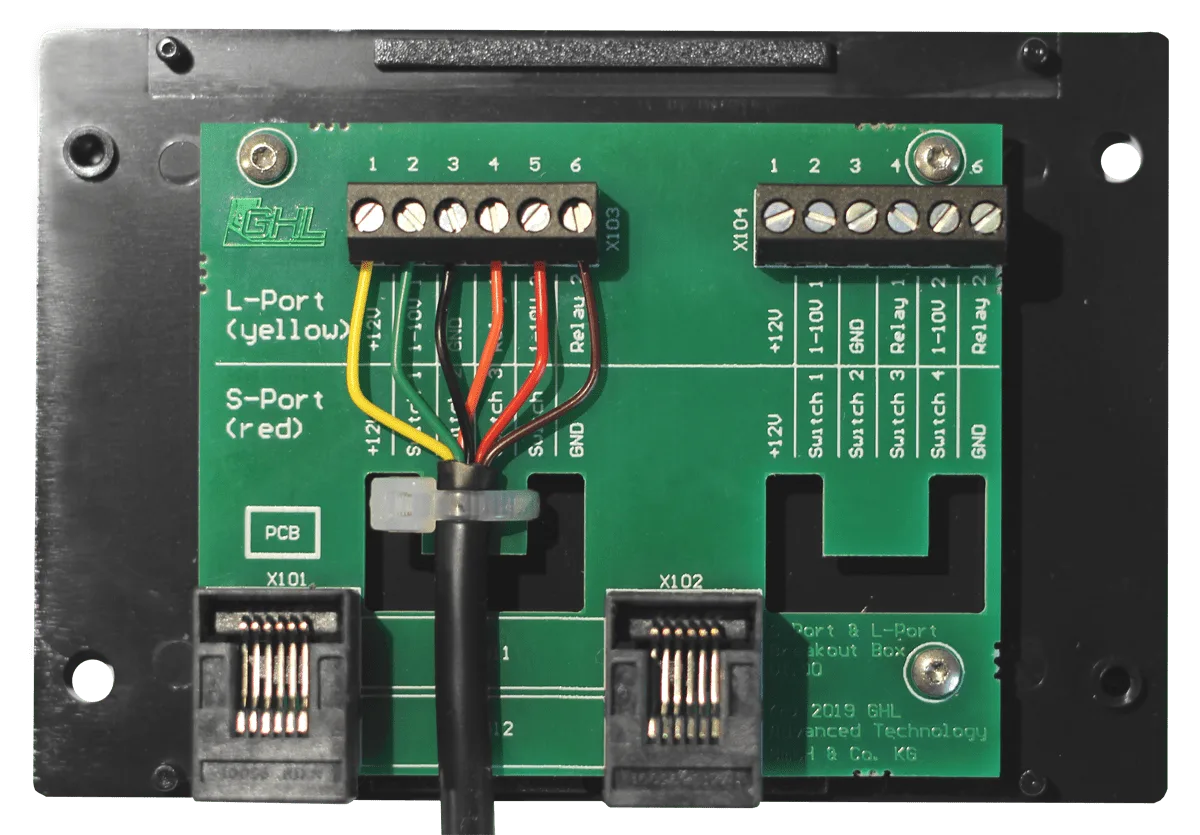

- 2 independent RJ12 connections with associated screw terminal blocks
- cut-outs for cable ties for fixing the cables
- wall mounting possible
Benefits:
- Clean wiring
- Clear labelling of the terminals
- Simple cable fixing
Scope of delivery:
- 2x RJ12 cable 1m
- 2x cable ties
Pin assignment when connected to L-port:
| Pin | Function | |
| 1 | Supply + (output) | 12V, max. 350mA |
| 2 | 1-10V interface 1 | 0V - 10V, max. 20mA |
| 3 | GND | |
| 4 | Relay 1 | max. 100mA (open collector: active = GND, inactive = floating), *2) |
| 5 | 1-10V interface 2 | 0V - 10V, max. 20mA |
| 6 | Relay 2 | max. 100mA (open collector: active = GND, inactive = floating), *2) |
Pin assignment when connected to S-port:
| Pin | Function | |
| 1 | Supply + (output) | +12V, max. 700mA, *1) |
| 2 | digital output/switchable socket 1 | max. 100mA (open emitter: active = +12V, inactive = floating), *2) |
| 3 | digital output/switchable socket 2 | max. 100mA (open emitter: active = +12V, inactive = floating), *2) |
| 4 | digital output/switchable socket 3 | max. 100mA (open emitter: active = +12V, inactive = floating), *2) |
| 5 | digital output/switchable socket 4 | max. 100mA (open emitter: active = +12V, inactive = floating), *2) |
| 6 | GND |
GND = Ground = 0V; *1) only for certain ProfiLux models, at the moment only for ProfiLux Mini/Light WiFi, otherwise not connected; *2) outputs with clamp diode to GND
