LED-Controller

GHL has been working with LED technology for the aquarium hobby for many years now. Our continued research as allowed us to create LED lighting products capable of providing lighting conditions the way nature intended.
We have been manufacturing LED products since 2002. Products include: dimmable led lights for moonlight, sunrise, sunset, and thunderstorm simulations all of which can be found in our product range.

In addition, we also offer drivers for connecting LED luminaires from other manufacturers to the ProfiLux or for DIY lights.

These are the two models we offer:



  • LED Contol 1
  • LED Control4 V2

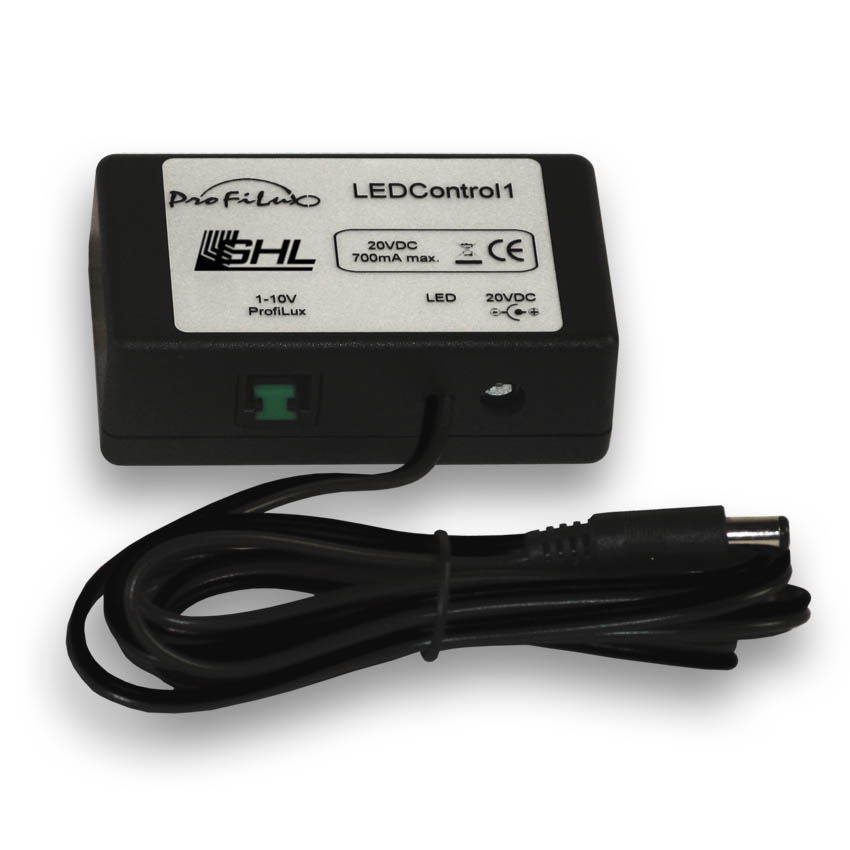

LED Control 1

LED Control 1

With the LED Control-1, it is possible to control and dim third-party products such as TMC Aquaray® of TMC and SunaECO Tropic Marin® with the ProfiLux Controller.

LEDControl1 is simply looped in the aforementioned LED lights between the power supply and lamp, so you can take advantage of the unique illumination features the ProfiLux provides.

To connect a power supply (AC adapter not supplied by LEDControl1) LEDControl1 has a DC power jack. The LED light is connected to the plug of the black connection cable (1.5 m length).

With the included western cable (length ca. 1 m) LEDControl1 is connected to an 1-10 V-interface of the ProfiLux (e.g. L1L2 oder L3L4). With a jumper inside the device you can select, if LEDControl1 should react to an odd or even 1-10 V-interface.

Technical specifications:

  • Max. operation voltage 20V
  • Nominal current 700mA
  • DC-socket for PSU: 4,4mm diameter opening; 1,65 mm diameter center pin (according JEITA RC-5302A JSAJ21); center pin = Plus
  • DC-plug for LED-light: outer diameter 4,0 mm; inner diameter 1,7 mm (according JEITA RC-5320A JSAP2); Center pin = Plus
  • Dimensions: WxHxD: 79x44x25 mm (T + 10 mm for cable connection)
  • Supplied with 2m connection cable with DC socket

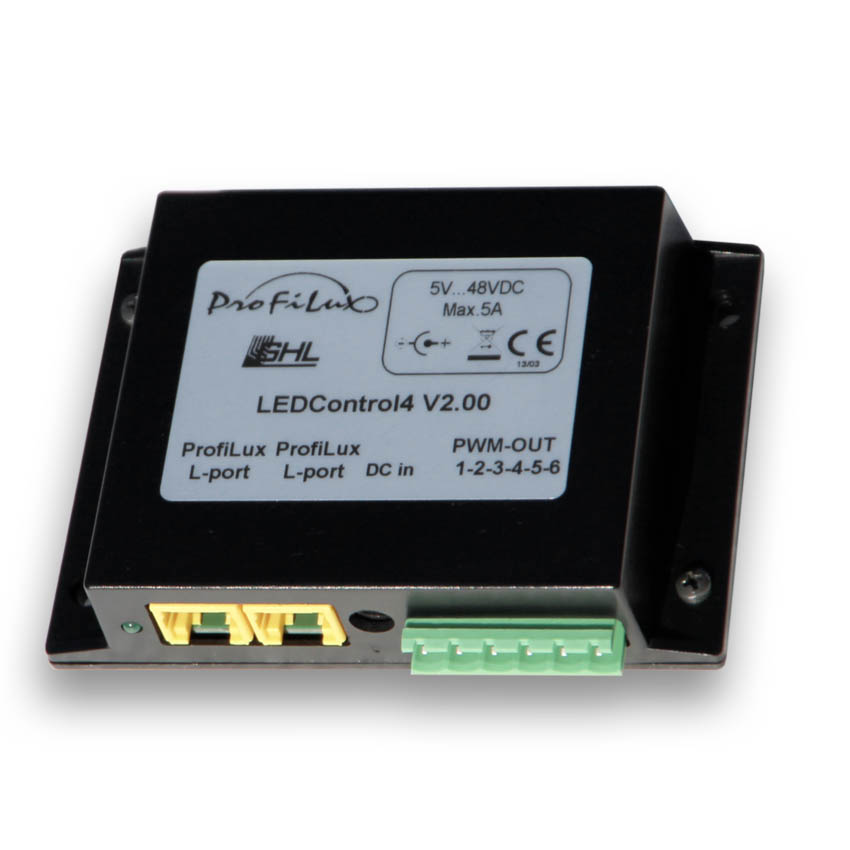

LED Control4 V2

LEDControl4 V2

The LEDControl4 V2 with integrated drivers allows you to dim LED lights, which are operated with a constant voltage such as LED chains that have a series resistor. LEDControl4 V2 does not include acurrent controller, just the minus potential of the connected power supply is clocked through PWM!

We recommend checking if your LED light is suitable for operation at a constant voltage, otherwise your LED light and LEDControl4 V2 can be destroyed!

LEDControl4 connects to one of the 1-10V interfaces of ProfiLux and outputs PWM signals, which can be used to control LED lights or LED drivers.

Some LED lights manufacturers offer suitable adapter cables to connect to your lights on LEDControl4 V2.

Technical specifications:

  • Input voltage range: 5V … 48V, polarity + inside, – outside, DC-plug, 5.5/2.1mm
  • Max. current per channel or in sum: 5A
  • Number of channels: 4
  • Input voltage range analog inputs: 0V … 10V
  • PWM-switching frequency: 122Hz

You can download the manual to LEDControl4 V2 in our download area.



Connecting a LED-Light to LEDControl4 V2:





Connection of LED drivers with PWM outputs to LEDControl4 V2
