Mitras-Simu-Stick

SimuBanner_E_oT_1920x959

The Ultimate in Lighting Effects

MitrasSimu stick creates stunning lighting effects in your aquarium or terrarium and is the perfect supplement to your main illumination.

Independently controllable via 4 separate dimmable light colors (neutral white, red, green and blue). You can create a variety of lighting scenarios in your aquarium:

  •     Moonlight
  •     Sunset and Sunrise
  •     Thunderstorm / Lightning

For light dimming and simulations, a suitable control unit (optionally a ProfiLux Controller or ManuDimm) is required.

You can operate the luminaire with or without controller (ProfiLux or ManuDimm).

Without control unit no dimming or simulation is possible. The LED light will illuminate at 100% and can only be switched on or off.

The MitrasSimu stick should only be used as a supplement to the main lighting of your aquarium or terrarium.

Sophisticated and Elaborate

Benefit from our many years of experience since 2002, we offer dimmable led lights for simulating moonlight, sunrise and thunder storm.

Premium Waterproof sealed quality LEDs from Samsung (model 5060) and the anodized aluminum body with cooling fins ensure a long service life and maximum luminous efficiency.

The sophisticated design is complemented by the sliding bracket with screw fixtures.

To operate the lamp the MitrasSimuDriver is required additionally (not included), which allows you to operate up to 4 effect lamps simultaneously.

If you want to operate more than 4 lights you have the possibility to expand the driver with additional Ycables (PL-YL2) which are plugged to the respective control unit.

The luminaire is available in two different lengths (550 mm and 950 mm) and is equipped with a 2 m long connection cable for connection to the MitrasSimuDriver.

Features

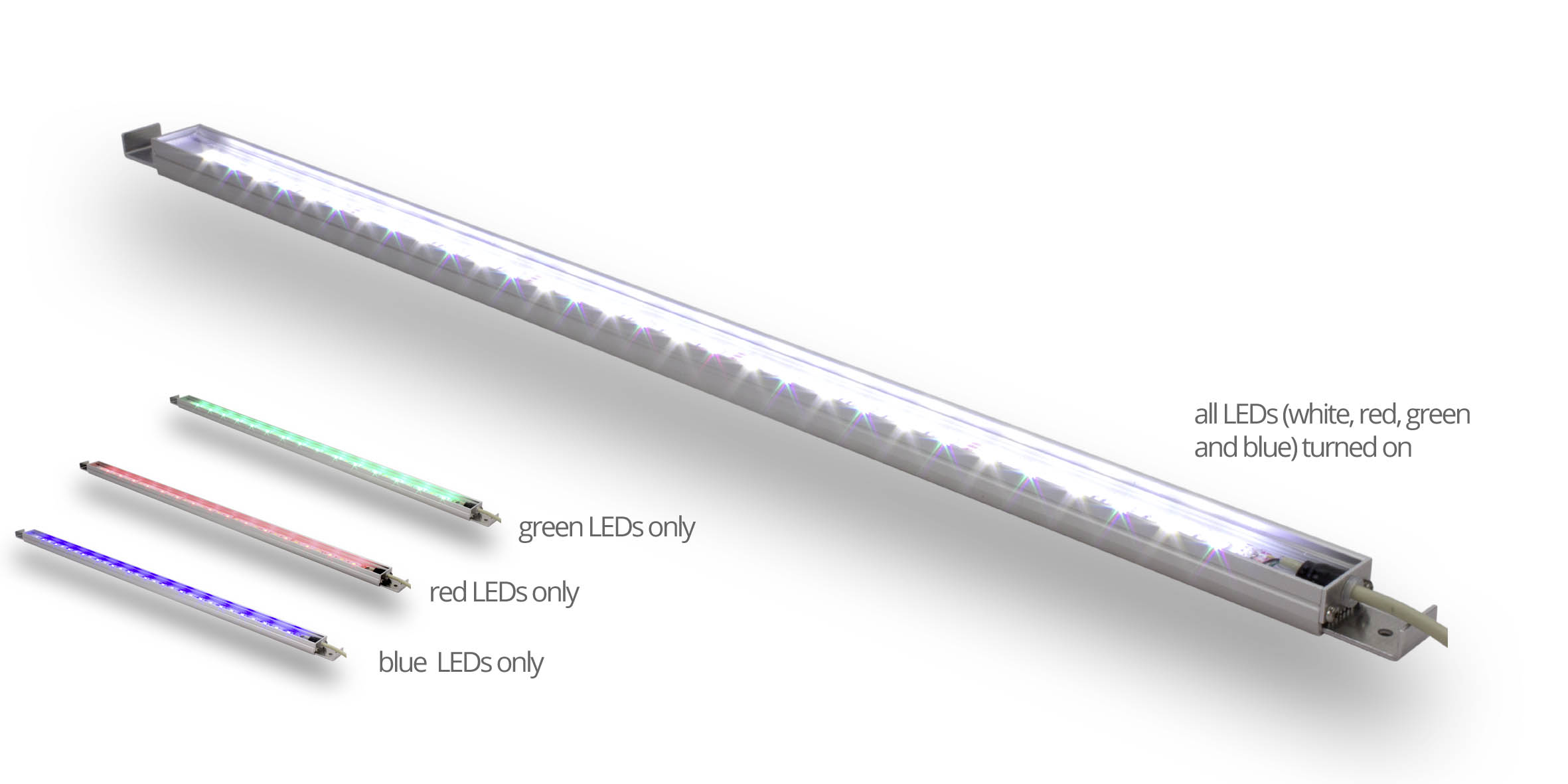

Mitras-Simu-Overview









  • Anodized aluminum body with cooling fins
  • Excellent cooling for long life and maximum luminous efficiency
  • Shiftable mounting brackets
  • Availbale in several lengths, 55 und 95 cm
  • Waterproof sealed (IP67)
  • High-qualitiy LEDs from Samsung (Typ 5060)
  • Cable length to Mitras-Simu-Driver 2 m

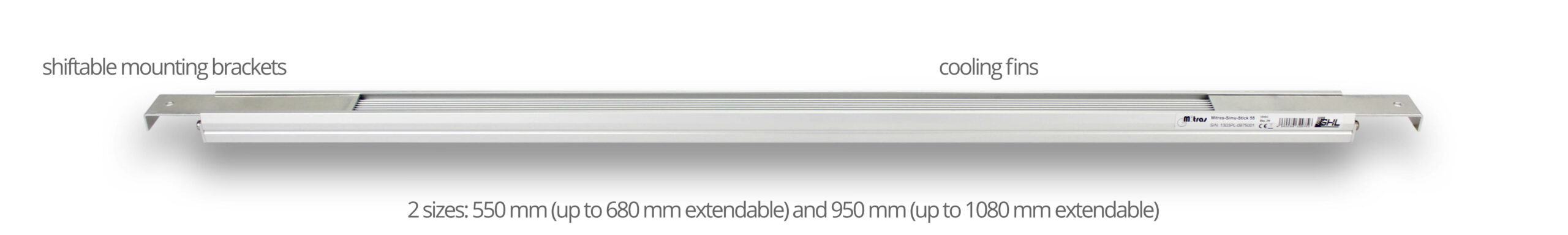

MitrasSimuStick: View from above / side

Mitras-Simu-Stick Top
PC-Software & Apps by GHL

Variable Light Spectrum

Adjust the desired light spectrum easily via ProfiLux with the Light Composer by the PC Software GHL Control Center (GCC).

Either you just take over one of the existing lighting projects for your luminaire, or submit your own project.

Waterproof

Waterproof

According to IP 67

LED-Leuchten_nicht_austauschbar_horizontal_Deutsch_MitrasSimu

Energy Label

Control and Operation with ProfiLux

Operate Mitras-Simu-Stick comfortably via ProfiLux. This allows you to control the light colors and brightness at all times, as needed.

Thunderstorm simulations are possible if controlled by ProfiLux.

The ProfiLux Computer is connected to the for operation also needed Mitras-Simu-Driver with  included western cables.

Operation and Conrol without ProfiLux

If you don´t have a ProfiLux Conroller, but still want to realize the lighting effects (without thunderstorm) and the dimming, you need the accessory ManuDimm. That device allows to dim the Mitras-Simu-Stick manually.

For the separate dimming of all lighting channels (white / red / blue / green) are a total of two ManuDimm devices required. They are connected to the yellow inputs (1-10 V interfaces) of MitrasSimuDriver.

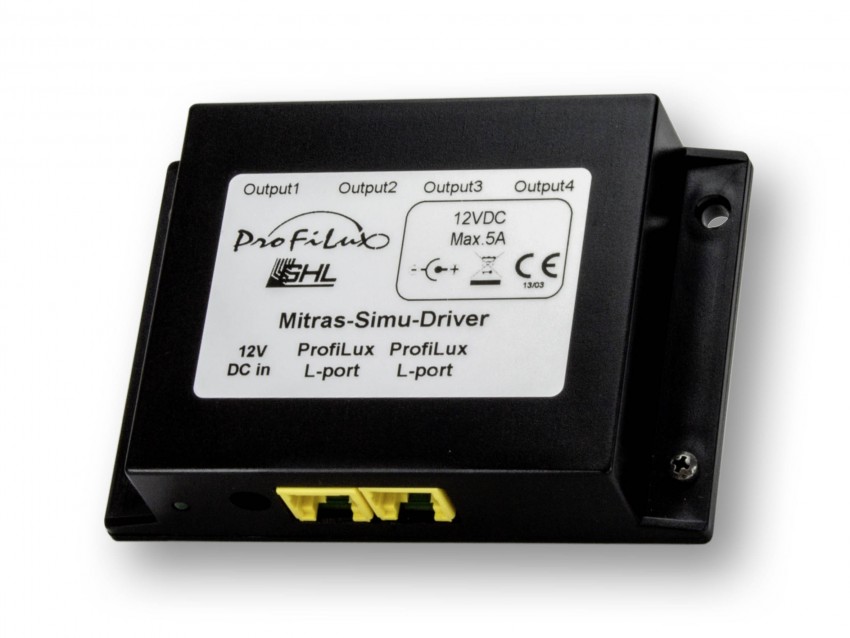

Mitras-Simu-Driver

With MitrasSimuDriver up to 4 Mitras-Simu-Sticks can be connected.

There are 2 L-port inputs (= 4 x 1-10 V interface) for connection to a ProfiLux (or other controller) available.

The connected MitrasSimuSticks are dimmed depending on the attached 1-10 V signals.

If the Lports are left freeall 4 LED channels are operated with 100% this allows use of MitrasSimu-Sticks without controller (ProfiLux or ManuDimm). No dimming or thunderstorms are possible then.

A simple shutdown can be achieved via a timer clock.

Mitras-Simu-Driver
  • Inputs: 2 x L-port ( = 4 x 1-10V-interface) to connect a controller (e.g. ProfiLux or ManuDimm)
  • Outputs: 4 x connector for Mitras-Simu-Stick
  • 4 separately dimmable channels (at all 4 outputs synchronously)
  • Output of flashes during ProfiLux thunderstorm simulation
  • Incl. power supply unit 12V / 5A
  • Incl. 2 connection cables to the 1-10V-outputs of the controller (ProfiLux or ManuDimm)

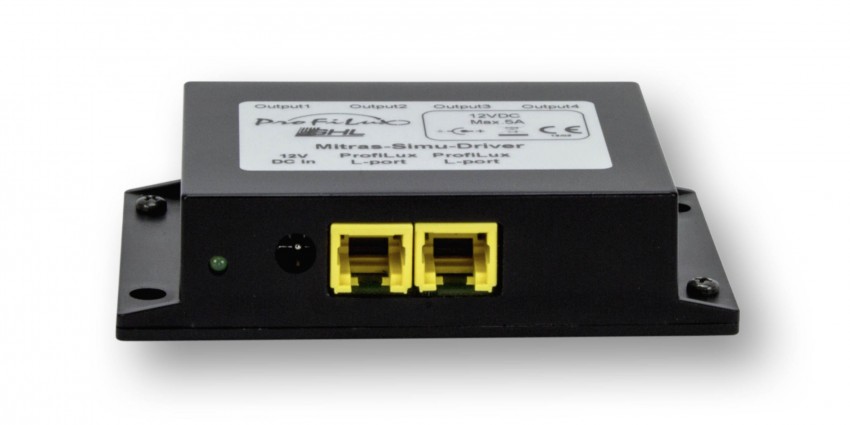

Mitras-Simu-Driver_Inputs

Inputs:
2 x L-ports (4 x 1-10V-interface)

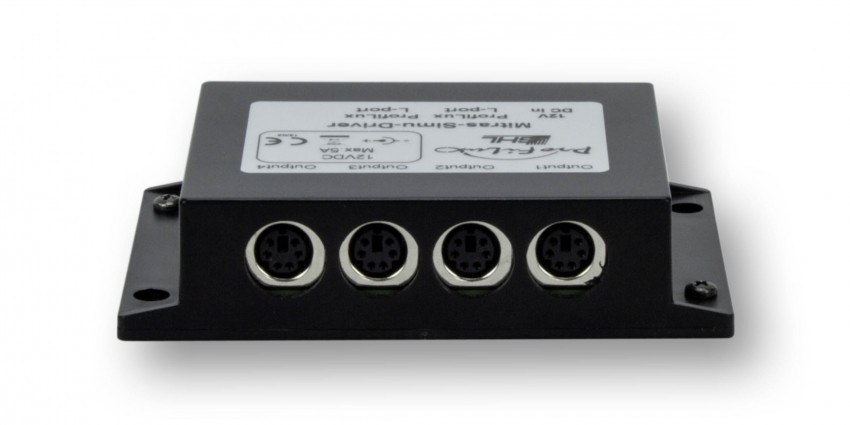

Mitras-Simu-Driver_Outputs

Outputs:
4 x ports for Mitras-Simu-Stick

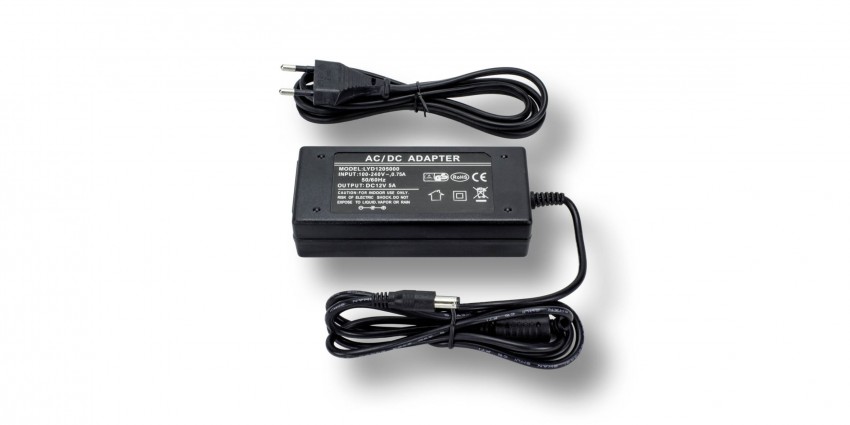

Mitras-Simu-Driver_PSU

Power supply 60 W with Euro-cable
