Powerhub 1 IL PnP System

Powerhub 1 IL PnP System

1.199,20 €

Includes 19% VAT
plus shipping
Delivery Time: Immediate delivery (abroad may vary)

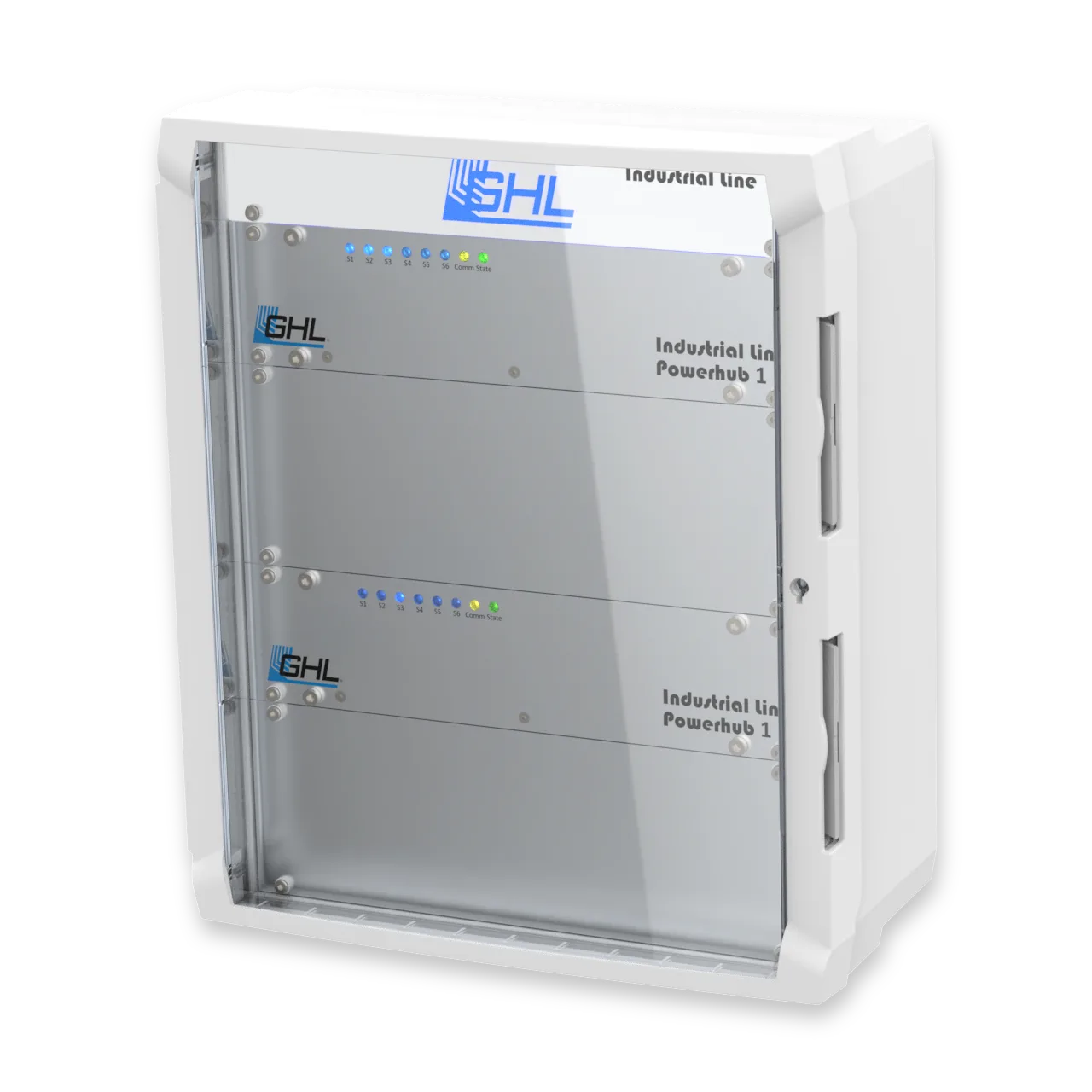

Complete Industrial Line power switching system, fully pre-assembled and ready to install. Includes two Powerhub 1 IL units, enclosure, GHL logo frontpanel, and blanking panels. 12 individually controllable relay outputs via Phoenix screw terminals in a single enclosure. Requires a ProfiLux controller for operation. All units mounted and wired — simply connect to your ProfiLux and wire in your devices.

For the full product page, visit:

https://www.aquariumcomputer.com/products/industrial-line/

Manufacturer: GHL Advanced Technology GmbH & Co. KG
Marie-Curie-Straße 20
67661 Kaiserslautern
Germany
BaseEnclosure_IL_Front

Basic housing IL (39HU)

IP54-rated enclosure for up to 3 Industrial Line slide-in units. Hinged lid with transparent window and rubber seal, threaded profiles for device mounting, slideable bottom cover for cable and tube routing. Wall-mountable. 39HU usable interior space.

279,90 € Includes 19% VAT

GHL Logo Frontpanel IL (5HU)

Industrial Line slide-in frontpanel (5HU) with RGB-illuminated GHL logo. Displays system status through color and blink patterns. Connects to the RGB logo port available on most IL devices. No power supply required.

47,90 € Includes 19% VAT

Powerhub 1 IL (7HU) × 2

Industrial Line slide-in unit (7HU) for power switching within the ProfiLux ecosystem. 6 individually controllable relay outputs on a single removable Phoenix contact terminal block. Integrated switch with 15A fuse protection. Connected and controlled via PAB (ProfiLux Aquatic Bus).

369,90 € each Includes 19% VAT
2 Blindplatten_850x850

Blanking panel IL with or without opening × 2

Aluminum blanking panel for gaps between devices in Industrial Line housings. Available in 7 heights (4HU–10HU), each with or without opening for tube routing.


PAB-Cable

2x RJ45


Pre-assembly Industrial Line (without KHD/IOND)

Professional pre-assembly service for Industrial Line systems without KH Director IL or ION Director IL. All slide-in units and blanking panels mounted, PAB wired, Logo Frontpanel and Control Pad connected (if ordered). Power supplies are not connected.

72,90 € Includes 19% VAT
Wishlist
Category:

Description

The Powerhub 1 IL PnP System delivers 12 individually controllable relay outputs in a ready-to-install Industrial Line enclosure — ideal for professional aquaculture, research, and advanced aquarium installations requiring centralized power switching with permanent wiring. Everything is pre-selected, matched, and pre-assembled — no sourcing decisions, no assembly required.

The system houses two Powerhub 1 IL units in a single IP54-rated Industrial Line enclosure. Each unit provides 6 individually controllable relay outputs via detachable Phoenix screw terminals, allowing permanent wiring of pumps, heaters, valves, or other devices directly into the installation. The Phoenix terminal connection is tool-free to detach, making maintenance and reconfiguration straightforward.

Both units connect to a ProfiLux controller (ProfiLux IL, ProfiLux 4, or ProfiLux 4e) via PAB (ProfiLux Aquatic Bus). No separate power supply is required — each unit derives its internal operating voltage directly from the connected mains supply. Each unit is protected by an integrated fuse (15A).

The GHL Logo Frontpanel IL and blanking panels complete the front of the enclosure. Pre-assembly is included: all units are mounted, PAB cabling is wired, and the logo frontpanel is connected.

Additional information

PAB-Cable

Cable length

0,5 m
Warnings and safety information:

This product is intended exclusively for use in aquariums, terrariums, or similar applications. It must not be used for other purposes.
Not suitable for children or unattended operation. For indoor use only.

Always ensure proper installation and regular maintenance according to the included safety instructions. There is a risk of electric shock if the product is installed or used incorrectly.

Before installation, cleaning, or maintenance, always disconnect the product from the power supply.
For detailed safety, maintenance, and disposal information, please refer to the printed safety documentation provided by GHL Advanced Technology GmbH & Co. KG.
