ProfiLux IL PnP System (with GCP)

ProfiLux IL PnP System (with GCP)

1.403,20 €

Includes 19% VAT
plus shipping
Delivery Time: Immediate delivery (abroad may vary)

Complete ProfiLux Industrial Line system, fully pre-assembled and ready to use. Includes enclosure, ProfiLux IL controller, GHL Control Pad IL touchscreen, Logo Frontpanel, power supply, blanking panels, and professional pre-assembly. Simply mount, connect power, and start.

For the full product page, visit:

https://www.aquariumcomputer.com/products/industrial-line/

Manufacturer: GHL Advanced Technology GmbH & Co. KG
Marie-Curie-Straße 20
67661 Kaiserslautern
Germany
BaseEnclosure_IL_Front

Basic housing IL (39HU)

IP54-rated enclosure for up to 3 Industrial Line slide-in units. Hinged lid with transparent window and rubber seal, threaded profiles for device mounting, slideable bottom cover for cable and tube routing. Wall-mountable. 39HU usable interior space.

279,90 € Includes 19% VAT

GHL Logo Frontpanel IL (5HU)

Industrial Line slide-in frontpanel (5HU) with RGB-illuminated GHL logo. Displays system status through color and blink patterns. Connects to the RGB logo port available on most IL devices. No power supply required.

47,90 € Includes 19% VAT
ProfiLux IL_front_1500x1500

ProfiLux IL (15HU)

ProfiLux IL slide-in unit (15HU) – the full-featured ProfiLux 4 aquarium controller in an aluminum Industrial Line housing. Measurement and control of pH, temperature, redox/ORP, and conductivity. 32-channel illumination control, WiFi, USB, graphical display with navigation keys, expandable via Expansion Cards and PAB. Power supply not included.

679,89 € Includes 19% VAT
2 Blindplatten_850x850

Blanking panel IL with or without opening × 2

Aluminum blanking panel for gaps between devices in Industrial Line housings. Available in 7 heights (4HU–10HU), each with or without opening for tube routing.

GCP IL_front_850x850

GHL Control Pad IL

A dedicated 24/7 touchscreen display for your ProfiLux IL.
Provides instant access to key measurements, manual controls, and system actions – no phone or app needed.
Designed for installation inside GHL Industrial Line enclosures.

259,90 € Includes 19% VAT

Power supply 12V/1.5A, incl. power cord

Grounded power supply (12V/1.5A) for all ProfiLux controllers (all versions), Expansion Box 1 and 2, and the original GHL Doser (V1). Required accessory for Industrial Line units that operate on 12V. Wide-range input (100–240V, 50/60 Hz) with country-specific IEC power cord. Protective earth connection for maximum EMI immunity and electrical safety.


Pre-assembly Industrial Line (without KHD/IOND)

Professional pre-assembly service for Industrial Line systems without KH Director IL or ION Director IL. All slide-in units and blanking panels mounted, PAB wired, Logo Frontpanel and Control Pad connected (if ordered). Power supplies are not connected.

72,90 € Includes 19% VAT
Wishlist
Category:

Description

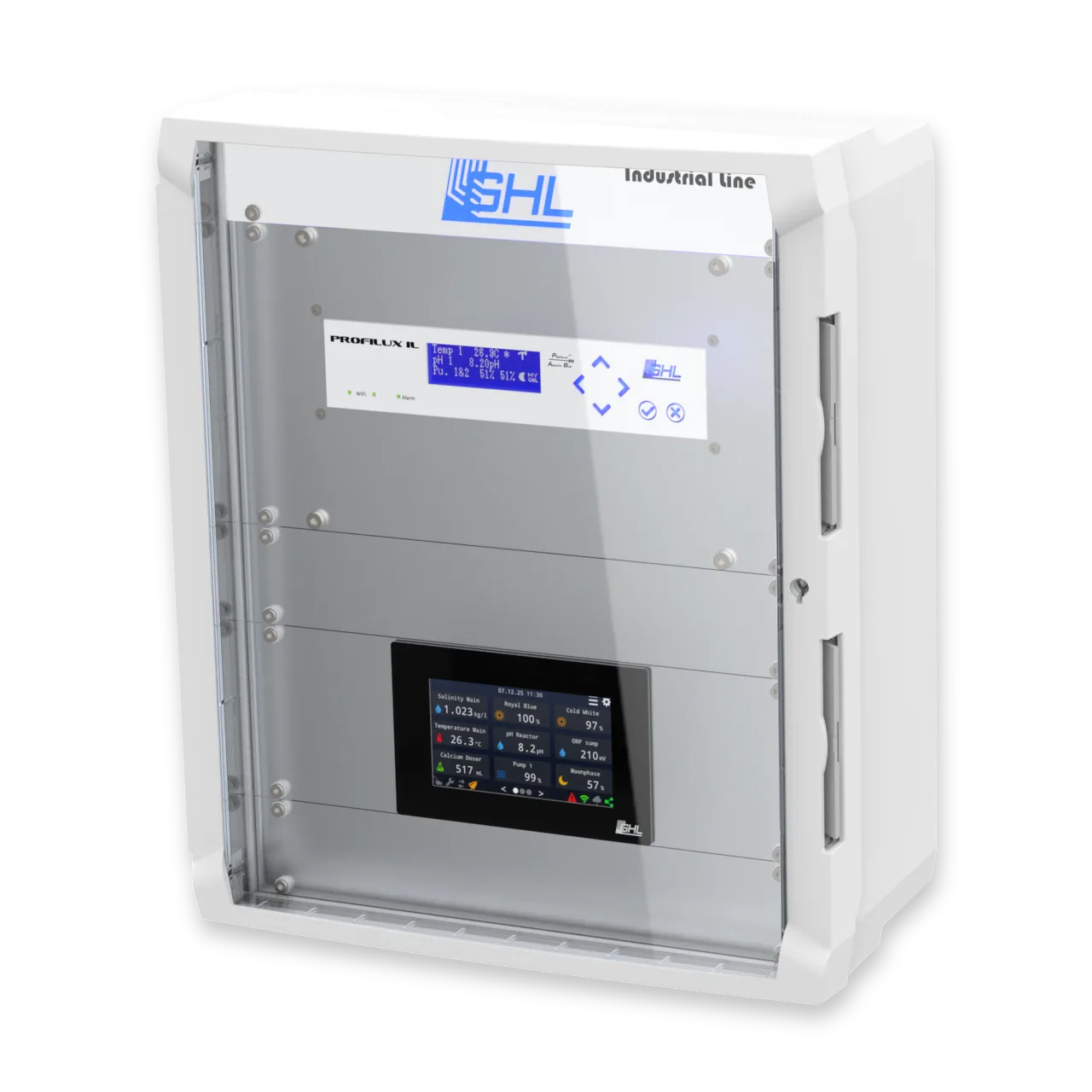

The ProfiLux IL PnP System (with GCP) is a complete, professionally pre-assembled Industrial Line system based on the ProfiLux 4 aquarium controller — ready to mount and operate straight out of the box.

All slide-in units are factory-mounted inside the IP54-rated Basic Housing IL: the ProfiLux IL, GHL Control Pad IL, and Logo Frontpanel are fully wired — GCP and Logo Frontpanel connected to their respective ports, all blanking panels installed. The power supply is included but not pre-connected.

The integrated GHL Control Pad IL provides a dedicated 24/7 touchscreen display for your ProfiLux — showing live measurements, manual controls, and system status at a glance, without a phone or PC.

Complete system monitoring and control is handled via the GHL Connect app, the myGHL cloud platform, the built-in web interface, or GHL Control Center PC software.

Additional information

ProfiLux IL (15HU)

Illumination Channels

32
1-10 V Interfaces

6 (optional 30)
Controllable, separately switchable Sockets

64
Dosing Pump Control

Yes
Stream Pump Control

Yes
Controls GHL automatic feeder

Yes
Graphical display

Yes
Level

Yes
Automatic water change

Yes
LAN-Option

Optional (via PLM-WiFiLAN expansion card)

Power supply 12V/1.5A, incl. power cord

Country Version

DE, Schuko, UK, CH, AUS, USA
Warnings and safety information:

This product is intended exclusively for use in aquariums, terrariums, or similar applications. It must not be used for other purposes.
Not suitable for children or unattended operation. For indoor use only.

Always ensure proper installation and regular maintenance according to the included safety instructions. There is a risk of electric shock if the product is installed or used incorrectly.

Before installation, cleaning, or maintenance, always disconnect the product from the power supply.
For detailed safety, maintenance, and disposal information, please refer to the printed safety documentation provided by GHL Advanced Technology GmbH & Co. KG.
