Description
High-performance aquarium fan, silent, ball bearings and brushless motors, 12 V, with universal power supply, housing powder-coated aluminum in black or white, Protection class IP55.

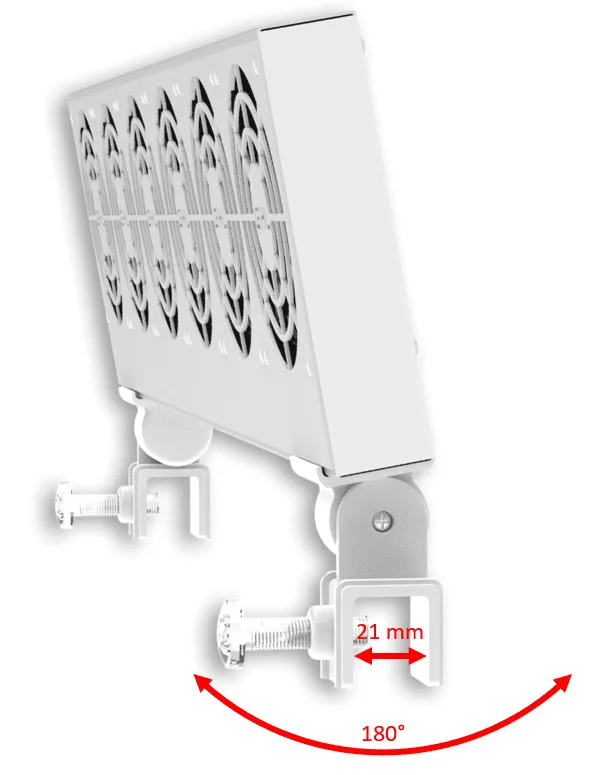

PropellerBreeze 3 is suited for thick glass up to 21 mm and can be tilted.

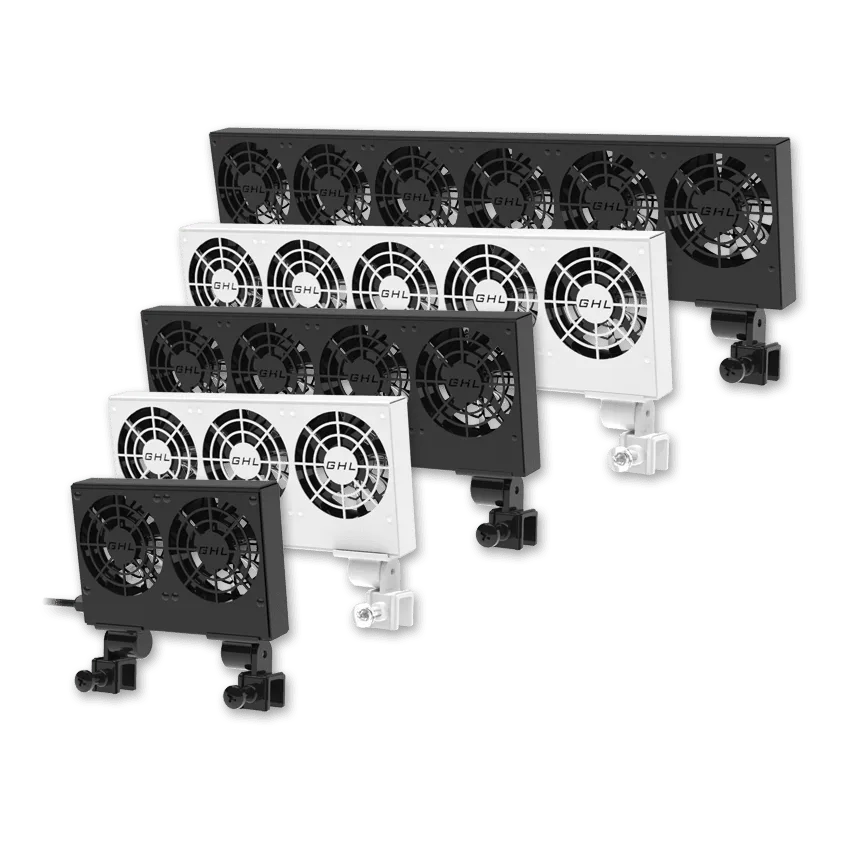

Dimensions without mounting brackets /air flow rate:
2fold: 40 x 125 x 184 mm / 120.000 l/h
3fold: 40 x 125 x 276 mm / 180.000 l/h
4fold: 40 x 125 x 368 mm / 240.000 l/h
5fold: 40 x 125 x 460 mm / 300.000 l/h
6fold: 40 x 125 x 552 mm / 360.000 l/h.
Mounting
The universal holder is suitable for attaching to various glass thicknesses or screwing on. The four holding feet are covered with plastic. This protects the glass and prevents water from coming into contact with aluminum.
The PropellerBreeze fan batteries’ brushless and ball-bearing fan motors are splash-proof. However, they should be mounted to protect them from excessive humidity, condensation, or extensive splashing.
Air with a high salt content, such as that found in a closed cabinet above a technical basin, should also be avoided.
The included power supply is energy efficient, according to Energy Star. (ENERGY STAR and the ENERGY STAR mark are registered U.S. trademarks).
Fan speed control
PropellerControl enables the ProfiLux computer to operate the PropellerBreeze fan with speed control.
PropellerControl is connected to a 1-10V interface of the ProfiLux (from Plus (II) ).
The fan’s speed is automatically adjusted depending on exceeding the set temperature. Thus, the fan always operates as fast as necessary and as quietly as possible.
