Name: Mitras LX 7X06 IL
SKU: PL-2106-VAR
Availability: InStock

Mitras LX 7X06 IL

1.199,90 €

Includes 19% VAT

Delivery Time: Immediate delivery (abroad may vary)

High-power LED luminaire for demanding aquatic environments. IP67-rated, fanless passive cooling, 250W max output with 72 high-power LEDs across 6 clusters and 9 independently dimmable channels. Available in Freshwater, Marine, Coral Pop, and Aquaculture versions. Built-in WiFi, USB, and RF module for standalone or ProfiLux-integrated operation. Developed and manufactured in Germany.

Manufacturer: GHL Advanced Technology GmbH & Co. KG
Marie-Curie-Straße 20
67661 Kaiserslautern
Germany

Mitras LX7 IL Type

Country Version

Clear

Wishlist

Description

The Mitras LX7 IL is GHL’s Industrial Line LED luminaire, engineered for professional installations in aquaculture, public aquariums, coral farming, and demanding hobbyist setups.

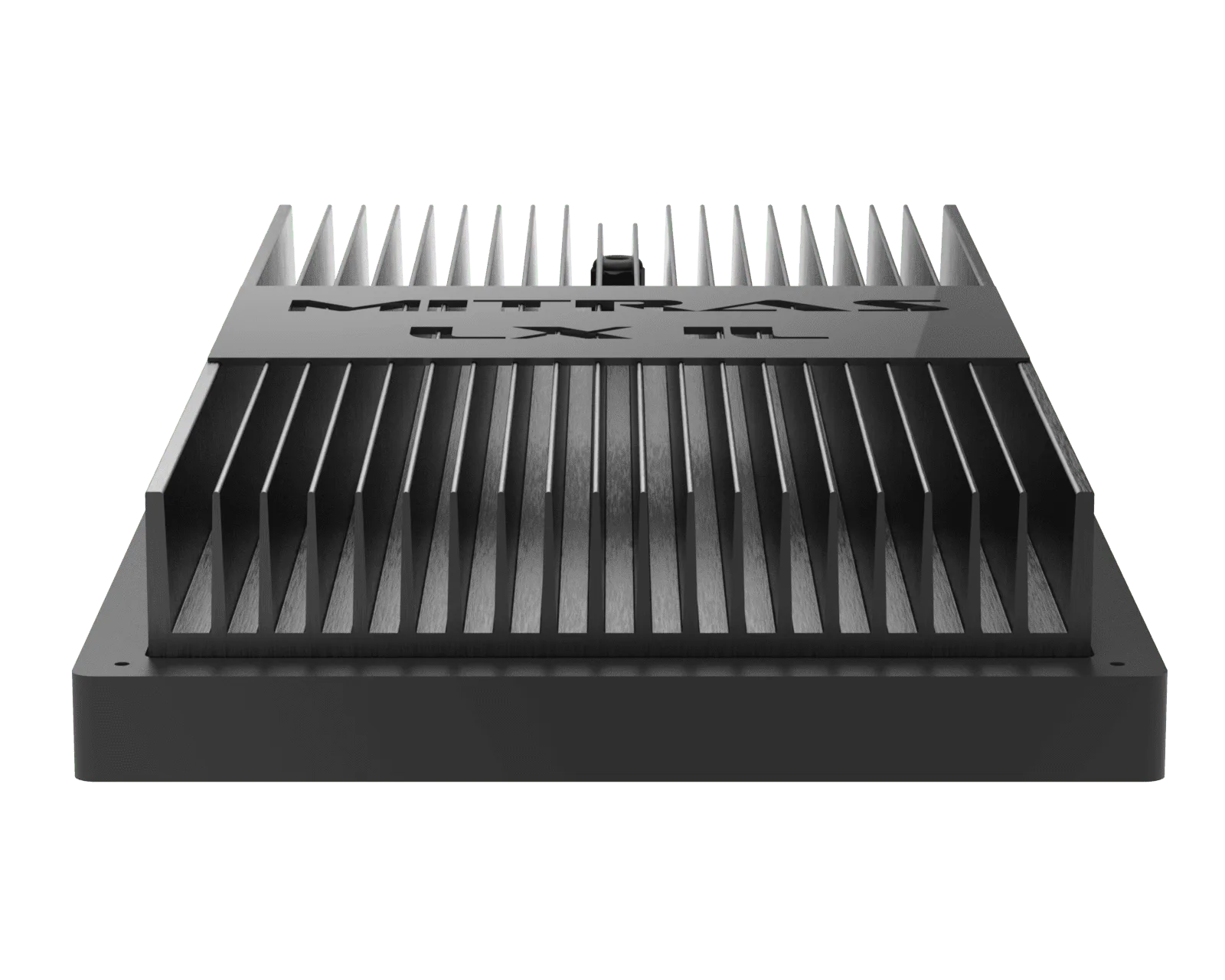

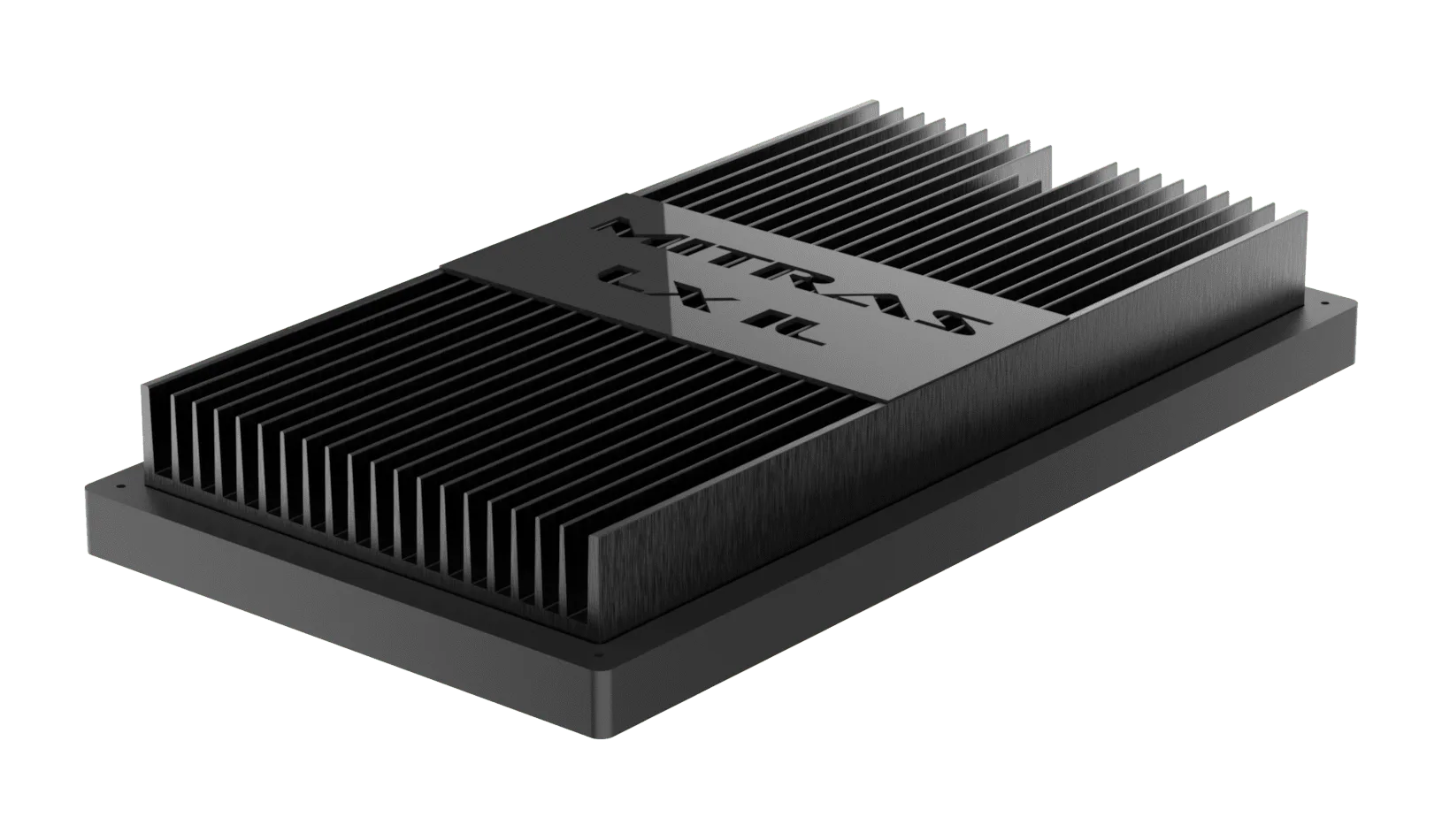

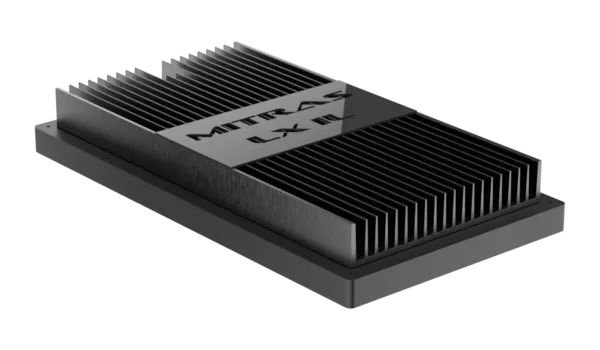

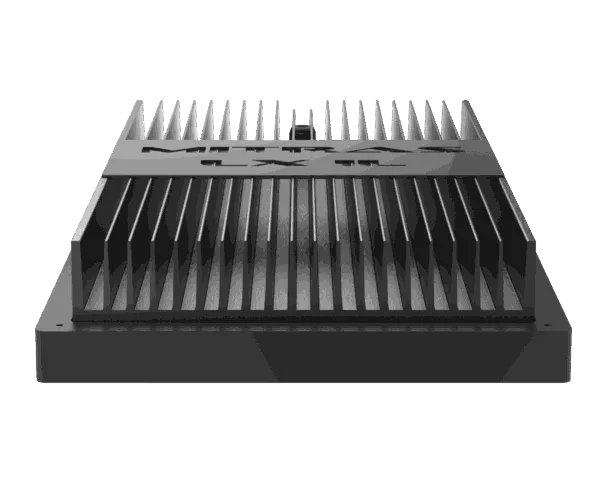

With its IP67-rated aluminum housing and oversized passive heat sink, it operates completely silent and withstands high humidity, splashes, and even temporary submersion. The seawater-resistant anodized coating meets DIN 81249-1 standards.

Featuring GHL’s Total Reflection and Diffusion Technology (TRDT™) and a CRI >95, it delivers uniform, flicker-free illumination with exceptional color accuracy. Choose between High Efficiency Mode (165W) for optimized energy savings or High Output Mode (250W) for maximum brightness.

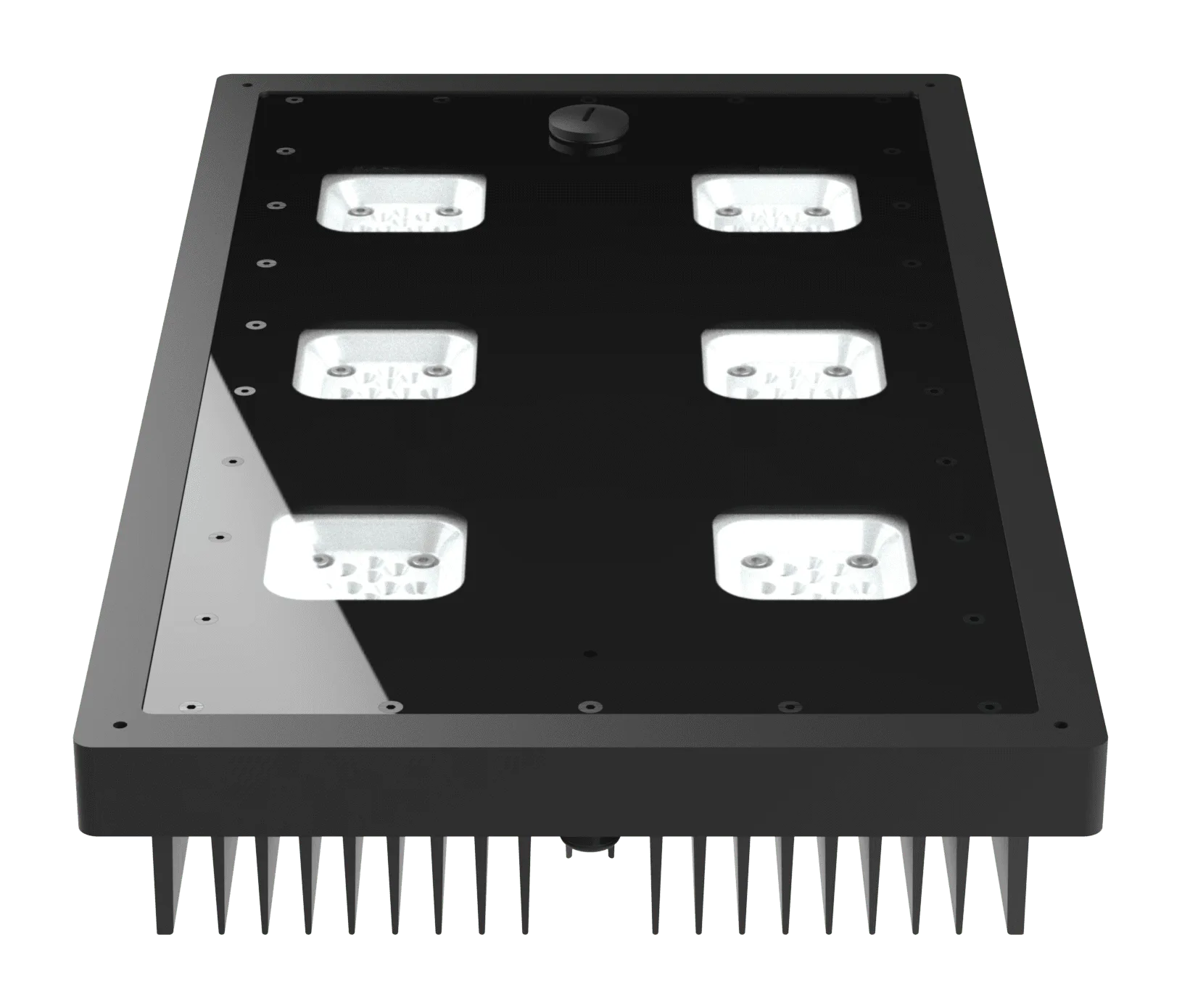

The Mitras LX7 IL operates standalone with full functionality or integrates seamlessly into the ProfiLux ecosystem. Its 32-bit ARM processor and interchangeable LED clusters ensure the luminaire stays future-proof.

The Mitras LX7 IL features four M4 threaded inserts (one in each corner) for flexible mounting. Use them with the optional Hanging Kit Mitras LX7 IL for ceiling suspension with height adjustment, or mount the luminaire to any railing or frame using standard M4 hardware. Mounting hardware is not included with the luminaire.

Additional information

Shipping weight	7,6 kg
Shipping dimensions	N/A
Mitras LX7 IL Type	LX 7006 IL Freshwater version, 6 LED-Cluster, 9 channels: Royal blue, blue, neutral white, cool white, true green, sky white, yellow, red, hyper red, LX 7206 IL Marine water version, 6 LED-Cluster, 9 channels: Royal blue, blue, cool white, true green, sky white, blue white, hyper red, hyper violet, ultraviolet, LX 7506 IL Coral Pop version, 6 LED-Cluster, 9 channels: Blue, royal blue, deep blue, hyper violet, deep violet, UVA, cold white, cool white, daylight white, LX 7406 IL Aquaculture version, 6 LED-Cluster, 9 channels: Royal blue, blue, cool white, neutral white, true green, yellow, red, hyper red, ultraviolet
Country Version	DE, Schuko, UK, CH, AUS, USA

Scope of delivery

These items are included:

Luminaire Mitras LX 7×06 IL
Efficient wide range power supply IP 67 with lockable safety plug
USB cable

Product dimensions

L × W × H Luminaire: 420 mm × 230 mm × 60 mm (16.5″ x 9.1″ x 2.36″)

L × W × H Power supply: 245 mm × 68 mm × 40 mm (9.6″ x 2.7″ x 1.6″)

Warnings and safety information:

This product is intended exclusively for use in aquariums, terrariums, or similar applications. It must not be used for other purposes.
Not suitable for children or unattended operation. For indoor use only.

Always ensure proper installation and regular maintenance according to the included safety instructions. There is a risk of electric shock if the product is installed or used incorrectly.

Before installation, cleaning, or maintenance, always disconnect the product from the power supply.
For detailed safety, maintenance, and disposal information, please refer to the printed safety documentation provided by GHL Advanced Technology GmbH & Co. KG.
