Shipping starts October 1st, 2026
The next generation of Mitras LX. Experience and refinement in leading LED-illumination solutions since 2004, united in one fixture.
Designed without compromise.
132
High-power LEDs
+ 3 Moon Light LEDs
+ 3 Moon Light LEDs
Max 12
Channels
+ Moon Light Channel
+ Moon Light Channel
250 W
Fixture
Power
Power
125 cm
Light spread (LPS)
95 cm for SPS
95 cm for SPS
Aesthetics Meets Performance
A beautiful home. A vivid aquarium. Both deserve more than ordinary illumination.
The Mitras LX8 integrates state-of-the-art technology in a sleek, modern package and adds an accent with a soft Ambient Glow — complementing the room around your tank, not competing with it.
High power density, up to 12 color channels, wide spectrum, and best-in-class connectivity. Sounds interesting? Read on — it gets even better.
The LX8 comes in two finishes — deep black or bright white/silver. Both share the same precision-machined aluminum housing and identical optical, thermal, and electronic architecture.
Choose from 3 models
Optimized for real use cases
Different aquariums need different light. The Mitras LX8 comes in three models with different baseline spectra — same hardware, different LED population, each tuned for a specific use case. Up to 12 independent channels and ample power reserves let you customize the spectrum across a wide range.

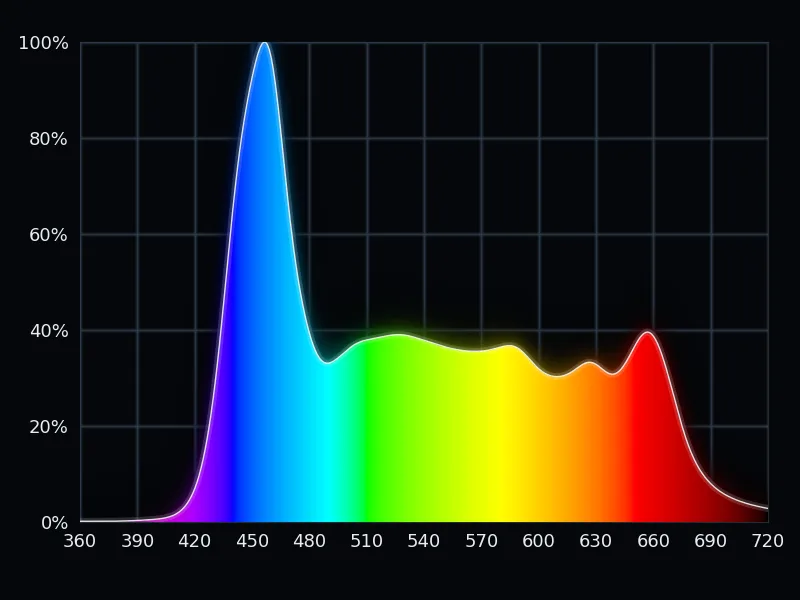

LX 8006
Freshwater. Tuned for plant photosynthesis and fish coloration across the full visible range. 4 different white temperatures form a natural daylight base, with red and hyper-red components feeding chlorophyll, plus accents in blue and the mid band. Widely adjustable from warm to cool daylight.
LED-Setup per fixture – 12 channels
Deep blue
6
Royal blue
12
Blue
6
Cyan
6
True green
6
Yellow
6
Red
6
Hyper red
12
Cold white
18
Cool white
18
Daylight white
18
Neutral white
18
LX 8206

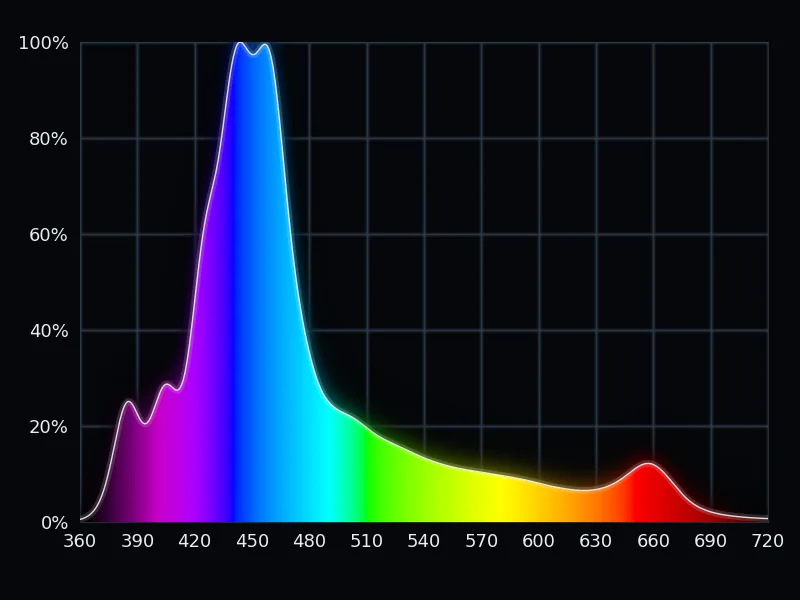

Marine. A reef-tuned spectrum balanced across the full visible range — from sub-370 nm UV to near-IR. A strong accent between UV and light blue drives coral coloration, while substantial whites keep fish in full color. Widely adjustable between bluish-crisp and brighter, more open daylight.
LED-Setup per fixture – 12 channels
UVA 385 nm
6
Hyperviolet 2 (405 nm)
6
Hyperviolet 1 (425 nm)
12
Deep blue
24
Royal blue
24
Blue
12
Cyan
6
True green
6
Hyper red
6
Cold white
12
Cool white
12
Daylight white
6
LX 8506

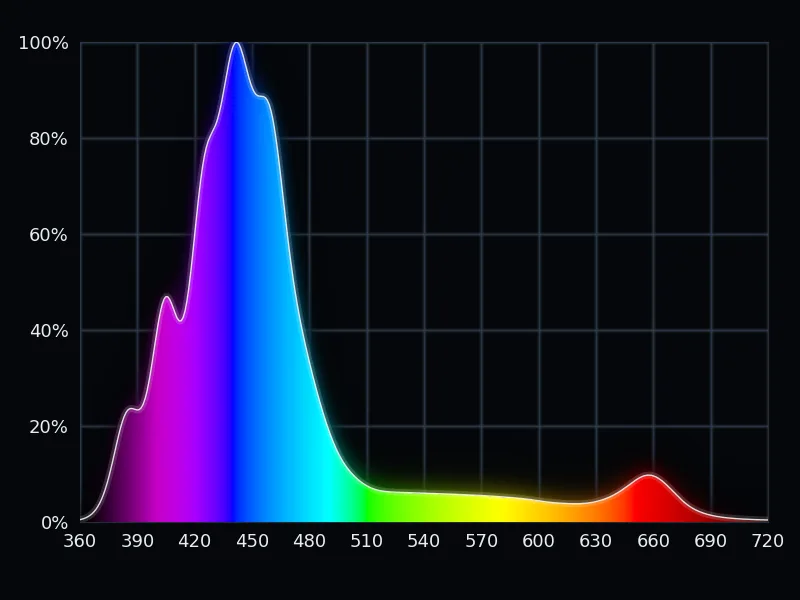

Coral Pop. A blue- and violet-heavy spectrum engineered for the strongest fluorescence response. Starting below 370 nm and spanning the visible range, with a pronounced concentration in the UV-to-deep-blue region. Widely adjustable from full actinic to a brighter, balanced look — fluorescence stays intense throughout.
LED-Setup per fixture – 10 channels
UVA 385 nm
6
Hyperviolet 2 (405 nm)
12
Hyperviolet 1 (425 nm)
18
Deep blue
30
Royal blue
24
Blue
18
Hyper red
6
Cold white
6
Cool white
6
Daylight white
6
Incredible light spread
PAR diagram shows light distribution of the LX 8206 in air at 60 cm (24″) mounting distance, all channels at 100%. Results in water depend on water clarity.
This wide, even coverage isn’t just a function of raw LED output. The six clusters sit as far apart as the active surface allows — pushed to the edges of the fixture — while multi-LED reflectors focus each LED’s beam straight down. The geometry does as much work as the 250 W behind it.
The Mitras LX8 delivers an SPS-suitable PAR level of 200 µmol/m²/s or higher across a circular area of approx. 95 cm in diameter. For LPS corals and mixed reef setups, the area receiving 100 µmol/m²/s or more extends to approx. 125 cm in diameter.
Genuinely flicker-free.
Every photo, every video, every glance into your tank — perfectly constant light, with no flicker at any brightness.
Constant current — no PWM, no pulsing
½
Of rated current
Average operating point per LED.
>100 000 h
LED lifetime (L80)
Engineered for the long run.
Auto
Power balancing
Set freely. The LX8 keeps balance.
More Growth per Watt
Here’s what’s actually behind the LX8’s efficiency: 132 premium LEDs, well below their rated current — less heat, more lumens per watt, longer lifetime. Twelve individually tunable channels let you match the spectrum to your aquarium and to your eye. Result: less wasted energy, more growth — and a tank that looks the way you want it.
Flexible Control
Alongside the integrated WiFi, the Mitras LX8 has a dedicated radio link for Mitras-to-Mitras communication. Three operating modes for any setup:
- Standalone — full functionality on its own.
- Master — controls one or multiple fixtures from a single point.
- Slave — follows a Master LX8 or integrates into a ProfiLux ecosystem.
Tailored Light Spectrum
Twelve (ten in Coral Pop version) individually adjustable LED channels plus a dedicated moonlight channel — each driven by true flicker-free analog dimming. The high internal resolution gives you tiny 0.025% steps per channel, with smooth transitions across the entire intensity range.
Smart Cooling — Silent
Two large fans move air gently across a heatsink that spans the entire footprint of the LX8 — both so generously dimensioned that the fans can spin slowly. Temperature-controlled and always at the lowest possible speed, they deliver quiet operation.
Should ambient conditions ever become extreme, brightness is smoothly reduced as an added safeguard — preserving full LED lifetime and performance.

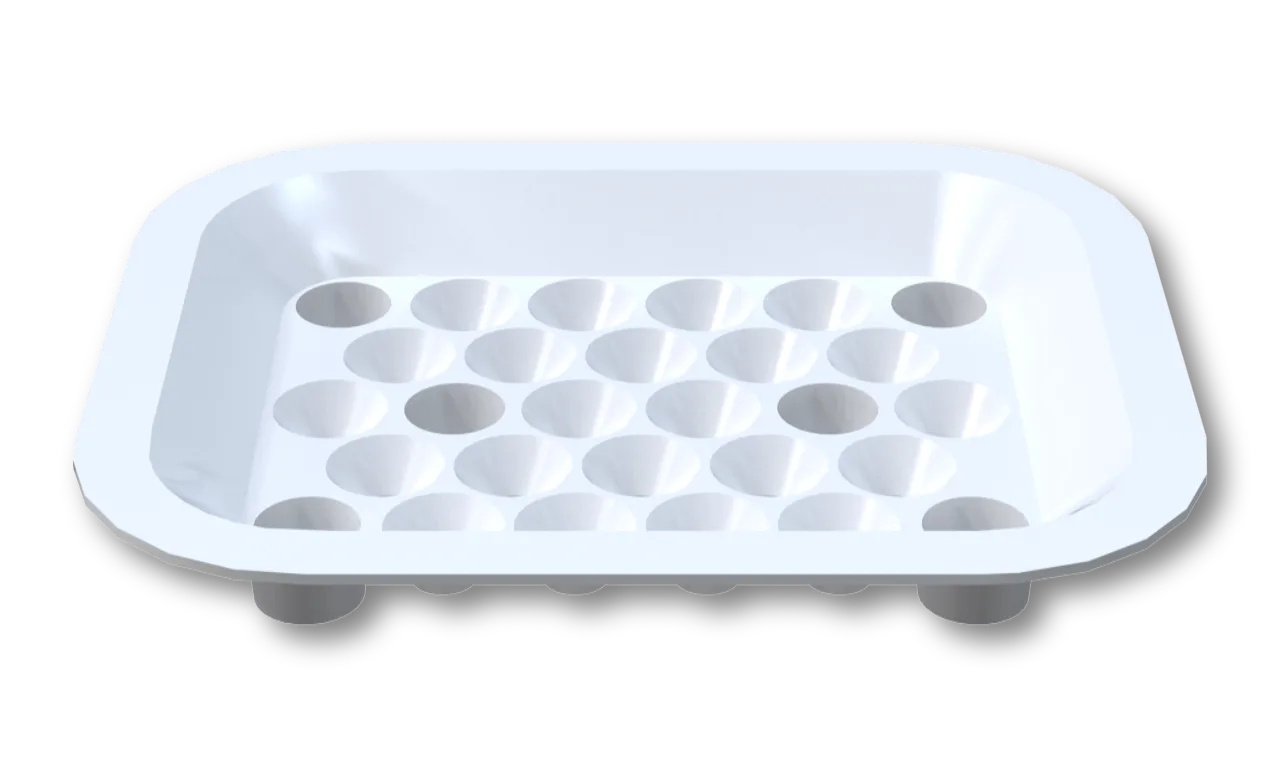

Proprietary Reflectors
The Mitras LX8 features GHL’s Total Reflection and Diffusion Technology (TRDT™). Each LED sits in its own microreflector. The high-performance reflector material achieves near-100% reflection and diffusion, this precision-engineered system delivers exceptional optical performance — an optimal balance between light spread and penetration depth that clearly outperforms traditional secondary optics, particularly lenses.
The result: flawless, uniform color blending across the entire illuminated area.
Interchangeable LED Clusters
Stay ahead with Mitras luminaires, designed for effortless upgrades.
Swapping LED clusters is quick and easy, allowing you to take advantage of the latest advancements in lighting technology.
Want to convert an LX8006 to an LX8206, or step up to a future LED generation? Simply switch the clusters.
Illuminate every Corner
Each of the LX8’s six clusters packs 22 LEDs onto a 45 × 32 mm footprint — just millimeters between colors. Mixing happens right at the source, refined by TRDT reflectors. Homogeneous light without a diffuser.
The clusters themselves sit as far apart as the active surface allows — pushed to the edges of the fixture. Wider spacing means more uniform PAR across the tank, and the focused cluster beams overlap into the natural shimmer of open water.
Latest LED Generation
The LX8 uses the latest generation of high-power LEDs — sourced across multiple leading manufacturers and selected per color: best-in-class blues from one supplier, best UV diodes from another, best whites from a third. Every LED is then individually binned for output and color consistency, so each cluster delivers the same spectrum and the same brightness.
Natural effects
The LX8 reproduces the natural light with a variety of customizable simulations:
- Sunrise & Sunset — smooth East-to-West transitions across multiple LX8 fixtures
- Gliding Clouds — passing clouds drift naturally over the tank
- Seasonal Lighting — intensity and day length follow the seasons
- Thunderstorm — dramatic effects with realistic timing
- Lunar Cycle — moonlight intensity follows the natural lunar cycle
- Rainy Days — overall brightness reduced to simulate darker days
- Acclimation Mode — gradual ramp-up for new tanks or freshly added corals
Full connectivity
Local-first by design. Cloud when you want it.
Built-In WiFi
Full network support
GHL Connect
iOS / Android
myGHL Cloud
Connect from Anywhere
USB
Your Backup
WiFi is built in. Control the LX8 from the GHL Connect app on iOS or Android, from any browser via the built-in web server, from a PC through GHL Control Center, or from anywhere in the world via the optional myGHL cloud service — simultaneously, no extra hub or bridge required.
Every user interface works directly on your home network without an internet connection. The cloud is there when you want remote access; never required when you don’t.
A dedicated radio for fixture-to-fixture communication. Multi-LX8 installations and ProfiLux integration run on their own band — staying perfectly in sync without competing with your home WiFi for bandwidth.
OTA firmware updates roll out wirelessly. USB stays on board as a backup path.

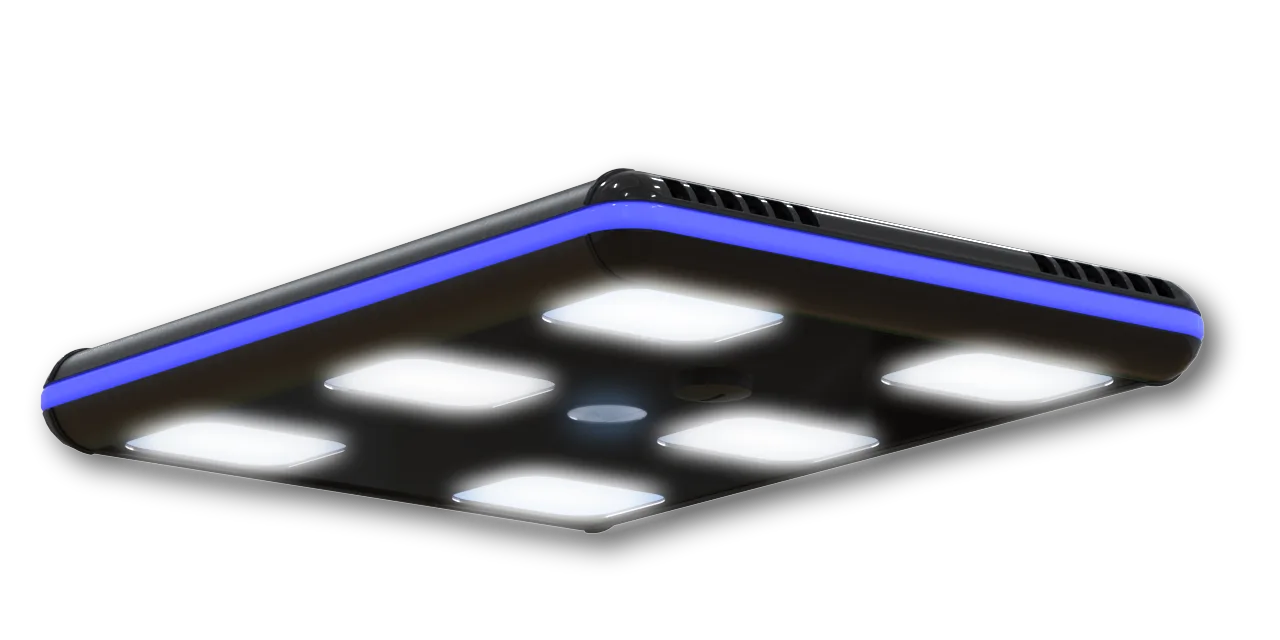

Ambient Glow
A continuous RGB light strip wraps the entire perimeter of the LX8 — adding visual character to the luminaire and a soft glow to the room around your tank. Four modes:
Ambient — the strip color tracks the average color of the main LEDs, mirroring the mood above your tank
Constant — pick any color and intensity to match your room
Status (with ProfiLux) — see at a glance whether the system is running normally, dosing, or in an alarm state
Off
Brightness and active hours are configurable in every mode.
Powerhouse at Work
The Mitras LX series reliably lights thousands of private aquariums year after year, alongside public aquariums, coral-spawning and aquaculture facilities worldwide. It is designed and built to meet the requirements of professional and private users alike.
The leading light performance of the Mitras LX — high output and efficiency, fine-tunable spectrum covering the entire relevant wavelength range, uniform and wide spread — combined with the best connectivity options and most software features, makes it the first choice for every application.

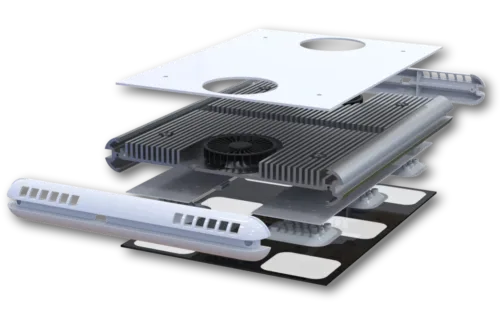

Architecture
The Mitras LX 8 brings compact form, high power, and thermal efficiency together in a modern, unobtrusive design. The heatsink doubles as part of the housing — radiating additional heat through its outer surfaces.
Total Reflection. Total Diffusion.
TRDT — engineered for uniform color blend.
The Mitras LX8 features GHL’s Total Reflection and Diffusion Technology (TRDT™). Each LED has its own microreflector, nestled within a larger field reflector.
The reflector material reflects and diffuses light at nearly 100 % efficiency. Combined with the precision-engineered design, the result is exceptional light performance — a uniform blend of colors without the distracting “disco effect” common in other brands.
TRDT achieves an optimal balance between light spread and immersion depth — outperforming traditional secondary optics, particularly lenses.
The reflector material reflects and diffuses light at nearly 100 % efficiency. Combined with the precision-engineered design, the result is exceptional light performance — a uniform blend of colors without the distracting “disco effect” common in other brands.
TRDT achieves an optimal balance between light spread and immersion depth — outperforming traditional secondary optics, particularly lenses.
Mounting Options

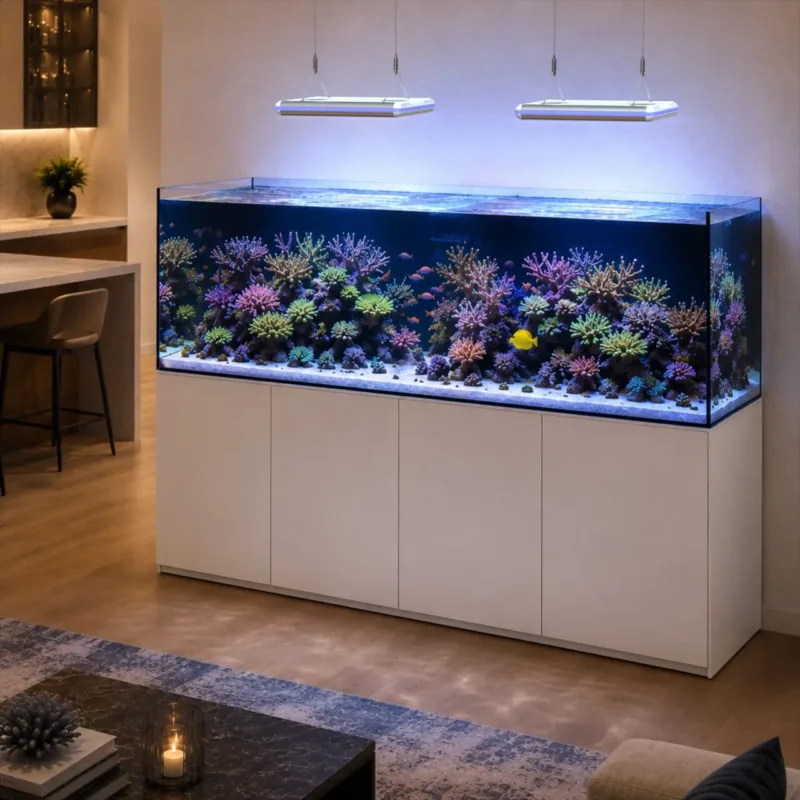

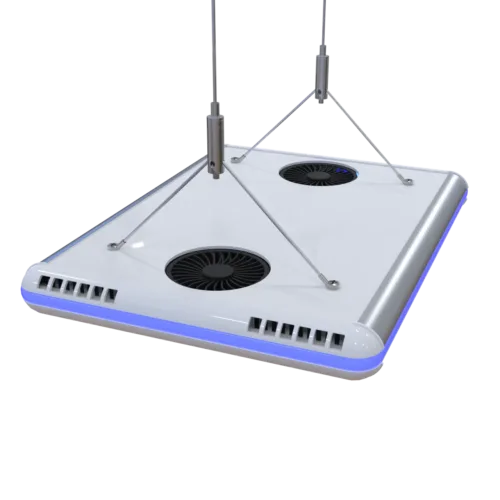

Hanging Kit
For minimalistic ceiling mounting, height adjustable.

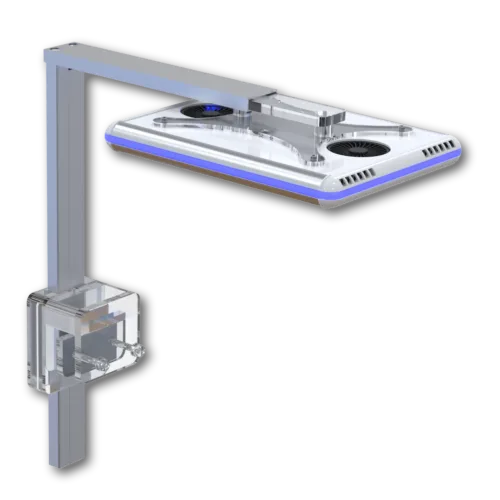

Mounting Arm
Clamps to the tank rim, height and depth adjustable.

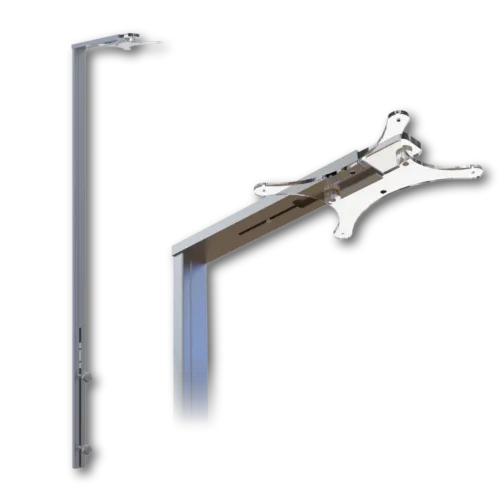

Flexmount 3
Attaches behind the cabinet, height and depth adjustable.
Technical Data
| Max. Fixture Power | Max. Power Consumption |
|---|---|
| 250 W | 270 W |
| Luminaire | Power Supply | |
|---|---|---|
| Dimensions (L x W x H) | 312 mm × 232 mm × 33 mm 12.3″ × 9.1″ × 1.3″ |
165 mm × 66 mm × 37 mm 6.5″ × 2.6″ × 1.4″ |
| Weight | 2.1 kg / 4.6 lb | 0.8 kg / 1.7 lb |
| Cable length | ca. 3 m / 118.1" to power supply | about 2 m / 78.7" to wall outlet |
Scope of Delivery
The following items are included:
- Efficient wide range power supply IP 67 with lockable safety plug
- Power Cord
- USB Cable
Mitras LX8 may not be used in a closed aquarium below a cover. The clearance between water surface and Mitras LX8 must beat least 20 cm (7.9″).
If you are looking for a luminous and powerful alternative for built-in or closed aquariums, we recommend our LED Light Bar Mitras Lightbar.
