The Professional Lighting Control with many Smart Extra Functions.

Achieving natural lighting conditions in your aquarium has never been easier.

The compact aquarium controller Profilux Light offers many familiar features found in the proven high-end ProfiLux 3 and 4 series, all at an attractive price.

ProfiLux Light can control dimmable and non dimmable lighting, variable speed flow pumps, and much more. It can also be operated via USB with the PC-software GHL Control Center, which is available free of charge.

The new ProfiLux Light WiFi variant also has integrated WiFi and can therefore also be operated via GHL Connect (app and web interface) and the myGHL cloud service. With the optional available ProfiLux Mini/Light-Adapter (SKU PL-2024) ProfiLux Light WiFi can also be connected to level sensors (for auto top off and automatic water change) and a GHL automatic feeder*.

The ProfiLux Light automated lighting control function provides you with unique lighting features. When combined with our dimmable luminaires (LED and T5/T8)fascinating light scenarios can easily be made.

ProfiLux Light gives you the option to adjust your illumination settings and fully automate your lighting fixture for day to day functions such as Sunrise/sunset, Cloud cover, Rainy days, Tropical dawn, Calendar-based moonlight simulation, Seasonal lighting, or Thunderstorm simulation.

Operation of the ProfiLux Light is simple and intuitive. All settings are user friendly and guided by interactive dialog. No programming skills required here!

The ProfiLux Light is easily accessible using the keypad and graphical display on the device.

We offer regular firmware updates to ensure that your ProfiLux remains future proof and is always up to date.

ProfiLux Light is designed for wall mounting and is available in two elegant colors: Glossy White or Glossy Black

*) Automatic feeder available soon

h

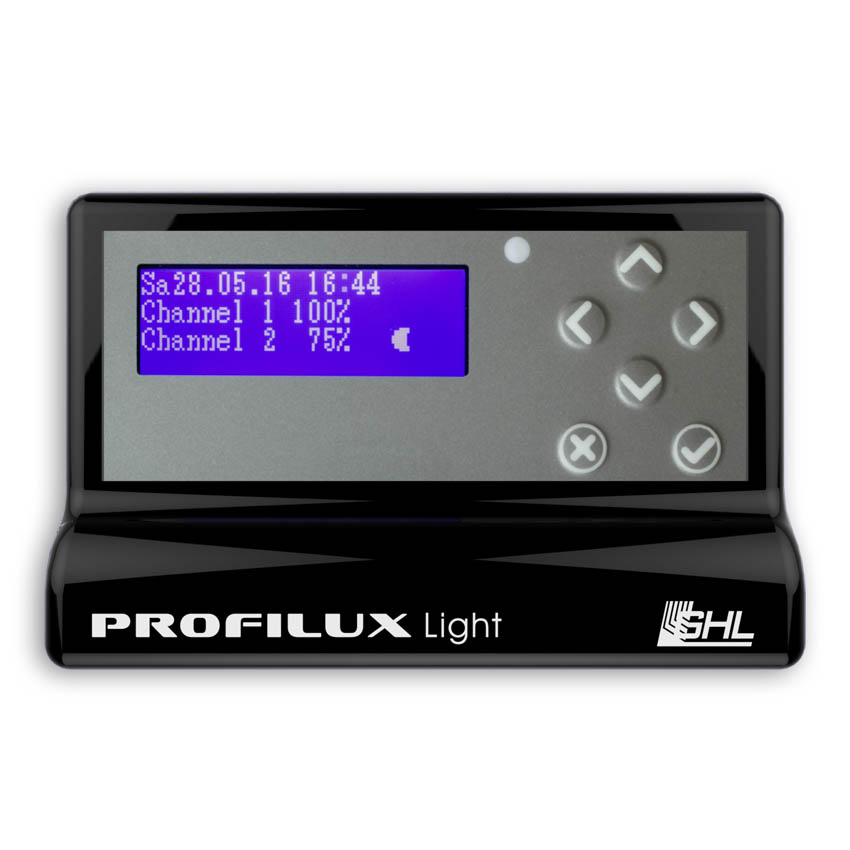

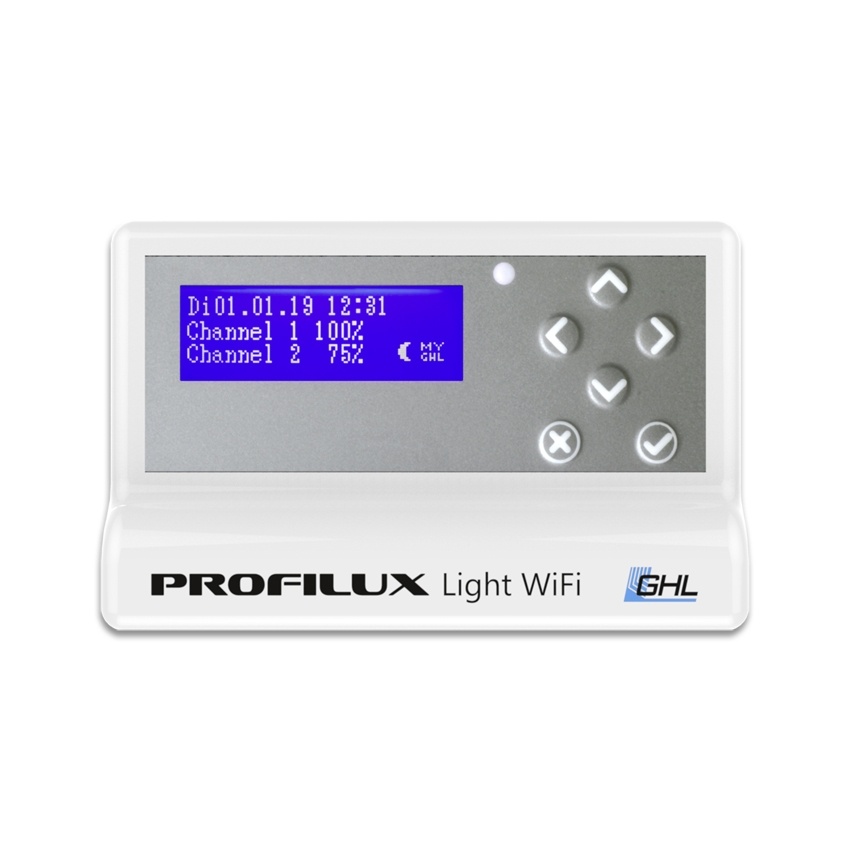

Profilux Light and ProfiLux Light WiFi are each available with white or black high-gloss housing

h

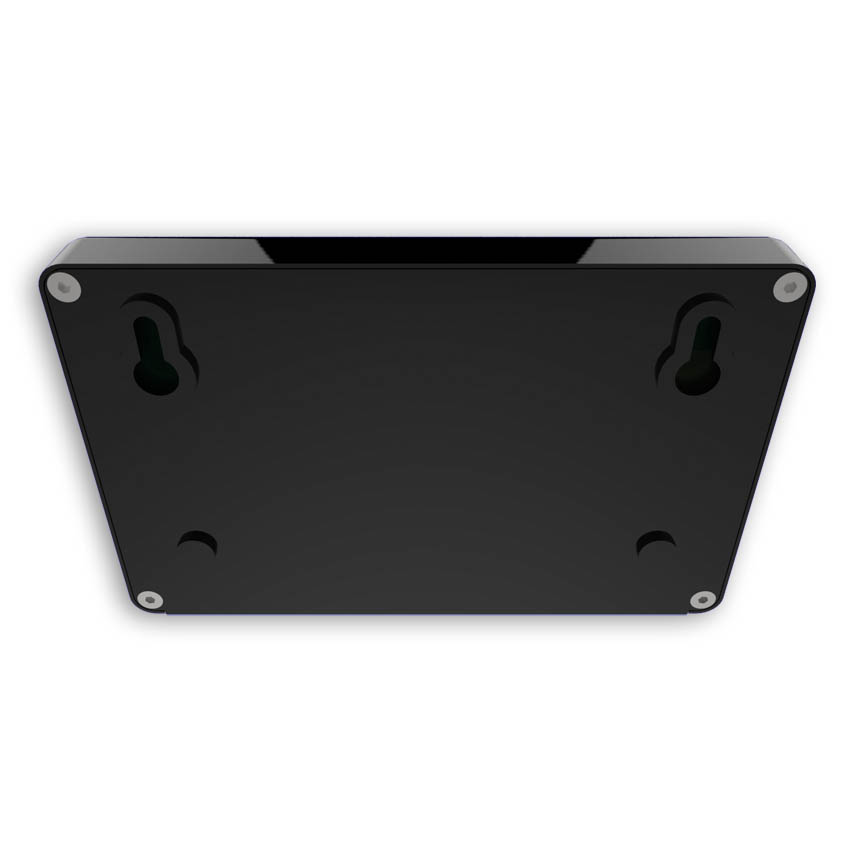

ProfiLux Light Black Rear

Profilux Light is designed for wall mounting

Features of ProfiLux Light

  • 4x 1-10 V Interfaces for connection of dimmable/non dimmable lights or controllable stream pumps
  • Digital light control interface for Mitras Lightbar and compatible lamps
  • Connection for Powerbar STDL-4-4
  • Audible and visual alarm
  • Safe 12V low voltage operation
  • Illuminated blue graphical display and keypad
  • USB Port

Additional features of ProfiLux Light WiFi

  • Integrated WiFi
  • Connection option for level sensors and GHL automatic feeder
Did you know that you can not only regulate pH and temperature but also control variable speed stream pumps using the 1-10 V interface ports on your ProfiLux Mini?

Functions of ProfiLux Light

  • Simple and intuitive menu-driven operation
  • Extensive lighting control:
    – 16 dimmable channels
    – Simulation of Moon phases, Thunderstorms, and Cloud cover
    – Acclimation program
    – Weekday-dependent programs
  • Control of variable speed current pumps via 1-10 V outputs
  • Feeding Pause and maintenance program
  • Adjustable reminders
  • Universal timers and dosing programs
  • Child protection via PIN code
  • Settings are stored during power loss in nonvolatile memory (EEPROM)
  • Operation via convenient PC software (Free of charge)
  • No coding required
  • Virus proof and specially for aquatics developed operating system ProfiLuxOS by GHL

Additional functions of ProfiLux Light WiFi

  • Operation via GHL Connect (app and web interface) and Cloudservice myGHL
  • Level control
  • Automatic water change
  • Control GHL automatic feeder

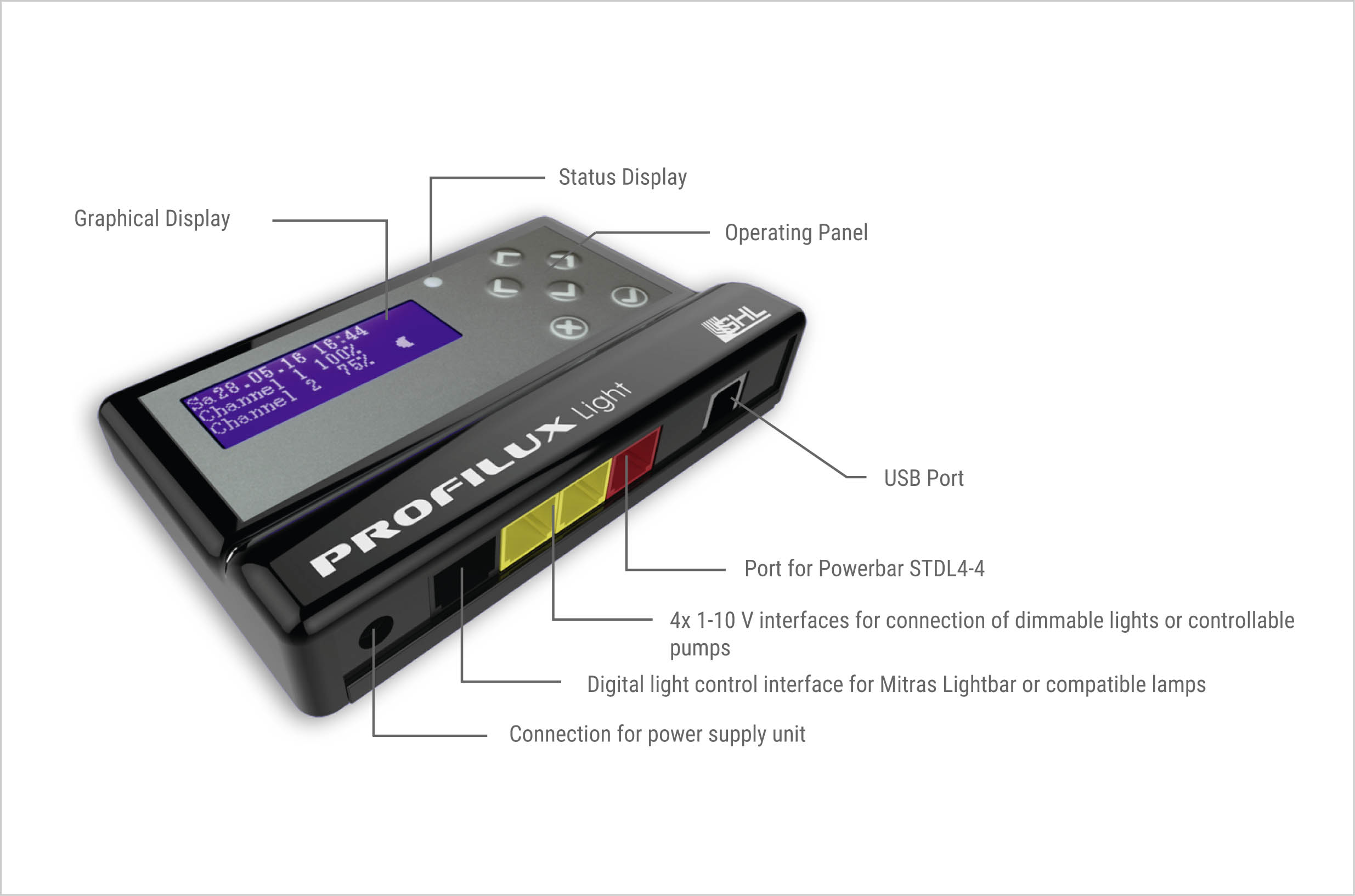

Connections of ProfiLux Light

ProfiLux Light Connections

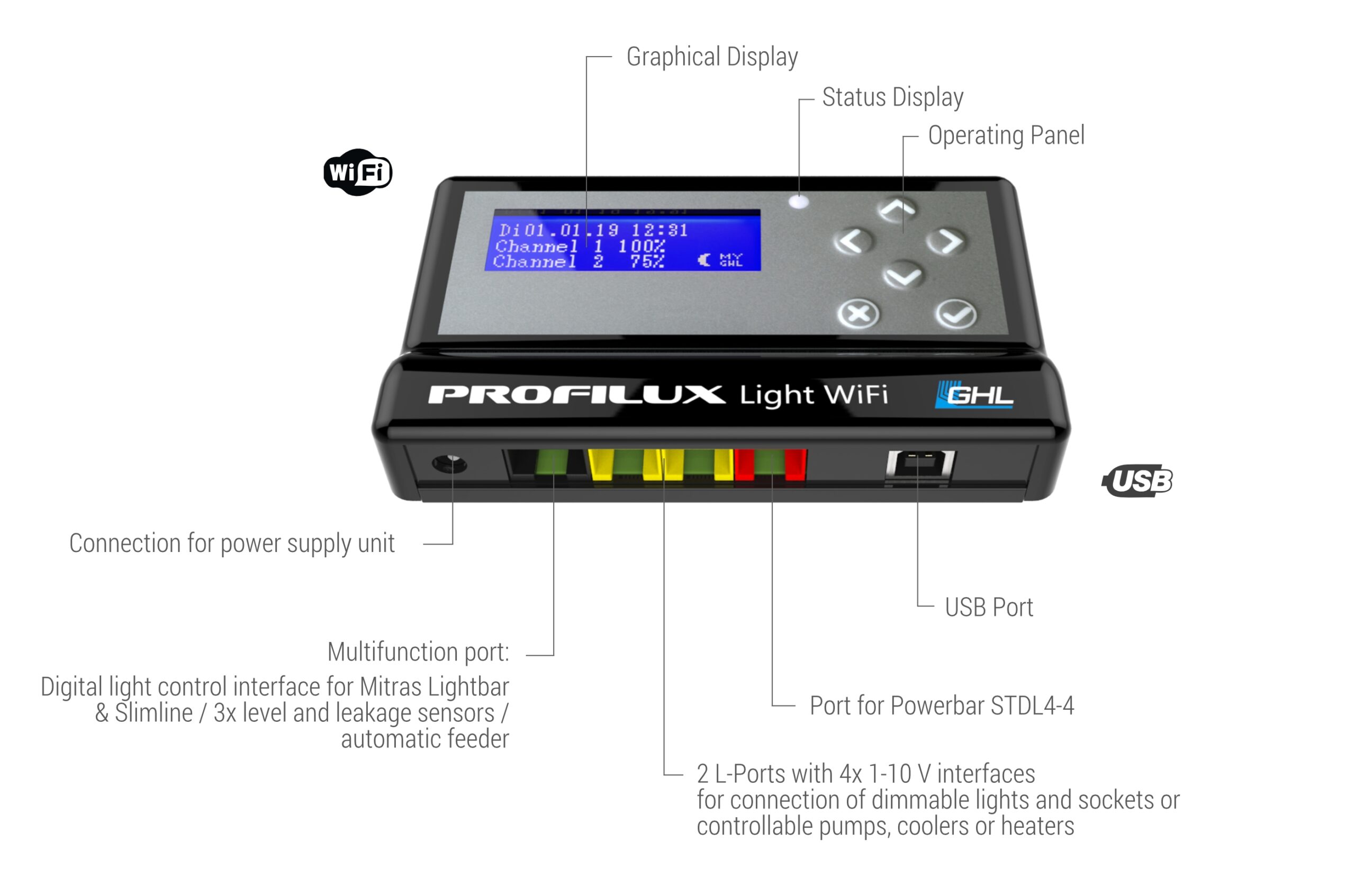

Connections of ProfiLux Light WiFi

h

Features of the ProfiLux Light (WiFi) at a glance

General
Dimensions W x D x H: 130 x 85 x 25 mm
Delivery inclusive Power Supply Unit, USB Cable
Functions and FeaturesProfiLux LightProfiLux Light WiFi
Illumination channels1616
1-10 V interfaces44
Controllable, separately switchable Sockets 44
Dosing pump control
Stream Pump Control
USB interface
Graphical display
WiFi-
Controls GHL automatic feeder-√ (accessory required)
Inputs for level sensors-3 (accessory required)
Operating System ProfiLuxOSProfiLuxOS
Measurement and controlProfiLux LightProfiLux Light WiFi
Level-√ (accessory required)
Automatic water change-√ (accessory required)

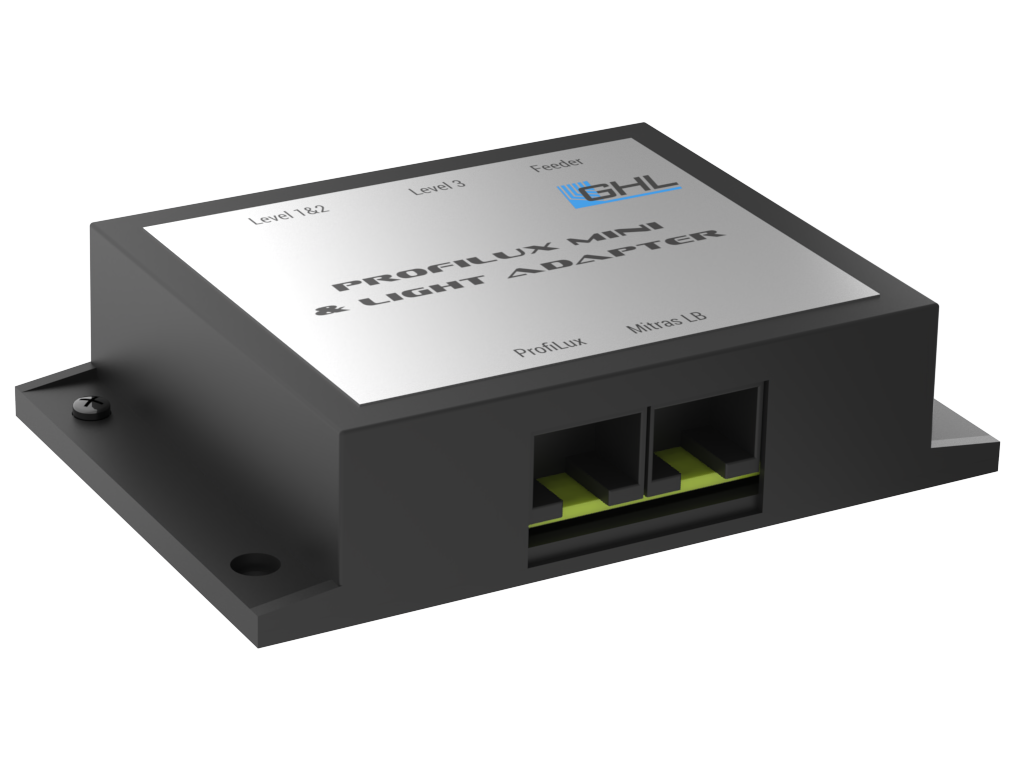

ProfiLux Mini/Light-Adapter

For connecting 3 level or leakage sensors and GHL automatic feeder to a ProfiLux Mini WiFi or ProfiLux Light WiFi.
