The New Mitras LX7 Series

We are proud to present our new High-Power LED fixture: The Mitras LX7 series!

Now accepting pre-orders – SPECIAL PRE-ORDER PRICE until November 13, 2016 only!

Mitras LX7 black & silver-white


Mitras LX7 Series: Taking high-power LED lighting to the next level

Built on the basis of the legendary Mitras LX6 series, the LX7 offers perfectly matched LEDs to provide the most complete spectrum available. The LX 7 comes in a sleek and modernized design and offers unmatched light output, superior color blending, and extreme light spread. We’ve implemented even the smallest of details to make the LX7 the most powerful and energy efficient LED fixture on the market.

Here a quick overview, read all details are on the product page.

Mitras LX7 features:

  • Ultraviolet LEDs (385nm) give you even better colors and growth for demanding corals (marine water variant only)
  • Built-in WiFi module
  • myGHL cloud compatible
  • Adjustable performance distribution using GHL Power Balancing Technology

Additional features carried over from the LX6 series:

  • Wide and even light distribution without the “disco effect”, an effect commonly found in many other LED lights
  • High-performance reflectors with 99% reflection and high diffusion to minimize light loss from spreading and ensure superior color mixing; these reflectors were developed to outperform all LED lens designs
  • 72 (models with 6 clusters) high-power LEDs from the best binnings, exclusively from Cree, Osram, and SemiLEDs
  • Complete coverage of the relevant spectrum; Spectrum can be freely customized with 9 separately dimmable LED color channels
  • Numerous functions such as moon phase, thunderstorm, seasonal lighting, and clouds.
  • Radio module for communicating with other Mitras LX lamps or ProfiLux aquarium controllers (master / slave)
  • Easily accessible graphic display and capacitive keyboard on the side of the fixture
  • LED clusters can be exchanged individually
  • Extremely fine dimming ratio > 4000 : 1 for super smooth dimming
  • Efficient wide range power supply
  • Innovative and efficient temperature management through active and passive cooling, temperature-controlled and quiet fans
  • Designed, developed, and produced in Germany

Mitras LX7 specifications (models with 6 clusters, for example Mitras LX 7206)

  • Dimensions: 324mm x 200mm x 42mm (12.75″ x 7.87″ x 1.65″)
  • LED-power: Max. 195W adjustable distribution

All technical details about the LX7 series will be published on our website very soon.

Mitras LX7, black, bottom view

Shipping start-date

Mitras LX7 lights will start shipping November 21, 2016

Retail price Mitras LX 7206

Germany – 849.90€ (Including 19% tax)
USA – $749.90 (Plus tax, where applicable)
Please ask for prices in other countries.

Pre-orders and pre-order special

The Mitras LX 7206 is now available for pre-order at a special price until 11/13/2016:
Germany – 799.90€ (including 19% tax)
USA – $699.90 (plus tax, where applicable).
Please ask for prices in other countries.

Questions and answers

Q: Will the Mitras LX6 series still be produced?
A: Yes, Mitras LX6 is still one of the best high-power LED lights on the market and will be offered parallel to the LX7 series.

Q: Will the Mitras LX6 series still be supported?
A: Yes, we will continue to support the LX6 series and produce spare parts. The software will continue to be maintained.

Q: Can LX6 and LX7 lamps communicate with each other?
A: Unfortunately, this is not possible due to the different LED components. The LED channel assignment for each series do not match.

Q: Do the LX7 LED clusters fit into LX6 series luminaires?
A: No. Despite the number and arrangement of the LEDs being identical, the LX6 and LX7 boards have a different form factor because of different housing design.

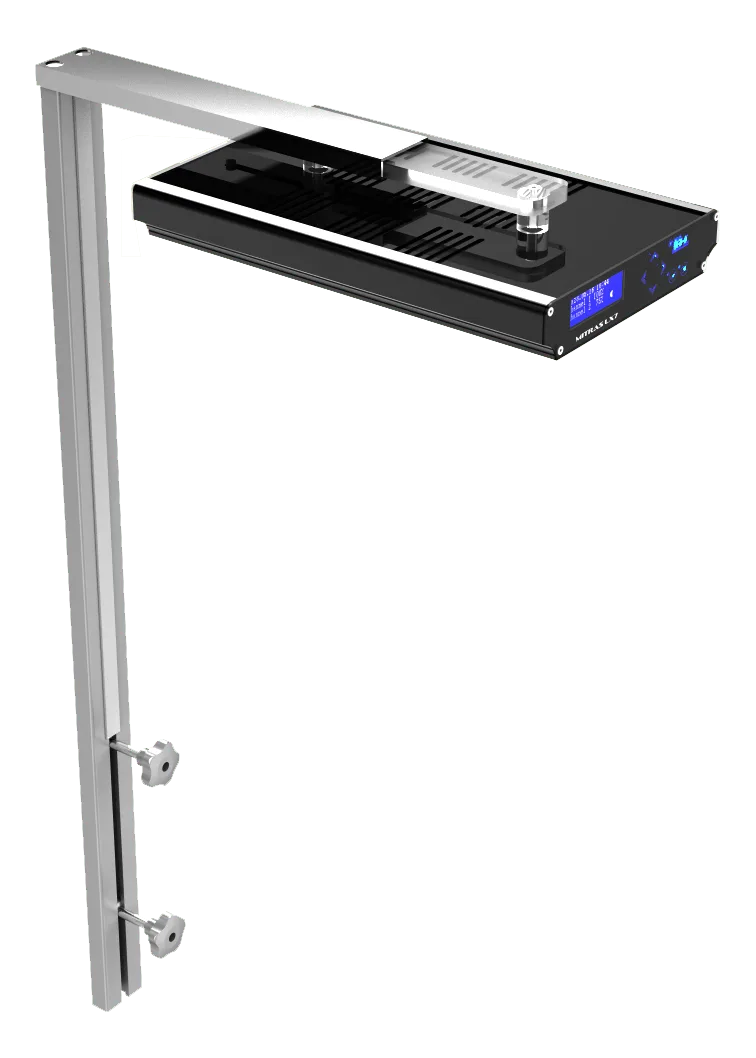

Mitras LX 7206 in black, mounted with our new fixture holder Mitras Flex Mount System – available shortly, also compatible with our Mitras LX6 series:
